ServiceNow Connector Example

The WSO2 ServiceNow connector allows you to access the ServiceNow REST API from an integration sequence. Using ServiceNow connector you can work with Aggregate API, Import Set API, and Table API in ServiceNow. You can read more about ServiceNow REST APIs from here.

What you'll build

This example explains how to use ServiceNow Connector to create records in a table and retrieve its information. Assume your organization uses ServiceNow support and you need to create an incident. In order to do that we can use the tableAPI, which is a REST API. This can be easily done using WSO2 ServiceNow connector. Whenever you need to raise an incident at ServiceNow, the above API can be called with the required information.

It will have two HTTP API resources, which are postRecord and readRecord.

ServiceNow scenario

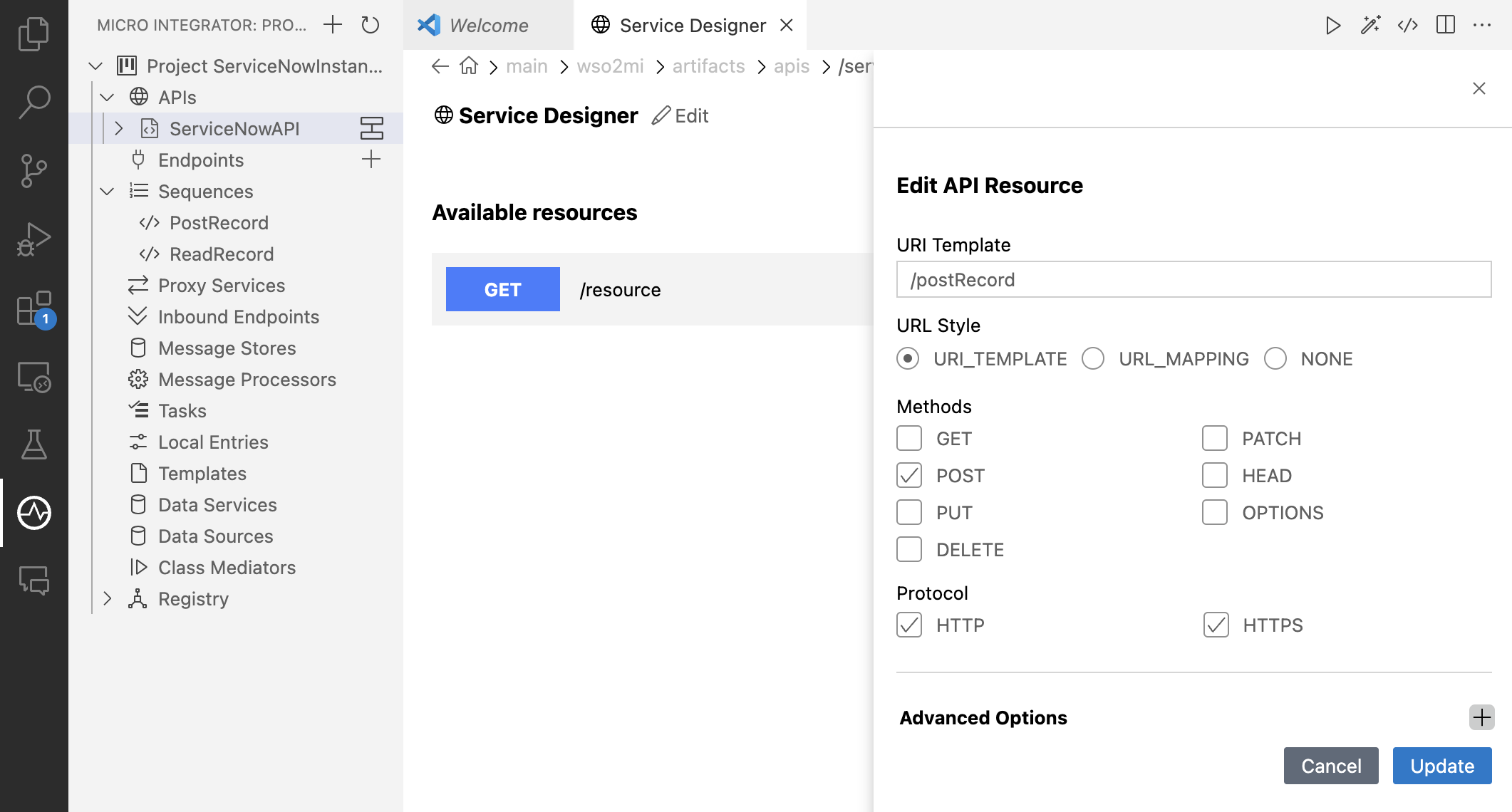

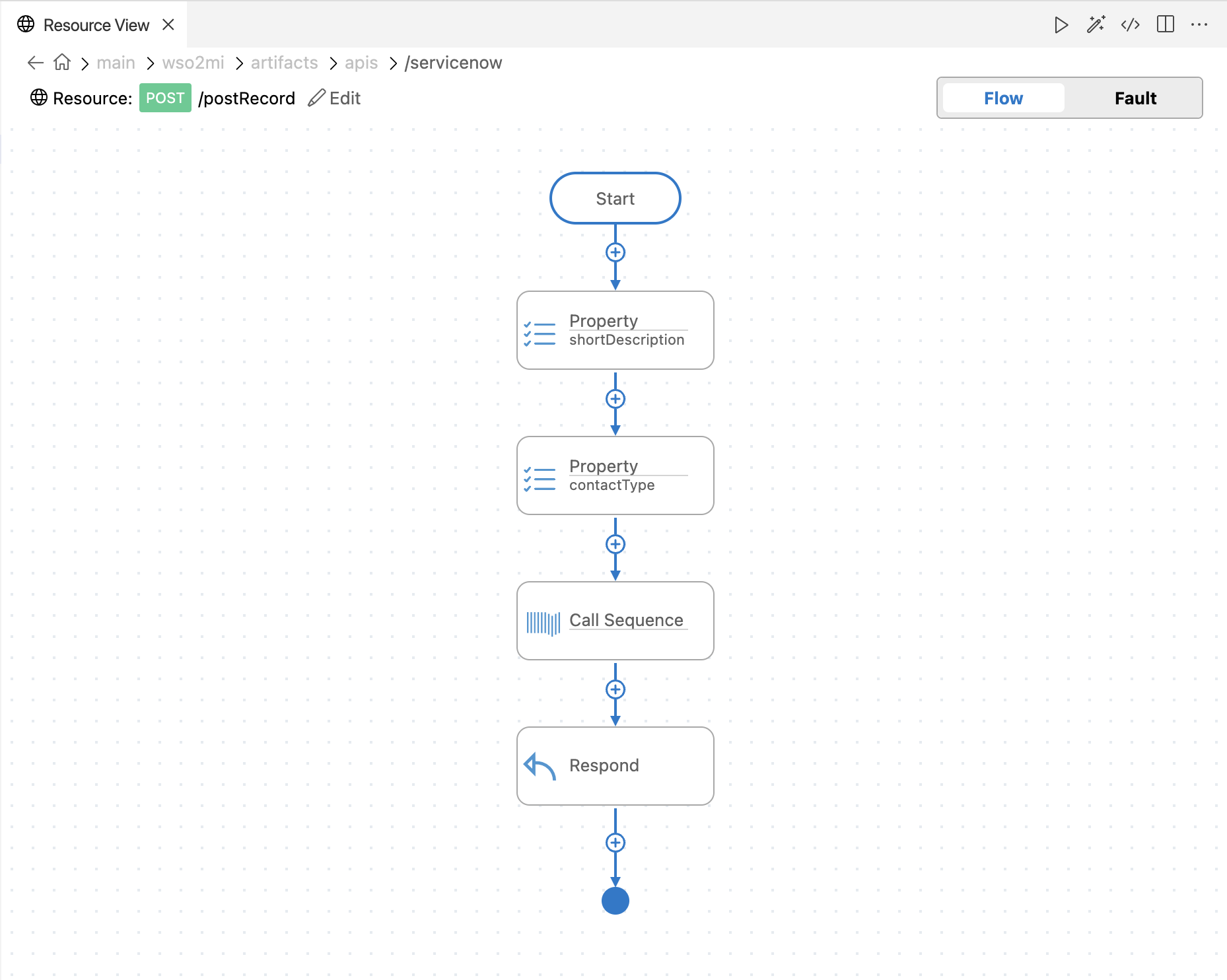

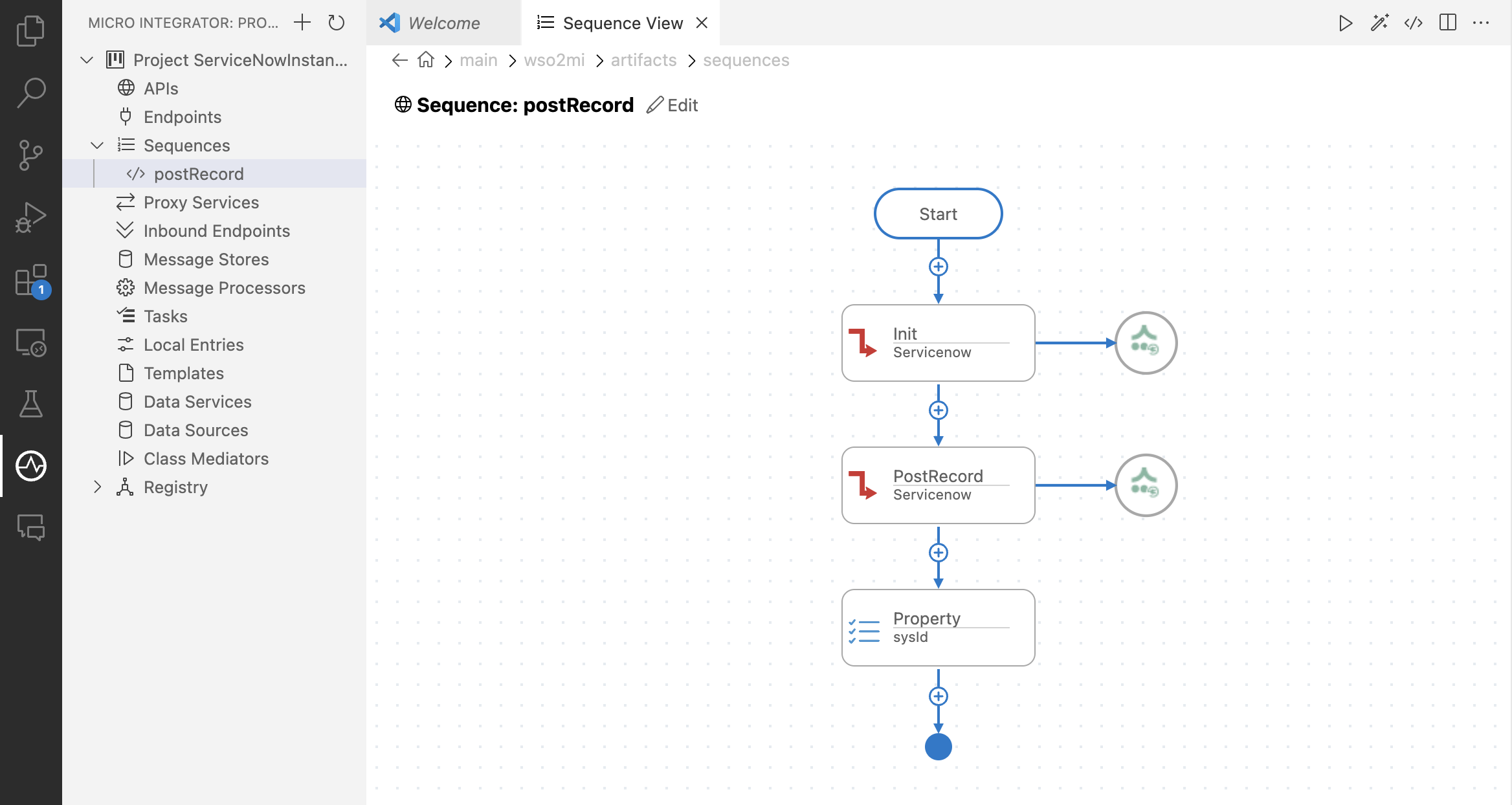

  • /postRecord: It creates a new record in the existing incident table in the ServiceNow instance.

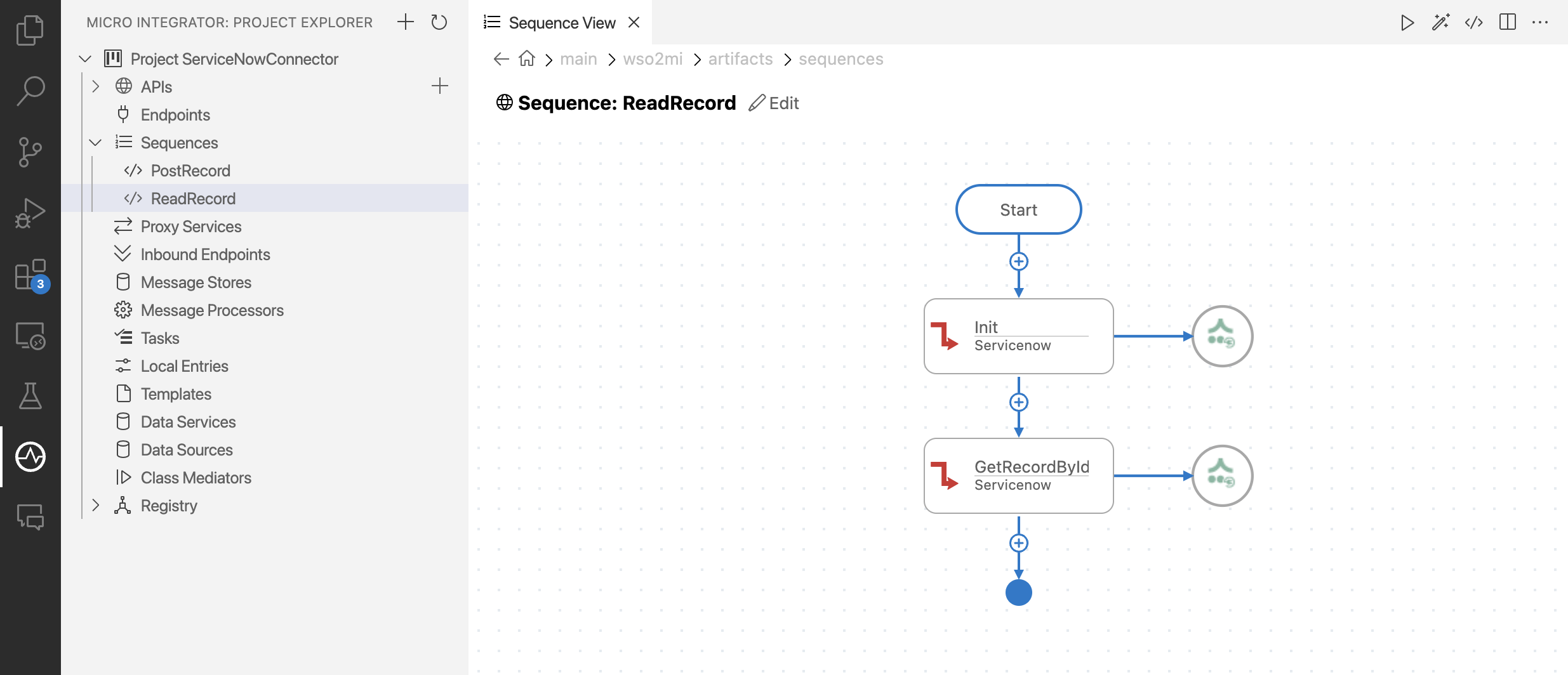

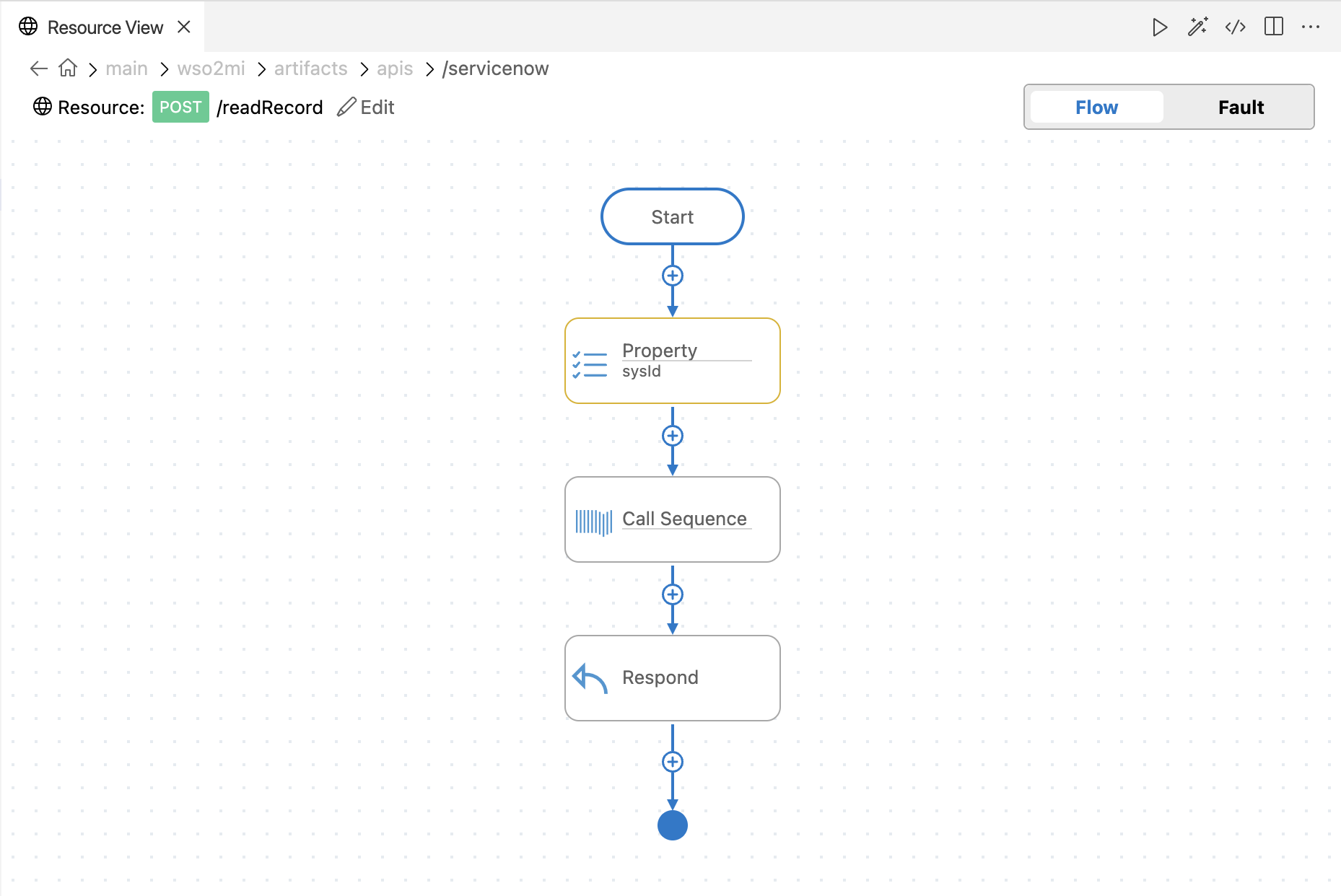

  • /readRecord: It reads the detailed information about the created incident record in the incident table.

If you do not want to configure this yourself, you can simply get the project and run it.

Set up the environment

Please follow the steps mentioned in the Setting up ServiceNow Instance document in order to create a ServiceNow Instance and obtain the credentials. Keep them saved to be used in the next steps.

Set up the integration project

Follow the steps in the create integration project guide to set up WSO2 MI and create a new integration project. Use a suitable Project Name for your integration.

Create a connection

  1. In the Design View, click the + button and select Connection.

  2. In the search bar, type servicenow and select the Servicenow Connector from the list.

  3. In the connection configuration pane, set the Connection Name to ServiceNowConnection and fill in the required details:

    • Username: The username of the ServiceNow account.
    • Password: The password of the ServiceNow account.
    • API URL: Base URL of your ServiceNow instance (e.g., https://<site-url>).

    Adding new connectio

Create an API

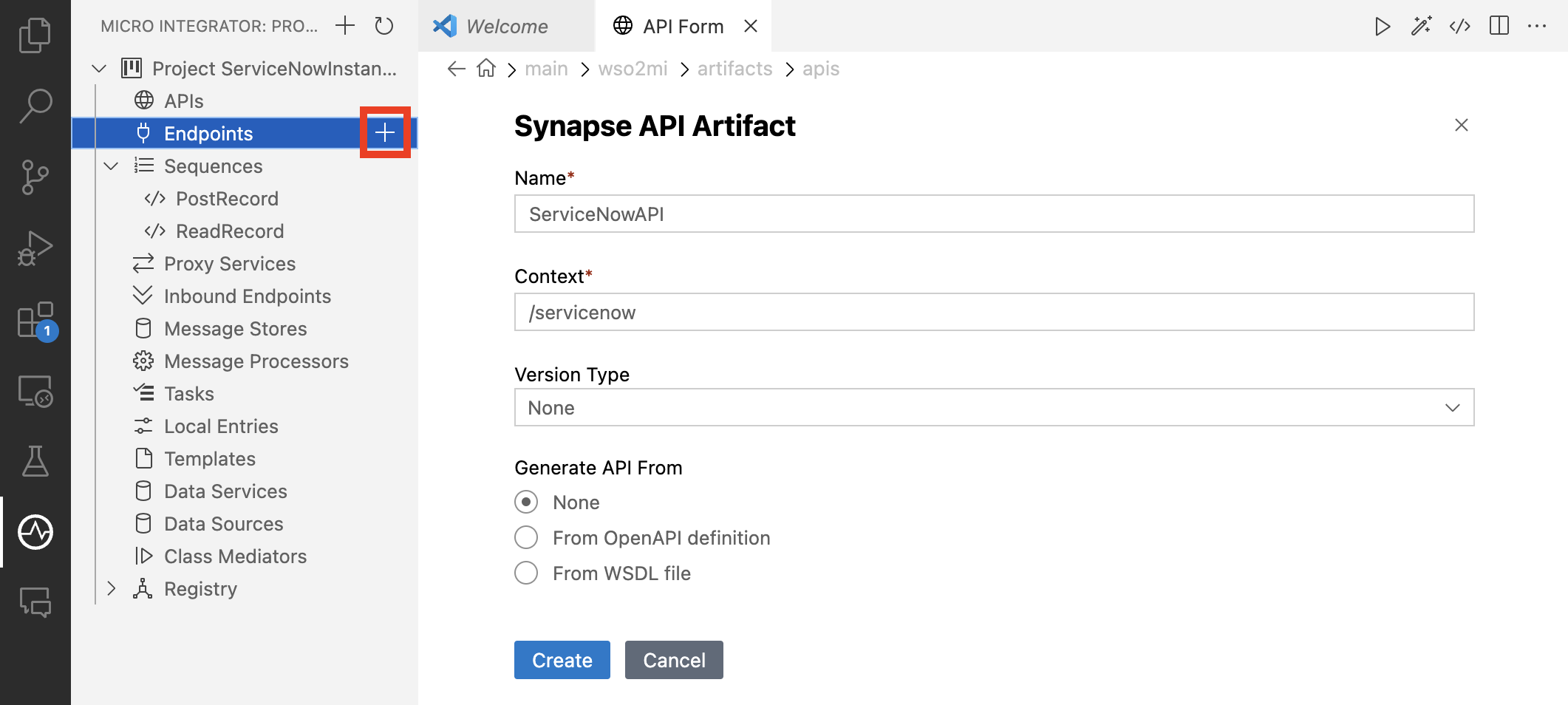

  1. In the Design View, click the + button and select API in create an integration project pane.

  2. Enter the API Name as serviceNow and the Context as /servicenow, then click Create.

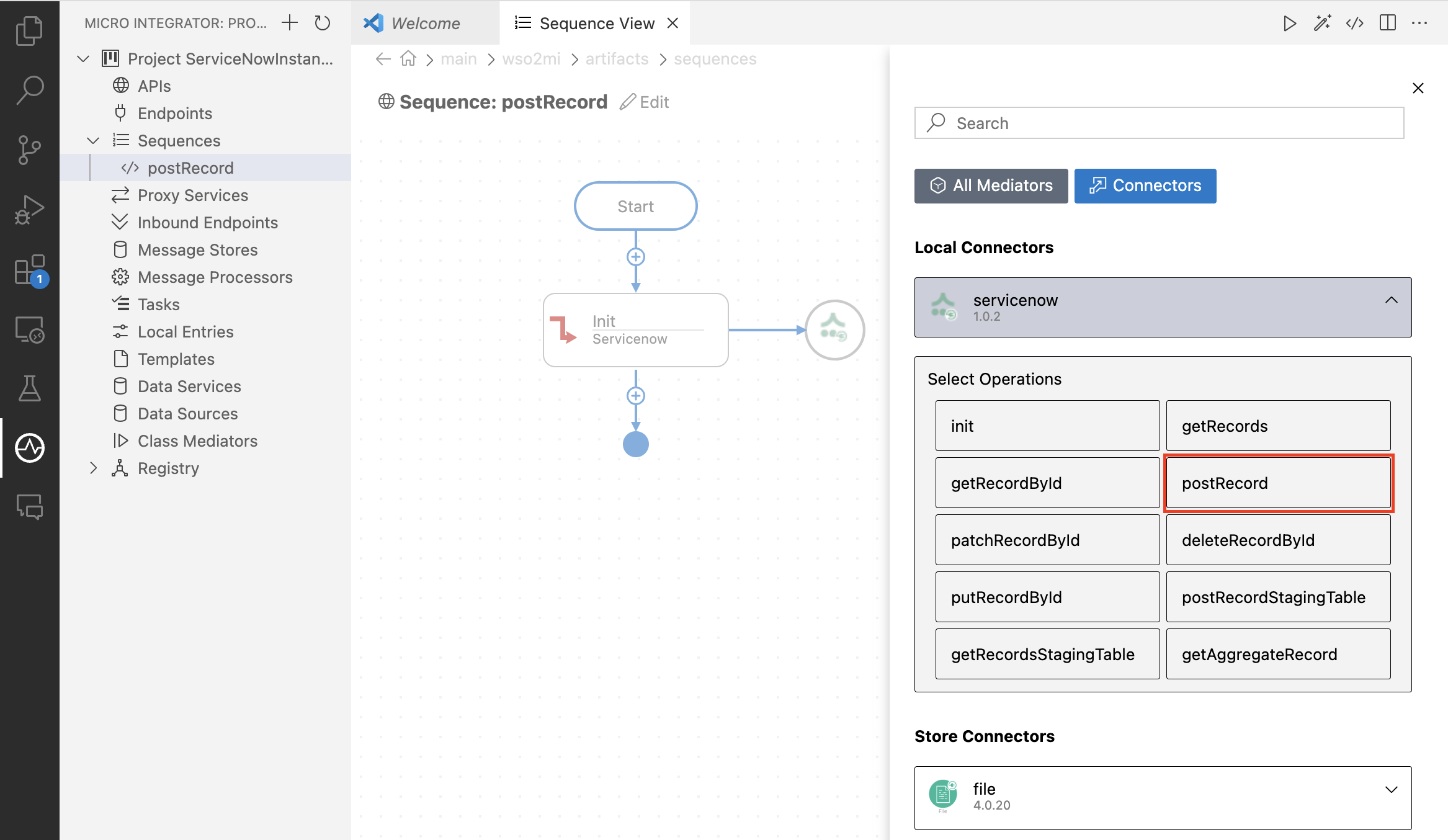

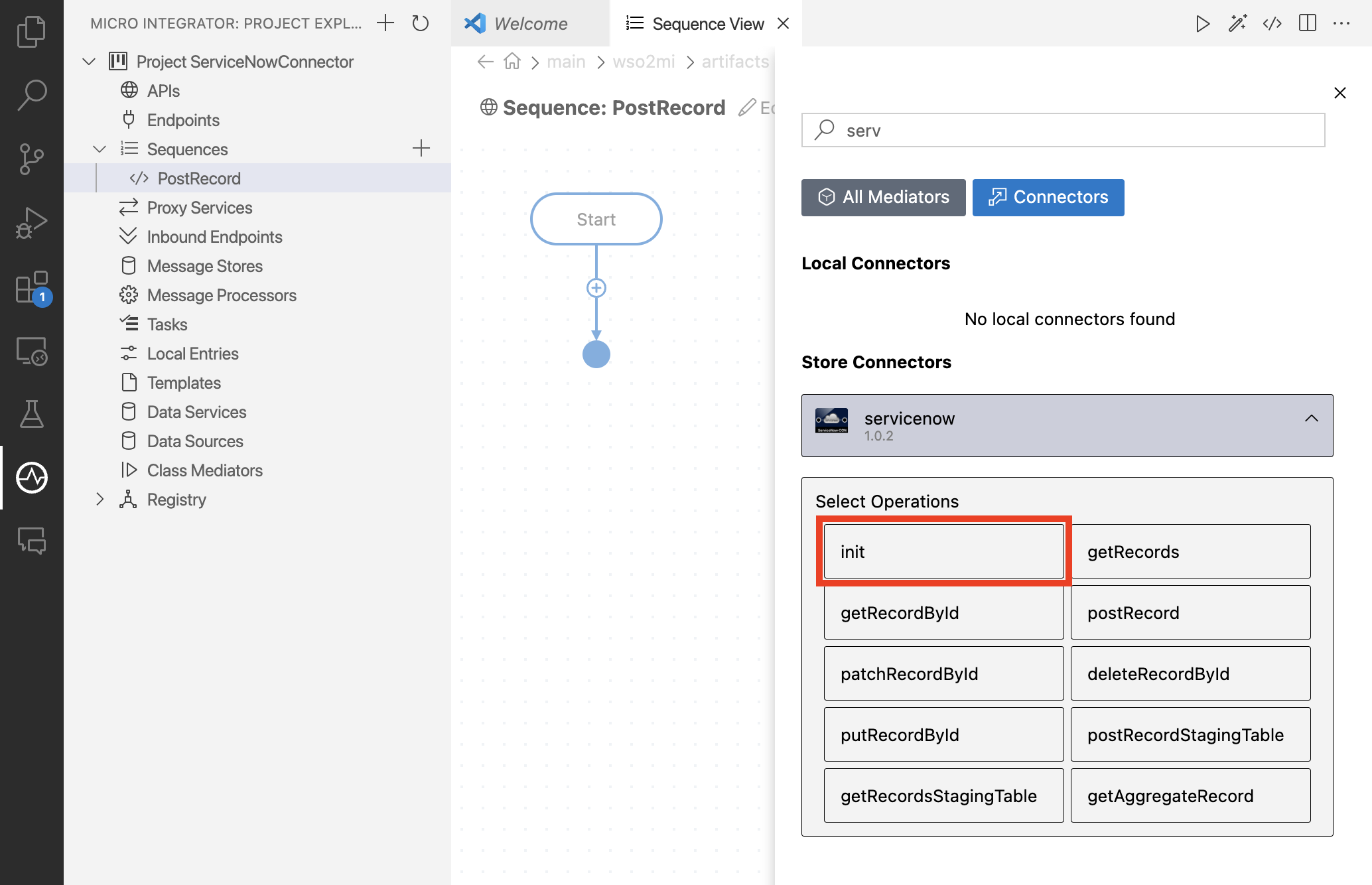

  3. To add the ServiceNow connector:

    • In the Design View, click the + button.
    • In the Mediator section, search for servicenow.
    • Select the servicenow connector and click Download.

Implement the API

  1. Go to the Source View of the API by clicking on the <> icon in the top right corner of the Design View.
  2. Copy and paste the following code in the Source View of the API.
Source view of the implemented resource
<?xml version="1.0" encoding="UTF-8"?>
<api context="/servicenow" name="serviceNow" xmlns="http://ws.apache.org/ns/synapse">
    <resource methods="POST" uri-template="/postRecord">
        <inSequence>
            <servicenow.postRecord configKey="ServiceNowConnection">
                <tableName>incident</tableName>
                <sysparmDisplayValue>true</sysparmDisplayValue>
                <sysparmFields>short_description,number,sys_id</sysparmFields>
                <sysparmView>short_description,number,sys_id</sysparmView>
                <sysparmExcludeReferenceLink>false</sysparmExcludeReferenceLink>
                <sysparmInputDisplayValue>true</sysparmInputDisplayValue>
                <number>34</number>
                <shortDescription>Incident type: L2</shortDescription>
                <active>true</active>
                <approval>owner</approval>
                <category>inquiry</category>
                <contactType>email</contactType>
                <apiColumns></apiColumns>
            </servicenow.postRecord>
            <log category="INFO" logMessageID="false" logFullPayload="true">
                <message></message>
            </log>
            <servicenow.getRecordById configKey="ServiceNowConnection">
                <sysId>{${payload.result.sys_id}}</sysId>
                <tableName>incident</tableName>
                <sysparmDisplayValue></sysparmDisplayValue>
                <sysparmFields></sysparmFields>
                <sysparmView></sysparmView>
                <sysparmExcludeReferenceLink></sysparmExcludeReferenceLink>
            </servicenow.getRecordById>
            <respond/>
        </inSequence>
        <faultSequence>
        </faultSequence>
    </resource>
</api>

Get the project

You can download the ZIP file and extract the contents to get the project code.

Download ZIP

Tip

You may need to update the instance details and make other such changes before deploying and running this project.

Deployment

To deploy and run the project, refer to the Build and Run guide.

Test

Invoke the API as shown below using the MI VSCode Extension.

Runtime services

Post record operation

Sample request:

  • Content-Type: application/json
  • Request body:
    {
      "payload": {}
    }


Expected Response : You should get a response as given below.

{
   "result": {
      "short_description": "Incident type: L2",
      "number": "34",
      "sys_id": "52fc51d9c3aa261043761c84e40131c2"
   }
}
