Apache Pulsar Connector Reference¶

This documentation provides a reference guide for the Apache Pulsar Connector. The Pulsar connector allows you to connect to Apache Pulsar, a distributed messaging system, and perform message publishing. Click an operation name to see parameter details and samples on how to use it.

Connection Configurations¶

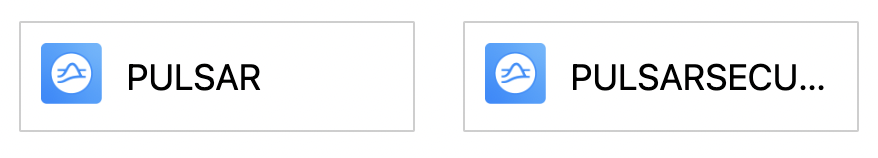

Apache Pulsar Connections

The WSO2 Apache Pulsar Connector allows you to establish both secure and non-secure connections to Apache Pulsar.

Connection Configuration Parameters¶

PULSAR

This operation allows you to initialize the connection to Apache Pulsar.ddd

Note: Unless explicitly stated, the default values of the optional parameters match those defined in the official Apache Pulsar Configuration documentation.

Parameter Name	Display Name	Description	Required
name	Connection name	Unique name to identify the connection.	Yes
serviceUrl	Broker URL	The Pulsar broker URL to connect. It follows the format - `pulsar://<host_name>:<port>` where pulsar is the protocol. The content following the `://` is the host name and the port on which the broker is running.	Yes
Additional parameters for connection
connectionTimeoutMs	Connection Timeout (in milliseconds)	Timeout for establishing a TCP connection in milliseconds.	No
operationTimeoutSeconds	Operation Timeout (in seconds)	Specifies how long the client should wait (in seconds) for sending a message before timing out.	No
requestTimeoutMs	Request Timeout (in milliseconds)	Timeout duration (in milliseconds) for individual Pulsar requests.	No
lookupTimeoutMs	Lookup Timeout (in milliseconds)	Timeout (in milliseconds) for topic lookup operations. If the broker does not respond in time, the request fails. This helps prevent the client from waiting indefinitely when trying to resolve a topic to a broker.	No
connectionMaxIdleSeconds	Connection Max Idle Time (in seconds)	Specifies the maximum time (in seconds) a connection can stay idle before being closed.	No
numIoThreads	Number of IO Threads	Sets the number of threads dedicated for handling network I/O operations such as reading and writing data to the broker.	No
numListenerThreads	Number of Listener Threads	The number of threads used to process messages received by consumers.	No
enableBusyWait	Enable Busy Wait	When enabled, uses busy-waiting for IO threads instead of traditional blocking IO. This may reduce latency but increases CPU usage.	No
initialBackoffInterval	Initial Backoff Interval (in milliseconds)	Initial backoff interval for reconnection attempts (in milliseconds).	No
maxBackoffInterval	Max Backoff Interval (in milliseconds)	Maximum backoff interval for reconnection attempts (in milliseconds).	No
connectionsPerBroker	Number of Connections Per Broker	Determines how many TCP connections the client maintains per broker. Increasing this can help with high-throughput scenarios.	No
maxLookupRedirects	Maximum Number of Lookup Redirects	The maximum number of times a lookup request can be redirected when resolving a topic to its broker. If the number of redirects exceeds this limit, the lookup operation fails. This helps prevent infinite redirect loops during topic resolution.	No
maxLookupRequest	Maximum Number of Lookup Requests	Maximum number of lookup requests allowed on each broker connection to prevent overloading a broker.	No
concurrentLookupRequest	Number of Concurrent Lookup Requests	The number of concurrent lookup requests that can be sent on each broker connection.	No
maxConcurrentLookupRequests	Maximum Number of Concurrent Lookup Requests	The number of concurrent lookup requests that can be sent on each broker connection. Setting a maximum prevents overloading a broker.	No
maxNumberOfRejectedRequestPerConnection	Maximum Number Of Rejected Request Per Connection	Maximum number of rejected requests of a broker in a certain time frame (60 seconds) after the current connection is closed and the client creating a new connection to connect to a different broker.	No
useTcpNoDelay	Enable TCP No Delay	Enable TCP no delay for network connections.	No
enableTransaction	Enable Transaction	Whether to enable transaction support in the Pulsar connector. When set to true, the connector can participate in transactional message publishing, allowing atomic operations across multiple topics and partitions. This is useful for scenarios requiring exactly-once semantics or coordinated multi-message operations. If not needed, leave it as false to avoid extra overhead.	No
keepAliveIntervalSeconds	Keep Alive Interval (in seconds)	Interval (in seconds) to send keep-alive messages to maintain an active connection with the broker. This helps prevent the connection from being closed due to inactivity. If not set, the default value defined by Pulsar will be used.	No
statsIntervalSeconds	Stats Interval (in seconds)	The interval (in seconds) at which the Pulsar connector collects and reports statistics. This helps monitor client(connector) performance and resource usage. If not set, the default value defined by Pulsar will be used.	No
memoryLimitBytes	Memory Limit (in bytes)	The maximum amount of memory (in bytes) that the Pulsar client(connector) can use. It helps control the memory usage of the client(connector), preventing it from consuming excessive resources, which is important for stability and performance in resource-constrained environments. If not set, the default value defined by Pulsar will be used.	No
listenerName	Listener Name	Listener name for lookup.	No

Sample configuration

Given below is a sample configuration to create a client connection without security.

<pulsar.init>
    <name>pulsarConnection</name>
    <serviceUrl>pulsar://localhost:6650</serviceUrl>
    <connectionTimeoutMs>10000</connectionTimeoutMs>
    <operationTimeoutSeconds>30</operationTimeoutSeconds>
    <requestTimeoutMs>30000</requestTimeoutMs>
    <lookupTimeoutMs>10000</lookupTimeoutMs>
    <numIoThreads>4</numIoThreads>
    <numListenerThreads>2</numListenerThreads>
    <connectionsPerBroker>1</connectionsPerBroker>
    <memoryLimitBytes>104857600</memoryLimitBytes>
</pulsar.init>

PULSAR SECURE

This operation allows you to initialize a secure and authenticated connection to Apache Pulsar.

Note: Unless explicitly stated, the default values of the optional parameters match those defined in the official Apache Pulsar Configuration documentation.

Parameter Name	Display Name	Description	Required
name	Connection Name	Unique name to identify the connection by.	Yes
serviceUrl	Broker URL	The Pulsar broker URL to connect. It follows the format- `pulsar+ssl://<host_name>:<port>` where pulsar is the protocol and `+ssl` is an optional parameter that shows that the connection is secured by TLS. The content following the `://` is the host name and the port on which the broker is running.	Yes
Parameters for secure connection (TLS encryption)
tlsAllowInsecureConnection	Allow Insecure TLS Connection	Allows the client to connect to the broker using TLS even if the server's certificate cannot be verified (e.g., self-signed certificates). Use with caution, as it disables strict certificate validation. When this is true, the value of `tlsTrustCertsFilePath` and the trust store parameters are ignored. Default value is false.	No
useKeyStoreTls	Use KeyStore TLS	Enables the use of a Java KeyStore for TLS configuration instead of PEM files. Default value is false.	No
tlsTrustCertsFilePath	Broker CA Certificate Path	Specifies the file path to the CA certificate(s) used to verify the broker's TLS certificate. This should point to a PEM-encoded certificate file. This is applicable only when `useKeyStoreTls` parameter is set to false.	No
tlsTrustStorePath	TLS TrustStore Path	The file system path to the Java KeyStore (trust store) containing trusted CA certificates for TLS connections. This is applicable only when `useKeyStoreTls` parameter is set to true.	No
tlsTrustStoreType	TLS TrustStore Type	The type of the trust store (e.g., JKS or PKCS12) used for TLS certificate validation. This is applicable only when `useKeyStoreTls` parameter is set to true.	No
tlsTrustStorePassword	TLS TrustStore Password	Password for the TLS trust store. This is applicable only when `useKeyStoreTls` parameter is set to true.	No
tlsProtocols	TLS Protocols	Specifies the list of enabled TLS protocol versions (e.g., TLSv1.2, TLSv1.3) as a comma-separated value. This controls which protocol versions the client will use when negotiating with the broker.	No
tlsCiphers	TLS Ciphers	Specifies the list of enabled TLS ciphers as a comma-separated value. This controls which encryption algorithms are allowed during the TLS handshake.	No
autoCertRefreshSeconds	Auto Certificate Refresh Interval (in seconds)	Interval for automatic certificate refresh (in seconds).	No
enableTlsHostnameVerification	Enable TLS Hostname Verification	Enables hostname verification for TLS connections. When set to true, the client checks that the broker's TLS certificate matches its hostname, providing additional security against man-in-the-middle attacks. If false, this verification is skipped.	No
Parameters for Authentication
authenticationType	Authentication Type	Type of authentication (e.g., JWT, TLS, OAUTH2, NONE).	No
jwtToken	JWT Token	JWT token to be used with JWT authentication type.	No
Additional parameters for connection
connectionTimeoutMs	Connection Timeout (in milliseconds)	Timeout for establishing a TCP connection in milliseconds.	No
operationTimeoutSeconds	Operation Timeout (in seconds)	Specifies how long the client should wait (in seconds) for sending a message before timing out.	No
requestTimeoutMs	Request Timeout (in milliseconds)	Timeout duration (in milliseconds) for individual Pulsar requests.	No
lookupTimeoutMs	Lookup Timeout (in milliseconds)	Timeout (in milliseconds) for topic lookup operations. If the broker does not respond in time, the request fails. This helps prevent the client from waiting indefinitely when trying to resolve a topic to a broker.	No
connectionMaxIdleSeconds	Connection Max Idle Time (in seconds)	Specifies the maximum time (in seconds) a connection can stay idle before being closed.	No
numIoThreads	Number of IO Threads	Sets the number of threads dedicated for handling network I/O operations such as reading and writing data to the broker.	No
numListenerThreads	Number of Listener Threads	The number of threads used to process messages received by consumers.	No
enableBusyWait	Enable Busy Wait	When enabled, uses busy-waiting for IO threads instead of traditional blocking IO. This may reduce latency but increases CPU usage.	No
initialBackoffInterval	Initial Backoff Interval (in milliseconds)	Initial backoff interval for reconnection attempts (in milliseconds).	No
maxBackoffInterval	Max Backoff Interval (in milliseconds)	Maximum backoff interval for reconnection attempts (in milliseconds).	No
connectionsPerBroker	Number of Connections Per Broker	Determines how many TCP connections the client maintains per broker. Increasing this can help with high-throughput scenarios.	No
maxLookupRedirects	Maximum Number of Lookup Redirects	The maximum number of times a lookup request can be redirected when resolving a topic to its broker. If the number of redirects exceeds this limit, the lookup operation fails. This helps prevent infinite redirect loops during topic resolution.	No
maxLookupRequest	Maximum Number of Lookup Requests	Maximum number of lookup requests allowed on each broker connection to prevent overloading a broker.	No
concurrentLookupRequest	Number of Concurrent Lookup Requests	The number of concurrent lookup requests that can be sent on each broker connection.	No
maxConcurrentLookupRequests	Maximum Number of Concurrent Lookup Requests	The number of concurrent lookup requests that can be sent on each broker connection. Setting a maximum prevents overloading a broker.	No
maxNumberOfRejectedRequestPerConnection	Maximum Number Of Rejected Request Per Connection	Maximum number of rejected requests of a broker in a certain time frame (60 seconds) after the current connection is closed and the client creating a new connection to connect to a different broker.	No
useTcpNoDelay	Enable TCP No Delay	Enable TCP no delay for network connections.	No
enableTransaction	Enable Transaction	Whether to enable transaction support in the Pulsar connector. When set to true, the connector can participate in transactional message publishing, allowing atomic operations across multiple topics and partitions. This is useful for scenarios requiring exactly-once semantics or coordinated multi-message operations. If not needed, leave it as false to avoid extra overhead.	No
keepAliveIntervalSeconds	Keep Alive Interval (in seconds)	Interval (in seconds) to send keep-alive messages to maintain an active connection with the broker. This helps prevent the connection from being closed due to inactivity. If not set, the default value defined by Pulsar will be used.	No
statsIntervalSeconds	Stats Interval (in seconds)	The interval (in seconds) at which the Pulsar connector collects and reports statistics. This helps monitor client(connector) performance and resource usage. If not set, the default value defined by Pulsar will be used.	No
memoryLimitBytes	Memory Limit (in bytes)	The maximum amount of memory (in bytes) that the Pulsar client(connector) can use. It helps control the memory usage of the client(connector), preventing it from consuming excessive resources, which is important for stability and performance in resource-constrained environments. If not set, the default value defined by Pulsar will be used.	No
listenerName	Listener Name	Listener name for lookup.	No

Sample configuration

Given below is a sample configuration to create a client connection without security.

<pulsar.init>
    <name>pulsarConnection</name>
    <serviceUrl>pulsar://localhost:6650</serviceUrl>
    <connectionTimeoutMs>10000</connectionTimeoutMs>
    <operationTimeoutSeconds>30</operationTimeoutSeconds>
    <requestTimeoutMs>30000</requestTimeoutMs>
    <lookupTimeoutMs>10000</lookupTimeoutMs>
    <numIoThreads>4</numIoThreads>
    <numListenerThreads>2</numListenerThreads>
    <connectionsPerBroker>1</connectionsPerBroker>
    <memoryLimitBytes>104857600</memoryLimitBytes>
    <authenticationType>JWT</authenticationType>
    <jwtToken>eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJ0ZXN0LXVzZXIifQ.KpRMeZtp9Tjl-4wJq5PppK71sc6Gwb0utspd1PpLSr0</jwtToken>
    <tlsAllowInsecureConnection>false</tlsAllowInsecureConnection>
    <useKeyStoreTls>false</useKeyStoreTls>
    <tlsTrustCertsFilePath>/Users/wso2/Documents/apache-pulsar-4.0.4/ca.cert.pem</tlsTrustCertsFilePath>
</pulsar.init>

Publishing messages to Apache Pulsar¶

Publish Message

The publishMessage operation allows you to publish messages to the Apache Pulsar brokers.

Note: Unless explicitly stated, the default values of the optional parameters match those defined in the official Apache Pulsar Configuration documentation.

Parameter Name	Display Name	Description	Required
value	Message	The value or payload of the message to be published.	Yes
key	Key	The key associated with the message for partitioning or routing.	No
properties	Message Properties	Custom properties to attach to the message as key-value pairs.	No
sequenceId	Sequence ID	The sequence ID to assign to the message for deduplication or ordering.	No
deliverAfter	Deliver After (in milliseconds)	The delay duration after which the message should be delivered (e.g., 5s, 1m).	No
Producer Settings
topicName	Topic Name	The name of the Pulsar topic to which messages will be published.	Yes
compressionType	Compression Type	The compression type to use for messages. Supported values: NONE, LZ4, ZLIB, ZSTD, SNAPPY. Reduces message size over the network.	No
sendMode	Send Mode	The mode for sending the message: SYNC (wait for ack) or ASYNC (send and continue).	No
batchingEnabled	Batching Enabled	Whether message batching is enabled for the producer. Batching can improve throughput by sending multiple messages in a single request. The default value is `true`.	No
batchingMaxMessages	Batching Max Messages	The maximum number of messages permitted in a batch. The default value is `1000`.	No
batchingMaxBytes	Batching Max Bytes (in bytes)	The maximum size of a batch in bytes. The default value is `131072`.	No
batchingMaxPublishDelayMicros	Batching Max Publish Delay (in microseconds)	The maximum delay (in microseconds) to wait before publishing a batch, even if the batch is not full. Controls batching latency. The default value is `1000` microseconds.	No
chunkingEnabled	Chunking Enabled	Whether chunking is enabled for large messages. If enabled, large messages are split into smaller chunks. The default value is `false`.	No
chunkMaxMessageSize	Chunk Max Message Size (in Bytes)	The maximum size (in bytes) of a single message before it gets chunked.	No
sendTimeoutMs	Send Timeout (in milliseconds)	The timeout in milliseconds for a message to be sent. If the message is not acknowledged within this time, it is marked as failed.	No
blockIfQueueFull	Block Producer If Queue Full	Whether the producer should block when the outgoing message queue is full. If false, send operations will fail immediately when the queue is full. The default value is `false`.	No
maxPendingMessages	Max Pending Messages	The maximum number of messages allowed to be pending in the outgoing queue.	No
maxPendingMessagesAcrossPartitions	Max Pending Messages Across Partitions	The maximum number of pending messages across all partitions. This is useful for partitioned topics.	No
hashingScheme	Hashing Scheme	The hashing scheme used to determine the partition for a message. Supported values: JavaStringHash, Murmur3_32Hash, BoostHash. The default value is `JavaStringHash`.	No
messageRoutingMode	Message Routing Mode	The message routing mode for partitioned topics. Supported values: SinglePartition, RoundRobinPartition, CustomPartition. The default value is `RoundRobinPartition`.	No
Output Parameters
responseVariable	Output variable Name	The name of the variable to which the output should be stored.	No
overwriteBody	Overwrite Message Body	Replace the Message Body in Message Context with the response of the operation.	No

Sample configuration

<pulsar.publishMessages configKey="securePulsar">
    <topicName>{${payload.topic}}</topicName>
    <compressionType>NONE</compressionType>
    <sendMode>Sync</sendMode>
    <batchingEnabled>false</batchingEnabled>
    <key>{${payload.key}}</key>
    <value>{${payload.message}}</value>
    <sequenceId></sequenceId>
    <properties>[{"compression":"enabled"}, {"type":"json"}]</properties>
    <responseVariable>pulsar_publishMessages_135</responseVariable>
    <overwriteBody>false</overwriteBody>
</pulsar.publishMessages>

Following properties will be set in the message context or to a new variable if the overwriteBody parameter is set to false.

{
    "success": "true"
    "msgid: "162:3:-1"
}
