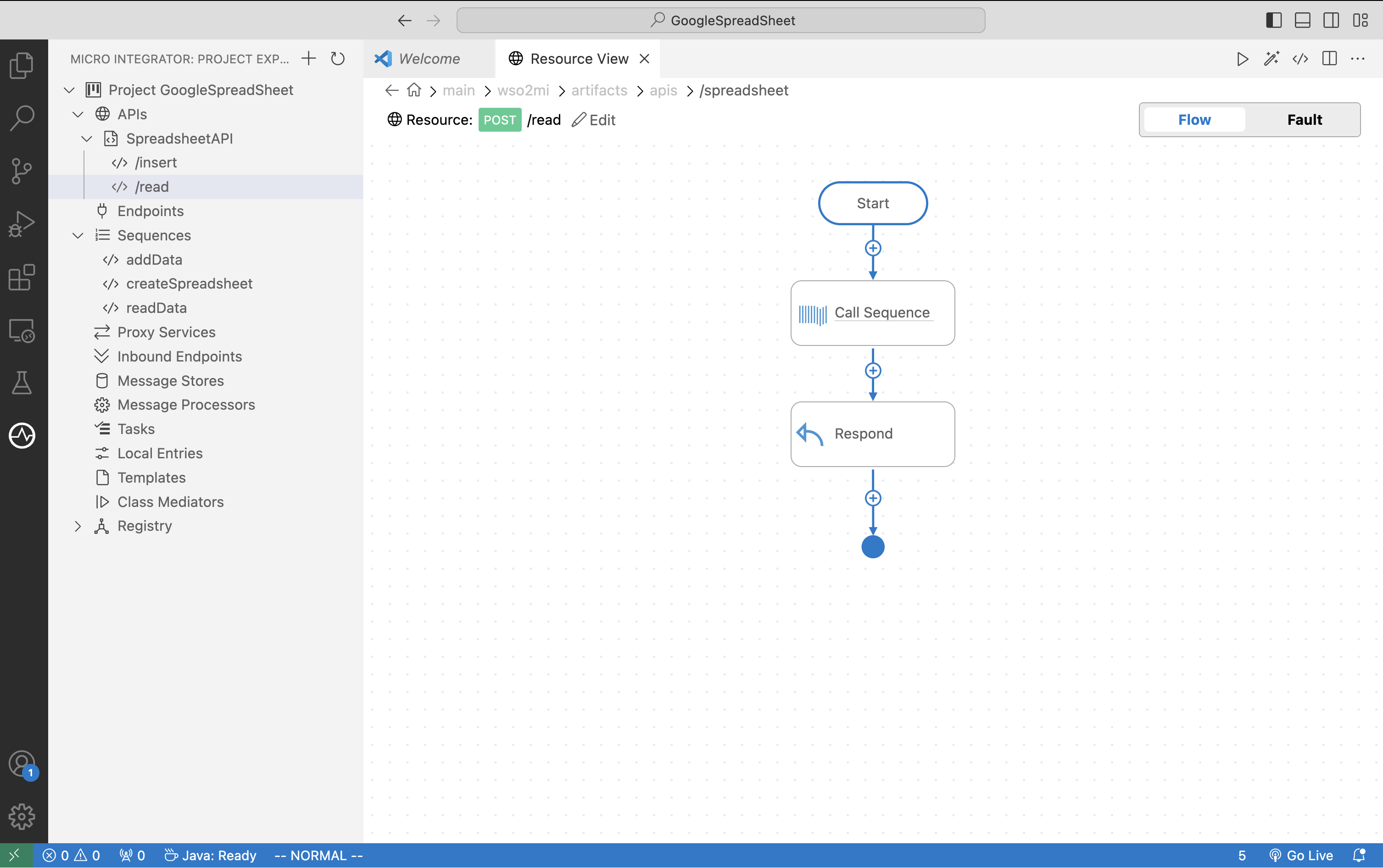

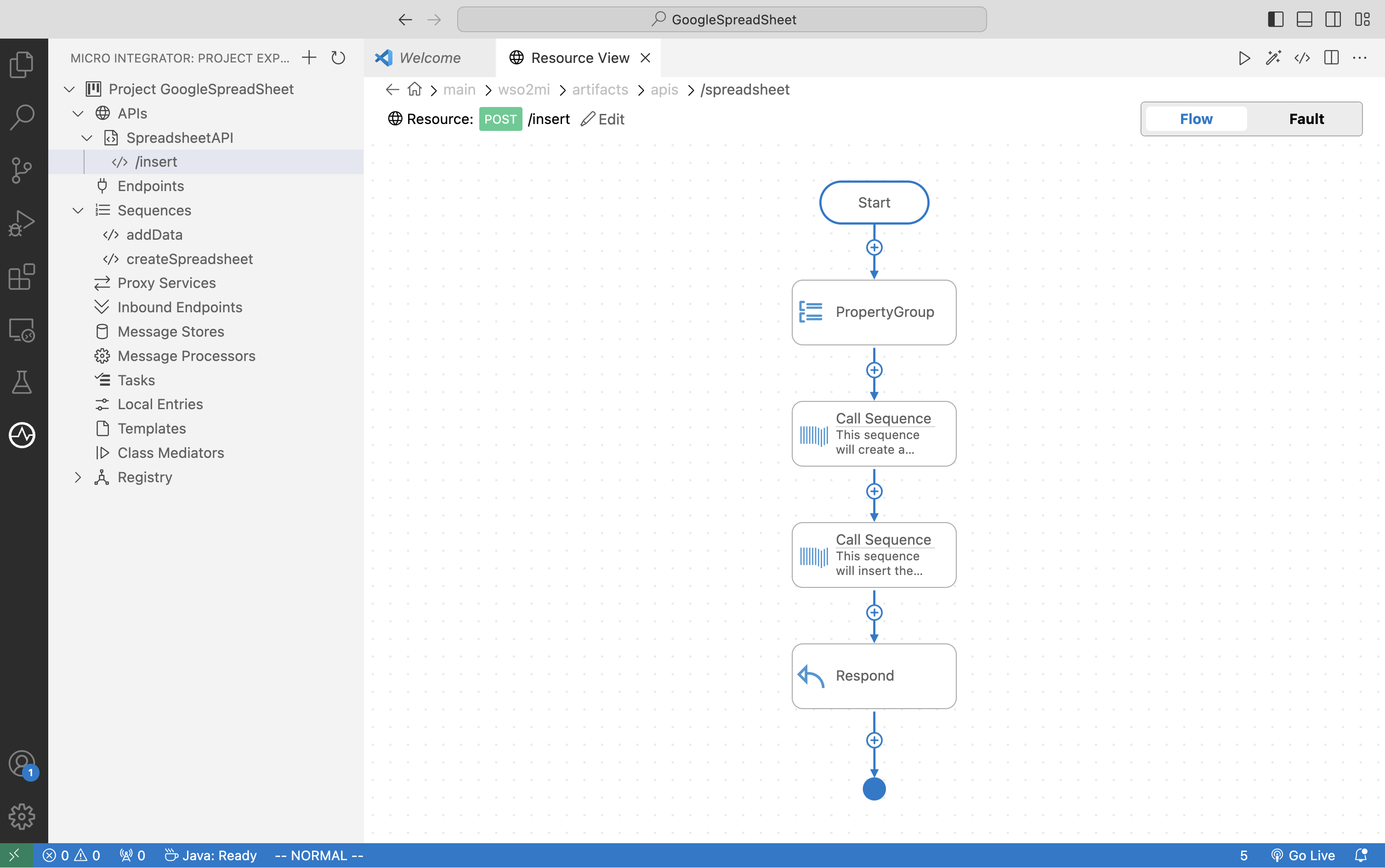

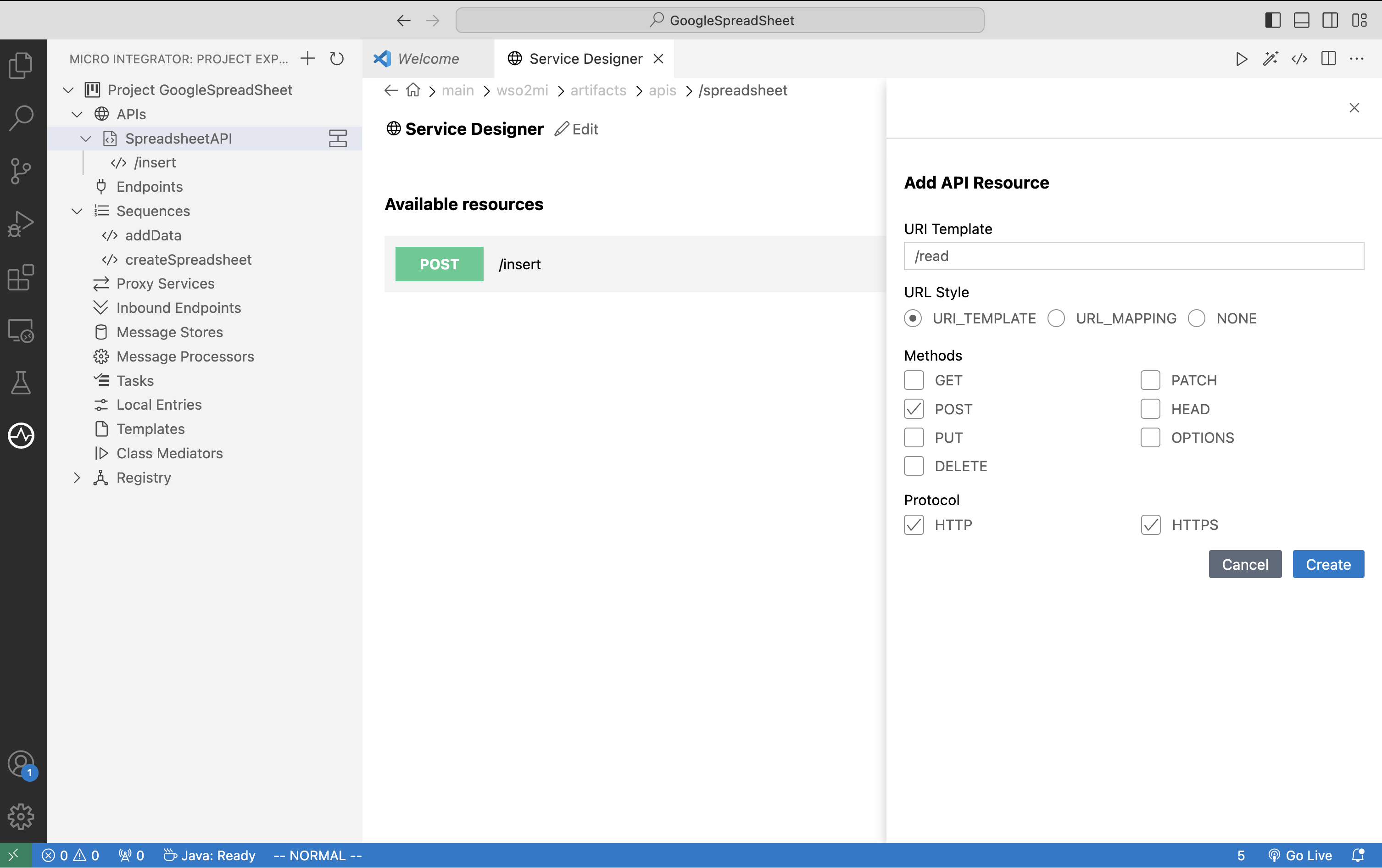

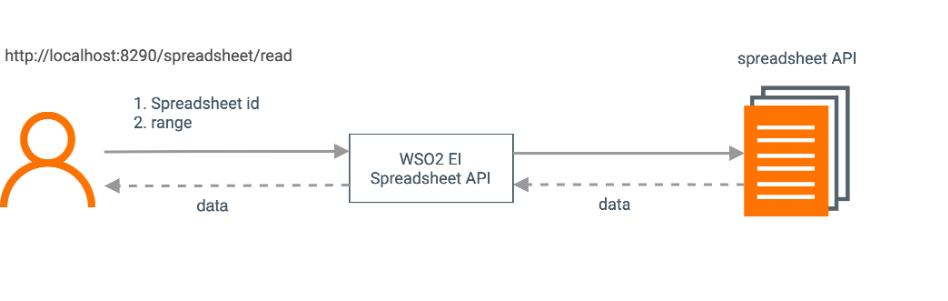

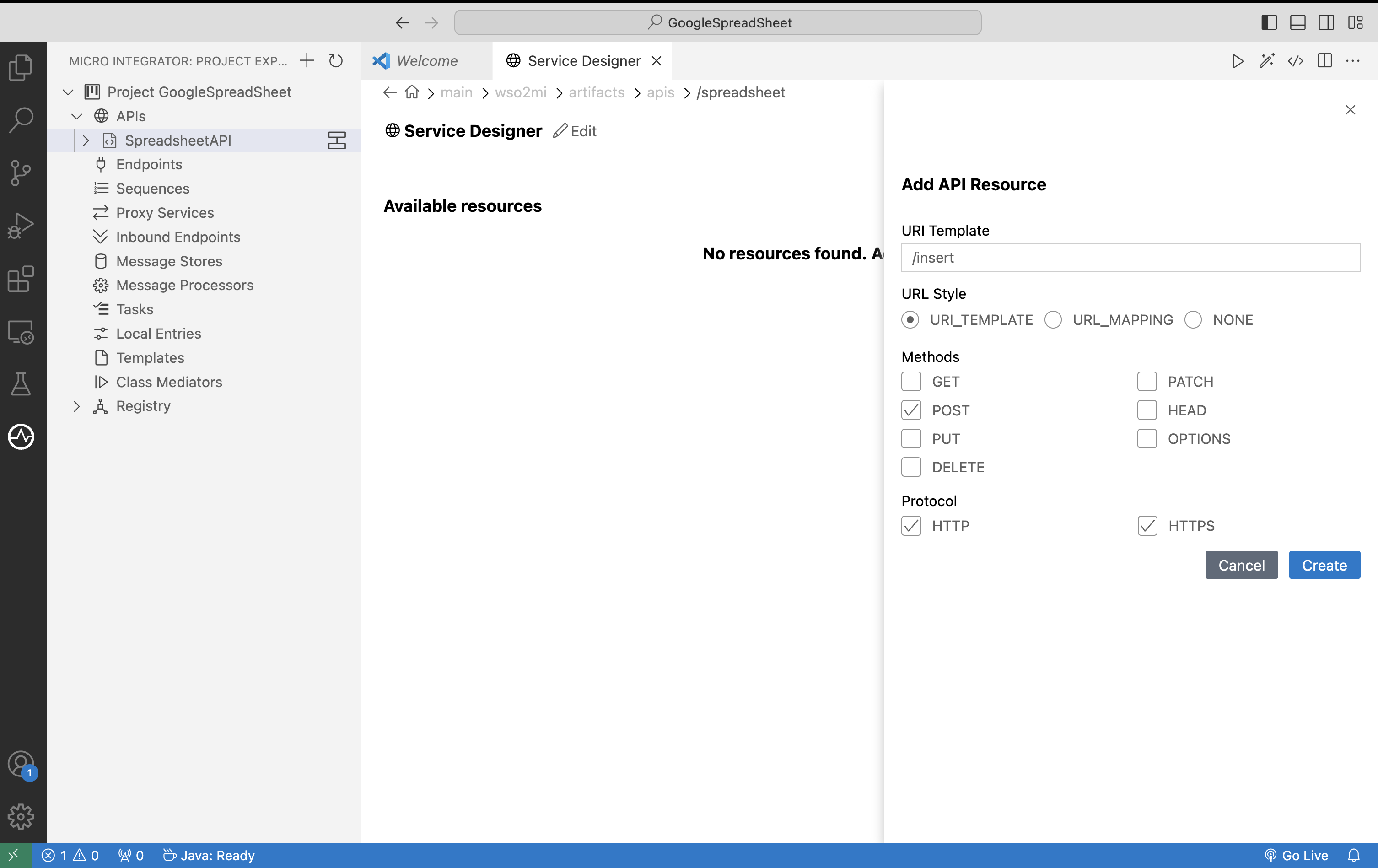

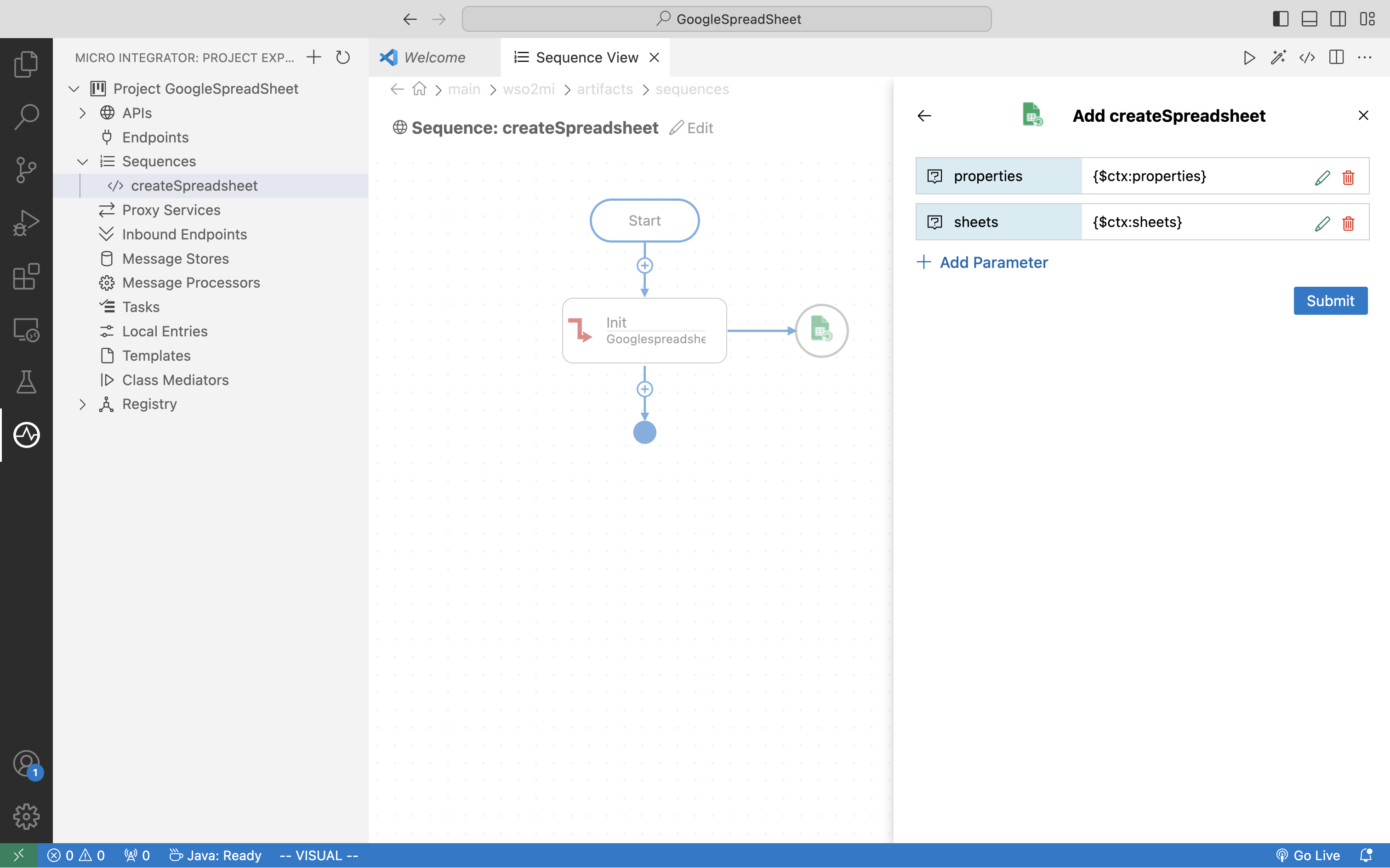

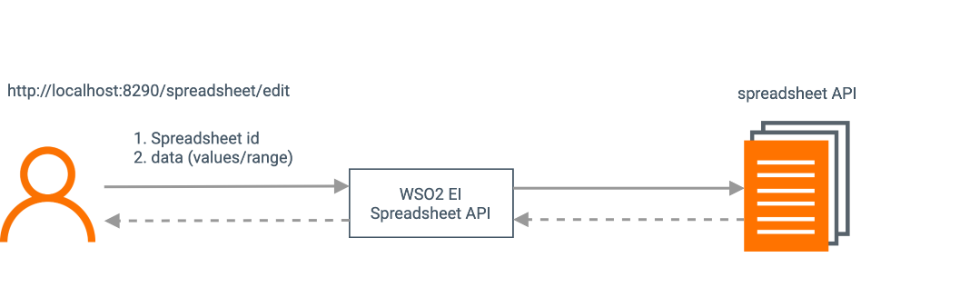

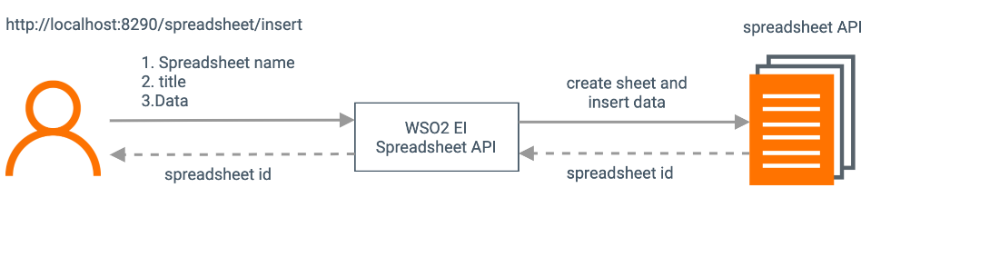

Google Spreadsheet Connector Example¶ The Google Sheets API lets users to read and modify any aspect of a spreadsheet. The WSO2 Google Spreadsheet Connector allows you to access the Google Spreadsheet API Version v4 from an integration sequence. It allows users to read/write any aspect of the spreadsheet via the spreadsheets collection. It has the ability to do spreadsheet operations and spreadsheet data operations. What you'll build¶ This example explains how to use Google Spreadsheet Connector to create a Google spreadsheet, write data to it, and read it. Further, it explains how the data in the spreadsheet can be edited. It will have three HTTP API resources, which are insert, read and edit. /insert: The user sends the request payload, which includes the name of the spreadsheet, the sheet names, and what data should be inserted to which sheet and which range of cells. This request is sent to the integration runtime by invoking the Spreadsheet API. It creates a spreadsheet with specified data in the specified cell range. /read: The user sends the request payload, which includes the spreadsheet Id that should be obtained from calling the insert API resource, and the range of the cell range to be read. /edit: The user sends the request payload, which includes the spreadsheet Id that should be obtained from calling the insert API resource, and the data to be edited that includes values and the range. If you do not want to configure this yourself, you can simply get the project and run it. Setup the Integration Project¶ Follow the steps in create integration project guide to set up the Integration Project. Creating the Integration Logic¶ Follow these steps to Configure Google Sheets API and obtain the Client Id, Client Secret, Access Token, and Refresh Token. Select WSO2 Integrator: MI and click on + in APIs to create a REST API. Provide the API name as SpreadsheetAPI and the API context as /spreadsheet. First we will create the /insert resource. Right click on the API Resource and go to Properties view. We use a URL template called /insert as we have two API resources inside single API. The method will be Post. In this operation we are going to receive input from the user, which are properties, sheets, range and values. properties - It can provide the spreadsheet properties such as title of the spreadsheet. sheets - It can provide set of sheets to be created. range - It provides the sheet name and the range that data need to be inserted. values - Data to be inserted. The above four parameters are saved to a property group. Drag and drop the Property Group mediator onto the canvas in the design view and do as shown below. For further reference, you can read about the Property Group mediator. You can add set of properties as below. Once all the properties are added to the Property Group Mediator, it looks as below. The createSpreadsheet operation is going to be added as a separate sequence. Right click on the created Integration Project and select, -> New -> Sequence to create the createSpreadsheet sequence. Drag and drop the init operation in the Googlespreadsheet Connector as below. Fill the following values that you obtained in the step 1. accessToken apiUrl: https://sheets.googleapis.com/v4/spreadsheets clientId clientSecret refreshToken Drag and drop createSpreadsheet operation to the Canvas next. Parameter values are defined in step 6 and 7 in the property group. The complete XML configuration for the createSpreadsheet.xml looks as below. <?xml version="1.0" encoding="UTF-8"?> <sequence name="createSpreadsheet" trace="disable" xmlns="http://ws.apache.org/ns/synapse"> <googlespreadsheet.init> <accessToken></accessToken> <apiUrl>https://sheets.googleapis.com/v4/spreadsheets</apiUrl> <clientId></clientId> <clientSecret></clientSecret> <refreshToken></refreshToken> </googlespreadsheet.init> <googlespreadsheet.createSpreadsheet> <properties>{$ctx:properties}</properties> <sheets>{$ctx:sheets}</sheets> </googlespreadsheet.createSpreadsheet> </sequence> Next we need to create the addData.xml sequence as above. As explained in step 8, create a sequence by right clicking the Integration Project that has already been created. Below is the complete XML configuration for addData.xml file. <?xml version="1.0" encoding="UTF-8"?> <sequence name="addData" trace="disable" xmlns="http://ws.apache.org/ns/synapse"> <property expression="json-eval($.spreadsheetId)" name="spreadsheetId" scope="default" type="STRING"/> <googlespreadsheet.init> <accessToken></accessToken> <apiUrl>https://sheets.googleapis.com/v4/spreadsheets</apiUrl> <clientId></clientId> <clientSecret></clientSecret> <refreshToken></refreshToken> </googlespreadsheet.init> <googlespreadsheet.addRowsColumnsData> <spreadsheetId>{$ctx:spreadsheetId}</spreadsheetId> <range>{$ctx:range}</range> <insertDataOption>INSERT_ROWS</insertDataOption> <valueInputOption>RAW</valueInputOption> <majorDimension>ROWS</majorDimension> <values>{$ctx:values}</values> </googlespreadsheet.addRowsColumnsData> </sequence> Now go back to SpreadsheeetAPI.xml file, and from Defined Sequences drag and drop createSpreadsheet sequence, addData sequence and finally the Respond Mediator to the canvas. Now we are done with creating the first API resource, and it is displayed as shown below. Create the next API resource, which is /read. From this, we are going to read the specified spreadsheet data. Use the URL template as /read. The method will be POST. Let's create readData.xml sequence. The complete XML configuration looks as below. <?xml version="1.0" encoding="UTF-8"?> <sequence name="readData" trace="disable" xmlns="http://ws.apache.org/ns/synapse"> <property expression="json-eval($.spreadsheetId)" name="spreadsheetId" scope="default" type="STRING"/> <property expression="json-eval($.range)" name="range" scope="default" type="STRING"/> <googlespreadsheet.init> <accessToken></accessToken> <apiUrl>https://sheets.googleapis.com/v4/spreadsheets</apiUrl> <clientId></clientId> <clientSecret></clientSecret> <refreshToken></refreshToken> </googlespreadsheet.init> <googlespreadsheet.getCellData> <spreadsheetId>{$ctx:spreadsheetId}</spreadsheetId> <range>{$ctx:range}</range> <dateTimeRenderOption>SERIAL_NUMBER</dateTimeRenderOption> <majorDimension>ROWS</majorDimension> <valueRenderOption>UNFORMATTED_VALUE</valueRenderOption> </googlespreadsheet.getCellData> </sequence> In this operation, the user sends the spreadsheetId and range as the request payload. They will be written to properties as we did in step 10. Go back to SpreadsheetAPI. Drag and drop readData sequence from the Defined Sequences to the canvas followed by a Respond mediator. Next go to SpreadsheetAPI. To create the next API resource, drag and drop another API resource to the design view. Use the URL template as /edit. The method will be POST. Create the sequence editSpeadsheet.xml which looks as below. <?xml version="1.0" encoding="UTF-8"?> <sequence name="editSpreadsheet" trace="disable" xmlns="http://ws.apache.org/ns/synapse"> <property expression="json-eval($.spreadsheetId)" name="spreadsheetId" scope="default" type="STRING"/> <property expression="json-eval($.data)" name="data" scope="default" type="STRING"/> <googlespreadsheet.init> <accessToken></accessToken> <apiUrl>https://sheets.googleapis.com/v4/spreadsheets</apiUrl> <clientId></clientId> <clientSecret></clientSecret> <refreshToken></refreshToken> </googlespreadsheet.init> <googlespreadsheet.editMultipleCell> <spreadsheetId>{$ctx:spreadsheetId}</spreadsheetId> <valueInputOption>RAW</valueInputOption> <data>{$ctx:data}</data> </googlespreadsheet.editMultipleCell> </sequence> Go back to SpreadsheetAPI. Drag and drop editSpeadsheet sequence from the Defined Sequences to the canvas followed by a Respond mediator. Below is the complete XML configuration of the SpreadsheetAPI. <?xml version="1.0" encoding="UTF-8"?> <api context="/spreadsheet" name="SpreadsheetAPI" xmlns="http://ws.apache.org/ns/synapse"> <resource methods="POST" uri-template="/insert"> <inSequence> <propertyGroup description="It contains the set of properties related to spreadsheet creation and addData operations. "> <property expression="json-eval($.properties)" name="properties" scope="default" type="STRING"/> <property expression="json-eval($.sheets)" name="sheets" scope="default" type="STRING"/> <property expression="json-eval($.range)" name="range" scope="default" type="STRING"/> <property expression="json-eval($.values)" name="values" scope="default" type="STRING"/> </propertyGroup> <sequence description="This sequence will create a spreadsheet and outputs the spreadsheet url. " key="createSpreadsheet"/> <sequence description="This sequence will insert the data to the created spreadsheet. " key="addData"/> <respond/> </inSequence> <faultSequence/> </resource> <resource methods="POST" uri-template="/read"> <inSequence> <sequence description="This sequence will read data of the spreadsheet. " key="readData"/> <respond/> </inSequence> <outSequence/> <faultSequence/> </resource> <resource methods="POST" uri-template="/edit"> <inSequence> <sequence key="editSpreadsheet"/> <respond/> </inSequence> <faultSequence/> </resource> </api> Exporting Integration Logic as a CApp¶ In order to export the project, refer to the build and export the carbon application guide. Get the project¶ You can download the ZIP file and extract the contents to get the project code. Tip You may need to update the value of the access token and make other such changes before deploying and running this project. Deployment¶ In order to deploy and run the project, refer the build and run guide. You can further refer the application deployed through the CLI tool. See the instructions on managing integrations from the CLI. Testing¶ Spreadsheet insert Operation¶ Invoke the SpreadsheetAPI with the following URL. An application such as Postman can be used to invoke the API. Resource method: POST URL: http://localhost:8290/spreadsheet/insert { "properties":{ "title": "Company" }, "sheets":[ { "properties": { "title": "Employees" } }, { "properties": { "title": "Hector" } } ], "range":"Employees!A1:C3", "values":[ [ "First Name", "Last Name", "Gender" ], [ "John", "Doe", "Male" ], [ "Leon", "Wins", "Female" ] ] } Expected Response: You should get a success response as below, and the spreadsheet should be created in the given ID in the response with data inserted. { "spreadsheetId": "1ddnO00fcjuLvEMCUORVjYQ4C0VLeAPNGmcvSvELHbPU", "updates": { "spreadsheetId": "1ddnO00fcjuLvEMCUORVjYQ4C0VLeAPNGmcvSvELHbPU", "updatedRange": "Employees!A1:C3", "updatedRows": 3, "updatedColumns": 3, "updatedCells": 9 } } Spreadsheet Read Operation¶ Invoke the SpreadsheetAPI with the following URL. An application such as Postman can be used to invoke the API. Obtain the Spreadsheet ID from step 1. Resource method: POST URL: http://localhost:8290/spreadsheet/read { "spreadsheetId":"1Ht0FWeKtKqBb1pEEzLcRMM8s5mktJdhivX3iaFXo-qQ", "range":"Employees!A1:C3" } Expected Response: You should get the following response returned. { "range": "Employees!A1:C3", "majorDimension": "ROWS", "values": [ [ "First Name", "Last Name", "Gender" ], [ "John", "Doe", "Male" ], [ "Leon", "Wins", "Female" ] ] } Spreadsheet Edit Operation¶ Invoke the SpreadsheetAPI with the following URL. Application such as Postman can be used to invoke the API. Obtain the Spreadsheet ID from the step 1. Resource method: POST URL: http://localhost:8290/spreadsheet/edit { "spreadsheetId":"1Ht0FWeKtKqBb1pEEzLcRMM8s5mktJdhivX3iaFXo-qQ", "data": [ { "values": [["Isuru","Uyanage","Female"],["Supun","Silva","Male"]], "range": "Employees!A6" } ] } Expected Response: You should get the following response returned. { "spreadsheetId": "1Ht0FWeKtKqBb1pEEzLcRMM8s5mktJdhivX3iaFXo-qQ", "totalUpdatedRows": 2, "totalUpdatedColumns": 3, "totalUpdatedCells": 6, "totalUpdatedSheets": 1, "responses": [ { "spreadsheetId": "1Ht0FWeKtKqBb1pEEzLcRMM8s5mktJdhivX3iaFXo-qQ", "updatedRange": "Employees!A6:C7", "updatedRows": 2, "updatedColumns": 3, "updatedCells": 6 } ] } The spreadsheet should be edited within the above specified cell range. What's Next¶ To customize this example for your own scenario, see Google Spreadsheet Connector Configuration documentation for all operation details of the connector.
