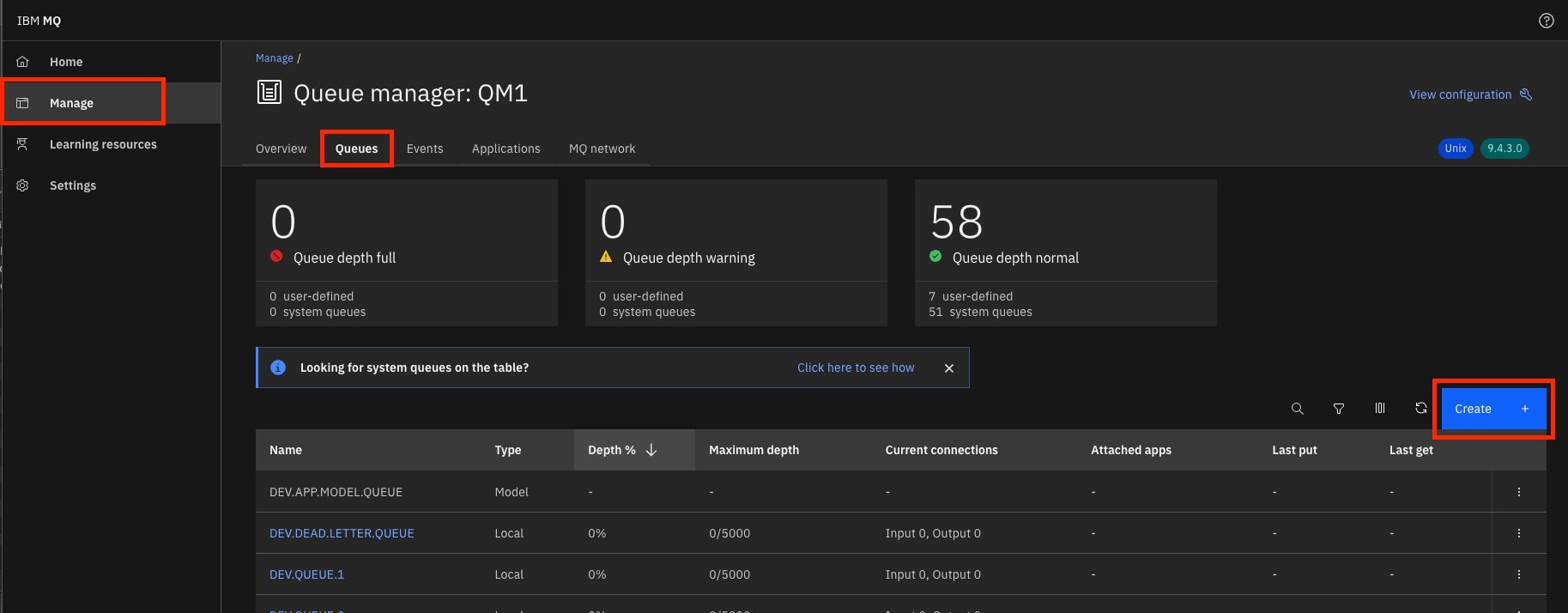

Connecting to IBM WebSphere MQ Docker image¶ Info We have tested these steps on IBM WebSphere MQ version 9.4 container image. Prerequisites¶ Pull the matching IBM MQ container image for your OS and run it. Example docker run -d --name ibm-mq -p 1414:1414 -p 9443:9443 -e LICENSE=accept -e MQ_QMGR_NAME=QM1 -e MQ_APP_PASSWORD=admin_password ibmcom/mq:latest If you need a arm64 compatible image, you have to build the image using following steps since IBM MQ does not provide a arm64 compatible image. Clone the IBM MQ container repository. git clone https://github.com/ibm-messaging/mq-container.git Change the directory to the cloned repository. cd mq-container Checkout the latest tag. git checkout v9.4.3.0-r1 Build the docker image make build-devserver COMMAND=docker Run the dockerimage. docker run --env LICENSE=accept --env MQ_QMGR_NAME=QM1 --env MQ_ADMIN_PASSWORD=passw0rd --publish 1414:1414 --publish 9443:9443 ibm-mqadvanced-server-dev:9.4.3.0-r1-arm64 Creating queue in IBM WebSphere MQ¶ Access the IBM WebSphere MQ console by navigating to the URL http://localhost:9443/ibmmq/console in your web browser. Log in using the credentials you set when running the container. Navigate to the Manage view of the queue manager and select the Queues tab. Click on the Create + button to create a new queue. Select Local queue type, provide queue1 as the name and click on the Create button. Generating the .bindings file¶ Download the MQ bindings generator project and extract the contents. Open the Java project in your favorite IDE and change the required details in the code. ex: host, port, queue, channel, queue manager name, etc. Note We can use the default DEV.ADMIN.SVRCONN channel for testing purposes. Follow the instructions in the README.md file to generate the .bindings file. Configuring the WSO2 Integrator: MI¶ Info If you are using Windows Operating Systems (e.g., Windows 10) , mention the .bindings file location starting with file:/// format, in the deployment.toml file. parameter.provider_url = "file:///G:/jndidirectory" Add the following configurations to enable the two JMS listeners. [[transport.jms.listener]] name = "myQueueConnectionFactory1" parameter.initial_naming_factory = "com.sun.jndi.fscontext.RefFSContextFactory" parameter.provider_url = "file:/G:/jndidirectory" parameter.connection_factory_name = "myQueueConnectionFactory" parameter.connection_factory_type = "queue" parameter.username = "admin" parameter.password = "passw0rd" [[transport.jms.listener]] name = "default" parameter.initial_naming_factory = "com.sun.jndi.fscontext.RefFSContextFactory" parameter.provider_url = "file:/G:/jndidirectory" parameter.connection_factory_name = "myQueueConnectionFactory" parameter.connection_factory_type = "queue" parameter.username = "admin" parameter.password = "passw0rd" Add the following configurations to enable the two JMS senders. [[transport.jms.sender]] name = "myQueueConnectionFactory1" parameter.initial_naming_factory = "com.sun.jndi.fscontext.RefFSContextFactory" parameter.provider_url = "file:/G:/jndidirectory" parameter.connection_factory_name = "myQueueConnectionFactory" parameter.connection_factory_type = "queue" parameter.username = "admin" parameter.password = "passw0rd" [[transport.jms.sender]] name = "default" parameter.initial_naming_factory = "com.sun.jndi.fscontext.RefFSContextFactory" parameter.provider_url = "file:/G:/jndidirectory" parameter.connection_factory_name = "myQueueConnectionFactory" parameter.connection_factory_type = "queue" parameter.username = "admin" parameter.password = "passw0rd" Copying IBM WebSphere MQ libraries¶ Follow the instructions below to build and install IBM WebSphere MQ client JAR files to WSO2 Integrator: MI. Info These instructions are tested on IBM WebSphere MQ version 9.4 However, you can follow them for other versions appropriately. Create a new directory named wmq-client , and then create another new directory named lib inside it. Copy the following JAR files resides in /opt/mqm/java/lib location of the IBM MQ docker container to the lib directory you created in the previous step. Info You can use the docker cp command to copy the files from the container to your local machine. For example: docker cp <container_id>:/opt/mqm/java/lib/com.ibm.mq.allclient.jar <local_path>/wmq-client/lib Note If you are using IBM MQ 8 with Mutual SSL enabled, you need to download the wmq-client-8.0.0.zip file and follow the instructions in the readme.txt file. com.ibm.mq.allclient.jar fscontext.jar jms.jar providerutil.jar Create a pom.xml file inside the wmq-client directory and add all the required dependencies as shown in the example below. <?xml version="1.0"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>wmq-client</groupId> <artifactId>wmq-client</artifactId> <version>9.4</version> <packaging>bundle</packaging> <dependencies> <dependency> <groupId>com.ibm</groupId> <artifactId>fscontext</artifactId> <version>9.4</version> <scope>system</scope> <systemPath>${basedir}/lib/fscontext.jar</systemPath> </dependency> <dependency> <groupId>com.ibm</groupId> <artifactId>providerutil</artifactId> <version>9.4</version> <scope>system</scope> <systemPath>${basedir}/lib/providerutil.jar</systemPath> </dependency> <dependency> <groupId>com.ibm</groupId> <artifactId>allclient</artifactId> <version>9.4</version> <scope>system</scope> <systemPath>${basedir}/lib/com.ibm.mq.allclient.jar</systemPath> </dependency> <dependency> <groupId>javax.jms</groupId> <artifactId>jms</artifactId> <version>1.1</version> <scope>system</scope> <systemPath>${basedir}/lib/jms.jar</systemPath> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.apache.felix</groupId> <artifactId>maven-bundle-plugin</artifactId> <version>6.0.0</version> <extensions>true</extensions> <configuration> <instructions> <Bundle-SymbolicName>${project.artifactId}</Bundle-SymbolicName> <Bundle-Name>${project.artifactId}</Bundle-Name> <Export-Package>*;-split-package:=merge-first</Export-Package> <Private-Package/> <Import-Package/> <Embed-Dependency>*;scope=system;inline=true</Embed-Dependency> <DynamicImport-Package>*</DynamicImport-Package> </instructions> </configuration> </plugin> </plugins> </build> </project> Navigate to the wmq-client directory using your Command Line Interface (CLI), and execute the following command, to build the project: mvn clean install Note This build requires Java 17 or later. Stop the WSO2 Integrator: MI, if it is already running. Remove any existing IBM MQ client JAR files from the MI_HOME/dropins directory and the MI_HOME/lib directory. Copy the <wmq-client>/target/wmq-client-9.4.jar file to the MI_HOME/dropins directory. Download the jta.jar file from the maven repository, and copy it to the MI_HOME/lib directory. Start the WSO2 Integrator: MI server. Deploying JMS listener proxy service¶ In this section, the following simple proxy service is deployed to listen to the queue1 queue. When a message is published in this queue, the proxy service would pull the message out of the queue and log it. <?xml version="1.0" encoding="UTF-8"?> <proxy name="MyJMSProxy" startOnLoad="true" transports="jms" xmlns="http://ws.apache.org/ns/synapse"> <target> <inSequence> <log> <message>Received message on MyJMSProxy : ${payload}</message> </log> <drop/> </inSequence> </target> <parameter name="transport.jms.ContentType"> <rules> <jmsProperty>contentType</jmsProperty> <default>application/json</default> </rules> </parameter> <parameter name="transport.jms.Destination">queue1</parameter> <parameter name="transport.jms.ConnectionFactory">myQueueConnectionFactory1</parameter> <parameter name="transport.jms.DestinationType">queue</parameter> </proxy> Testing the proxy service¶ Open IBM MQ console and select the queue queue1 that you created earlier. Click on the Create + button to publish a message to the queue. Then you will get the following log in the WSO2 Integrator: MI. [2025-07-18 13:34:34,358] INFO {LogMediator} - {proxy:MyJMSProxy} Received message on MyJMSProxy : {"Hello":"world"}
