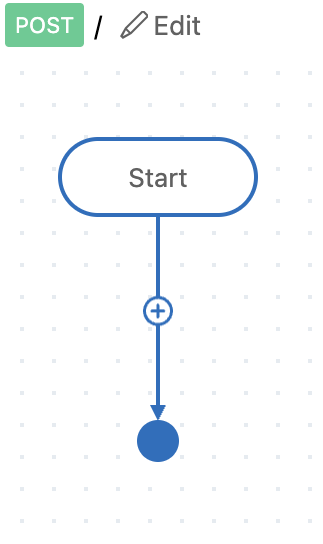

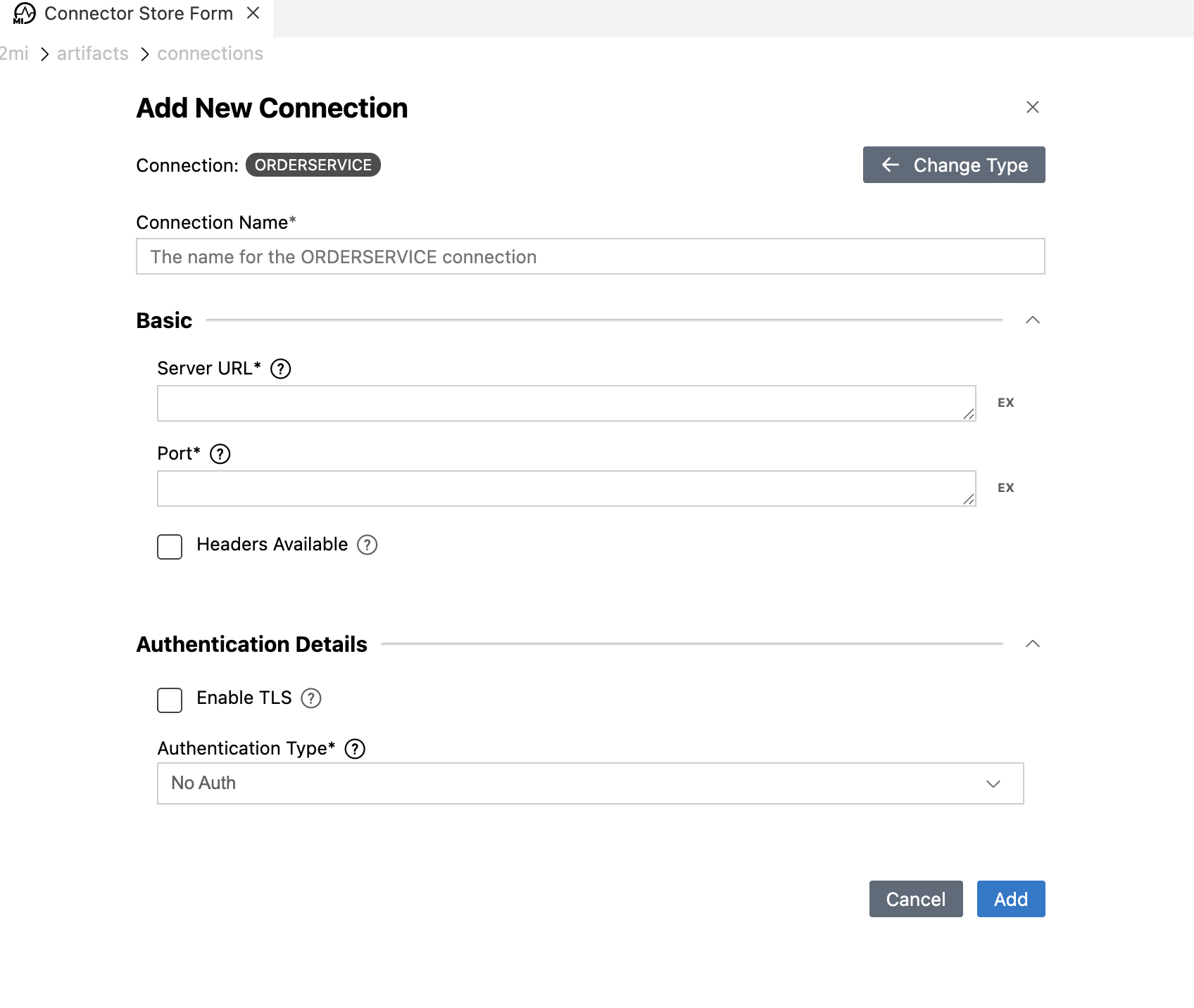

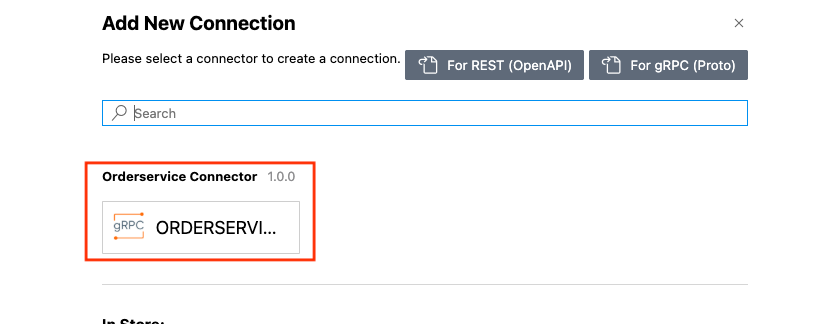

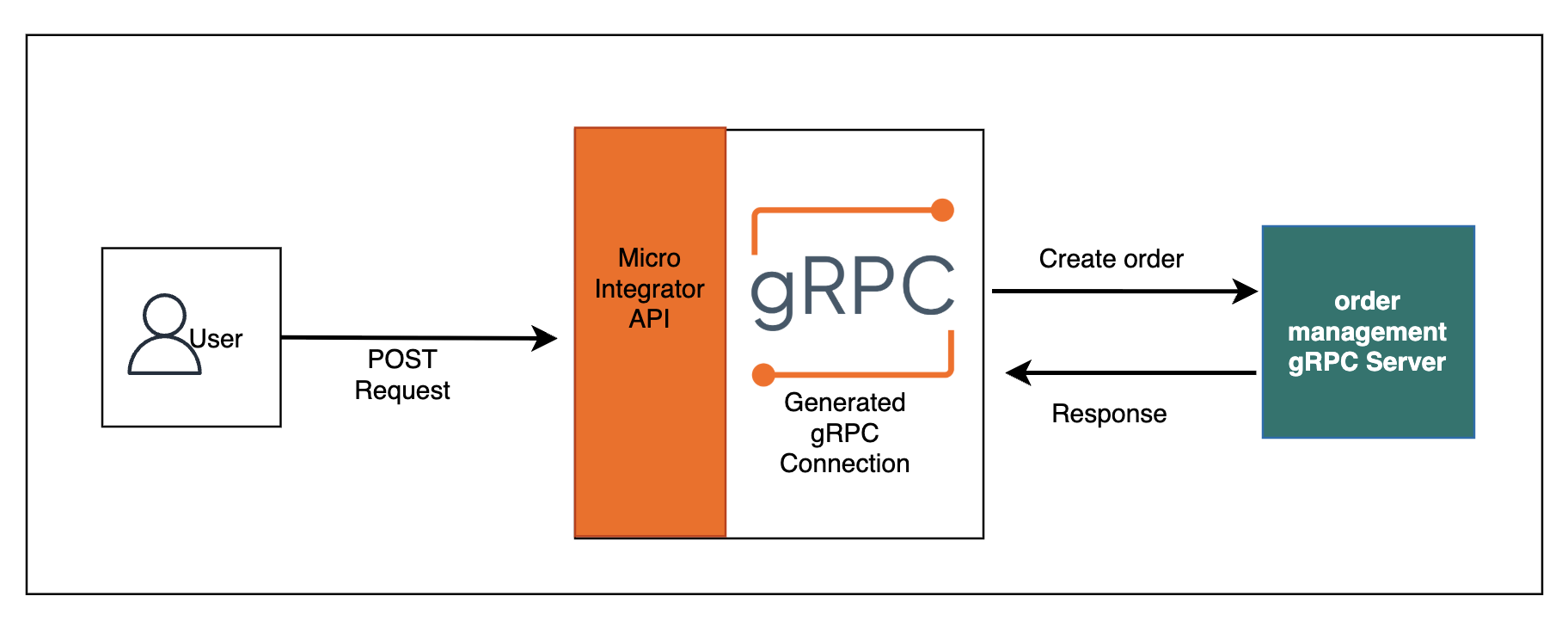

Examples What you'll build¶ Order management integration example¶ This example demonstrates how to integrate with the OrderService gRPC API to handle the lifecycle of an order in a retail system—from creation to retrieval and updates. This API facilitates seamless backend communication for e-commerce platforms, inventory systems, and similar applications. Prerequisites:¶ Download the sample order proto file order-service.proto file. Download the grpc-order-service.jar file from here. Execute the grpc-order-service.jar file using the command below. java -jar grpc-order-service.jar This will start the gRPC server on localhost:9090, which you can use to test the integration. Steps to follow¶ Step 01: Create a new integration project in WSO2 Integrator: MI for VS Code, see Create an Integration Project. Step 02: Create a new sequence or API artifact within your integration project, see Create Sequence. Step 03: From the Mediator Palette, select the orderservice connector that was generated from the order-service.proto file using above one of options in generate the gRPC connector. Step 04: Create a connection by filling in the form with the required authentication details. Property Value Connection Name orderConnection Server URL localhost Port 9090 Auth Type Basic Authentication Username eve Password eve@123 Step 05: Add the CreateOrder operation to your sequence or API. Provide the necessary input as a JSON object that matches the input message defined in the .proto file. Ensure the response is set to overwrite the payload. Request message for creating an order. message CreateOrderRequest { string customer_id = 1; string product_id = 2; int32 quantity = 3; float price = 4; } JSON values for the above message type { "customer_id": "cust123", "product_id": "prod789", "quantity": 2, "price": 299.99 } Step 06: Similarly, you can use the GetOrder operation to retrieve order details by supplying the order_id. Again, make sure the response overwrites the payload. { "order_id": "order456" } Step 07: Optionally, add the UpdateOrder operation to modify existing orders by providing the order ID and updated details. Step 08: Add any response handling logic needed to process the output from the gRPC calls at the end of your sequence or API. Advanced data mapping example with order management integration¶ This example shows how to use the generated gRPC connector alongside the Data Mapper mediator in WSO2 Integrator: MI to perform advanced data mapping and transformation. Follow steps 1–4 above to set up your integration project and connection. Imagine a scenario where you have a complex JSON object with 30 fields from another data source, and you need to map it to the CreateOrder request message defined in the order-service.proto file. You can use the Data Mapper mediator to transform this complex structure into the expected input for your gRPC call. Input JSON Example: This is the complex JSON object you might receive from another service or data source. { "customer_id": "cust123", "product_id": "prod789", "quantity": 2, "price": 299.99, "shipping_address": { "street": "123 Main St", "city": "Springfield", "state": "IL", "zip_code": "62701" }, "billing_address": { "street": "456 Elm St", "city": "Springfield", "state": "IL", "zip_code": "62701" } // ... other fields } - Data Mapping: Use the Data Mapper mediator to map the complex JSON structure to the CreateOrderRequest message. The mapping can be done visually in the WSO2 Integrator: MI for VS Code. With the Data Mapper, you can add expression conditions to your mappings, allowing you to transform or filter data as needed. For example, you can set conditions to map certain fields only when specific criteria are met, or format data before sending it to the gRPC service. Data Mapper sourcecode import * as dmUtils from "./dm-utils"; /* * title : "root", * inputType : "JSON", */ interface Root { order: { metadata: { order_id: string created_at: string status: string priority: string } customer_info: { customer_id: string name: string email: string phone: string loyalty_points: number } shipping: { address: { line1: string line2: string city: string state: string zip_code: string country: string } method: string tracking_number: string estimated_delivery: string } billing: { payment_method: string transaction_id: string payment_status: string billing_address_same_as_shipping: boolean } product: { product_id: string name: string quantity: number price: number category: string in_stock: boolean } summary: { subtotal: number discount: number tax: number shipping_fee: number total: number } flags: { is_gift: boolean gift_message: string requires_signature: boolean } custom_data: { tags: string[] comments: string custom_reference: string } } } /* * title : "Order", * outputType : "JSON", */ interface OutputOrder { order_id?: string customer_id: string product_id: string quantity: number price: number } interface Orders { orderId: string } /** * functionName : map_S_root_S_Order * inputVariable : inputroot */ export function mapFunction(input: Root): OutputOrder { return { customer_id: input.order.customer_info.customer_id, product_id: input.order.product.product_id, order_id: input.order.metadata.order_id, quantity: (input.order.product.quantity == 0) ? 5 : input.order.product.quantity, price: input.order.product.price * 300 } } This approach makes it easy to work with large or differently structured input payloads, ensuring they conform to your gRPC request messages. Final Sequence: The final sequence will look like this, where the Data Mapper transforms the complex input into the expected gRPC request format.
