BigQuery Connector Example¶

The WSO2 BigQuery connector is mostly composed of operations that are useful for retrieving BigQuery data such as project details, datasets, tables, and jobs (it has one operation that can be used to insert data into BigQuery tables).

In this example, we are trying to build up a sample scenario based on the BigQuery Table operations.

What you'll build¶

Given below is a sample scenario that demonstrates how to work with the WSO2 BigQuery Connector:

The user sends the request to invoke an API to get created table details from the BigQuery. This REST call will retrieve schema level information and send it back to the API caller.
Insert data in to the created table.
Retrieve inserted details from the BigQuery table.
Run an SQL query (BigQuery) and retrieve details from BigQuery table.

All four operations are exposed via an bigquery-testAPI API. The API with the context /resources has four resources.

/gettabledetails: This is used to get created table details from the BigQuery table by ID.
/insertdetails : This is used to insert the data into the table.
/getdetails : This is used to retrieves table data from a specified set of rows.
/runQuery : The runQuery operation runs an SQL query (BigQuery) and returns results if the query completes within a specified timeout.

Note: Before starting this scenario, you need to create a project in BigQuery. Next, create a Dataset and under that Dataset you have to have Table. For more information about these operations, please refer to the Setting up the BigQuery Environment.

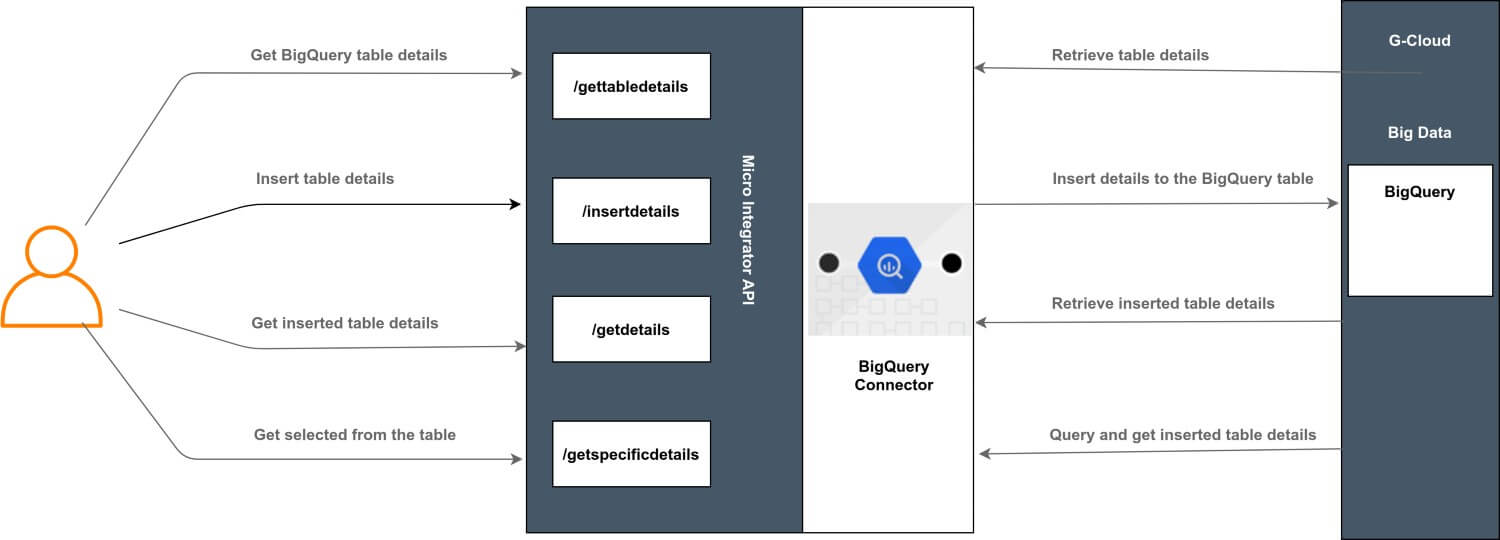

The following diagram shows the overall solution. User can invoke the table schema level details from the gettabledetails resource. Using the response details, the API caller can insert data into the created table. If users need to retrieve table data from a specified set of rows, they need to invoke the getdetails resource. Finally /runQuery resource runs an SQL query (BigQuery) and returns results back to the API caller.

BigQuery connector example

If you do not want to configure this yourself, you can simply get the project and run it.

Set up the integration project¶

Follow these steps to set up the Integration Project using the WSO2 Micro Integrator Visual Studio Code extension.

Create the new project¶

Go to WSO2 Micro Integrator in the VS Code.
Click on Create New Project to create the new integration project.
provide the Project Name and select the Project Directory
You have now created the new project with the following structure.

Configure the API¶

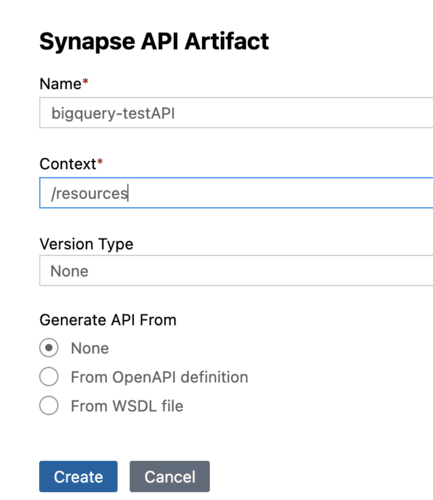

Open the MI project view and click the + button next to the API. A form will open to create a new API resources. Specify the API name as bigquery-testAPI and API context as /resources.

Adding a Rest API

Configure a resource for the gettabledetails operation¶

Create a resource that to invoke an API to get created table details from the BigQuery. To achieve this, add the following components to the configuration.

Initialize the connector.
1. Go to the Connector, select the BigQuery Connector, click on init operation.
2. Click on + Add Parameter and add the following properties with your corresponding values.
  - apiUrl: The base endpoint URL of the BigQuery API.
  - accessToken: The OAuth token for the BigQuery API.
  - clientId : The client ID for the BigQuery API.
  - clientSecret : The client Secret for the BigQuery API.
  - refreshToken : The refresh token for the BigQuery API.
  - apiKey : The API key. Required unless you provide an OAuth 2.0 token.
Add getTable operation. This operation retrieves a table by ID.
1. Go to the Connector, select the BigQuery Connector, click on the getTable operation.
2. Click on + Add Parameter and add the following properties with your corresponding values.
  - datasetId : The dataset ID of the requested table.
  - projectId : The project ID of the requested table.
  - tableId : The ID of the requested table.
To forward the backend response to the API caller, navigate to the Mediator and click on the Respond mediator.

Configure a resource for the insertdetails operation¶

Initialize the connector. You can use the same configuration to initialize the connector. Please follow the steps given in section 1 for setting up the init operation to the gettabledetails operation.
Set up the insertAllTableData operation. This operation inserts the data into the table.
1. Go to the Connector, select the BigQuery Connector, click on the insertAllTableData operation.
2. Click on + Add Parameter and add the following properties with your corresponding values.
  - datasetId : The dataset ID of the requested table.
  - projectId : The project ID of the requested table.
  - tableId : The ID of the requested table.
  - skipInvalidRows : A boolean value to check whether the row should be validated.
  - ignoreUnknownValues : A boolean value to validate whether the values match the table schema.
  - jsonPay : A JSON object that contains a row of data.
In this example, skipInvalidRows value is configured as true and ignoreUnknownValues value is configured as true.
To forward the backend response to the API caller, navigate to the Mediator and click on the Respond mediator.

Configure a resource for the listTabledata operation¶

Initialize the connector. You can use the same configuration to initialize the connector. Please follow the steps given in section 1 for setting up the init operation to the gettabledetails operation.
Set up the listTabledata operation. This operation retrieves table data from a specified set of rows.
1. Go to the Connector, select the BigQuery Connector, click on the listTabledata operation.
2. Click on + Add Parameter and add the following properties with your corresponding values.
  - datasetId : The dataset ID of the requested table.
  - projectId : The project ID of the requested table.
  - tableId : The ID of the requested table.
To forward the backend response to the API caller, navigate to the Mediator and click on the Respond mediator.

Configure a resource for the runQuery operation¶

Initialize the connector. You can use the same configuration to initialize the connector. Please follow the steps given in section 1 for setting up the init operation to the gettabledetails operation.
Set up the runQuery operation. The /runQuery operation runs an SQL query (BigQuery) and returns results if the query completes within a specified timeout.
1. Go to the Connector, select the BigQuery Connector, click on the runQuery operation.
2. Click on + Add Parameter and add the following properties with your corresponding values.
  - projectId : The project ID of the requested table.
  - kind : The resource type of the request.
  - defaultProjectId : The ID of the project that contains this dataset.
  - defaultDatasetId : A unique ID (required) for this dataset without the project name. The ID must contain only letters (a-z, A-Z), numbers (0-9), or underscores (_). The maximum length is 1,024 characters.
  - query : A query string (required) that complies with the BigQuery query syntax.
  - maxResults : The maximum number of rows of data (results) to return per page. Responses are also limited to 10 MB. By default, there is no maximum row count and only the byte limit applies.
  - timeoutMs : Specifies how long (in milliseconds) the system should wait for the query to complete before expiring and returning the request.
  - dryRun : If set to true, BigQuery does not run the job. Instead, if the query is valid, BigQuery returns statistics about the job. If the query is invalid, an error returns. The default value is false.
  - useQueryCache : Specifies whether to look for the result in the query cache. The default value is true.
In this example, kind value is configured as bigquery#tableDataInsertAllResponse, query value is configured as SELECT Name FROM students, maxResults value is configured as 1000, timeoutMs value is configured as 1000, dryRun value is configured as false and useQueryCache value is configured as true.
To forward the backend response to the API caller, navigate to the Mediator and click on the Respond mediator.

bigquery-testAPI.xml

<?xml version="1.0" encoding="UTF-8"?>
<api context="/resources" name="bigquery-testAPI" xmlns="http://ws.apache.org/ns/synapse">
    <resource methods="POST" uri-template="/gettabledetails">
        <inSequence>
            <bigquery.init>
                <apiUrl>https://www.googleapis.com</apiUrl>
                <accessToken>ya29.1</accessToken>
                <clientId>513m</clientId>
                <clientSecret>GDr</clientSecret>
                <refreshToken>1//qMQmOs</refreshToken>
                <apiKey>AAqQ</apiKey>
            </bigquery.init>
            <bigquery.getTable>
                <datasetId>{json-eval($.datasetId)}</datasetId>
                <projectId>{json-eval($.projectId)}</projectId>
                <tableId>{json-eval($.tableId)}</tableId>
            </bigquery.getTable>
            <respond/>
        </inSequence>
        <faultSequence>
        </faultSequence>
    </resource>
    <resource methods="POST" url-mapping="/insertdetails">
        <inSequence>
            <bigquery.init>
                <apiUrl>https://www.googleapis.com</apiUrl>
                <accessToken>ya29.1</accessToken>
                <clientId>513m</clientId>
                <clientSecret>GDr</clientSecret>
                <refreshToken>1//qMQmOs</refreshToken>
                <apiKey>AAqQ</apiKey>
            </bigquery.init>
            <bigquery.insertAllTableData>
                <datasetId>{json-eval($.datasetId)}</datasetId>
                <projectId>{json-eval($.projectId)}</projectId>
                <tableId>{json-eval($.tableId)}</tableId>
                <skipInvalidRows>true</skipInvalidRows>
                <ignoreUnknownValues>true</ignoreUnknownValues>
                <jsonPay>{json-eval($.jsonPay)}</jsonPay>
            </bigquery.insertAllTableData>
            <respond/>
        </inSequence>
        <outSequence/>
        <faultSequence/>
    </resource>
    <resource methods="POST" url-mapping="/getdetails">
        <inSequence>
            <bigquery.init>
                <apiUrl>https://www.googleapis.com</apiUrl>
                <accessToken>ya29.1</accessToken>
                <clientId>513m</clientId>
                <clientSecret>GDr</clientSecret>
                <refreshToken>1//qMQmOs</refreshToken>
                <apiKey>AAqQ</apiKey>
            </bigquery.init>
            <bigquery.listTabledata>
                <datasetId>{json-eval($.datasetId)}</datasetId>
                <projectId>{json-eval($.projectId)}</projectId>
                <tableId>{json-eval($.tableId)}</tableId>
            </bigquery.listTabledata>
        <respond/>
        </inSequence>
        <outSequence/>
        <faultSequence/>
    </resource>
    <resource methods="POST" url-mapping="/runQuery">
        <inSequence>
        <bigquery.init>
            <apiUrl>https://www.googleapis.com</apiUrl>
            <accessToken>ya29.1</accessToken>
            <clientId>513m</clientId>
            <clientSecret>GDr</clientSecret>
            <refreshToken>1//qMQmOs</refreshToken>
            <apiKey>AAqQ</apiKey>
        </bigquery.init>
        <bigquery.runQuery>
            <projectId>{json-eval($.projectId)}</projectId>
            <defaultProjectId>{json-eval($.projectId)}</defaultProjectId>
            <defaultDatasetId>{json-eval($.datasetId)}</defaultDatasetId>
            <kind>bigquery#tableDataInsertAllResponse</kind>
            <query>SELECT Name FROM Tes</query>
            <maxResults>10000</maxResults>
            <timeoutMs>10000</timeoutMs>
            <dryRun>false</dryRun>
            <useQueryCache>true</useQueryCache>
        </bigquery.runQuery>
        <respond/>
        </inSequence>
        <outSequence/>
        <faultSequence/>
    </resource>
</api>

Get the project¶

You can download the ZIP file and extract the contents to get the project code.

Deployment¶

Once you have built your artifacts into a composite application, you can export it into a CAR file (.car file) using the WSO2 Micro Integrator Visual Studio Code extension:

Open the project overview and click on Export.
Click on Select Destination to select a destination folder to export the CAR file.

Test¶

Invoke the API as shown below using the curl command. Curl Application can be downloaded from here.

Invoke an API to get created table details from the BigQuery.¶

Sample request

Save a file called data.json with the following payload.

  {
     "tableId":"students",
     "datasetId":"Sample1",
     "projectId":"ei-connector-improvement"
  }

curl -v POST -d @data.json "http://localhost:8290/resources/getTable" -H "Content-Type:application/json"

Expected response

  // API callback
  callBackFunction({
    "kind": "bigquery#table",
    "etag": "G5Yv0gFoLTD2gSToi5YPwA==",
    "id": "ei-connector-improvement:Sample1.students",
    "selfLink": "https://www.googleapis.com/bigquery/v2/projects/ei-connector-improvement/datasets/Sample1/tables/students",
    "tableReference": {
      "projectId": "ei-connector-improvement",
      "datasetId": "Sample1",
      "tableId": "students"
    },
    "schema": {
      "fields": [
        {
          "name": "name",
          "type": "STRING",
          "mode": "NULLABLE"
        },
        {
          "name": "age",
          "type": "INTEGER",
          "mode": "NULLABLE"
        }
      ]
    },
    "numBytes": "0",
    "numLongTermBytes": "0",
    "numRows": "0",
    "creationTime": "1592219906721",
    "lastModifiedTime": "1592219906768",
    "type": "TABLE",
    "location": "US"
  }
  );

Invoke an API to insert data in to the created table.¶

Sample request

Save a file called data.json with the following payload.

{
  "tableId":"students",
  "datasetId":"Sample1",
  "projectId":"ei-connector-improvement",
  "jsonPay":{
         "json":
               {
                "name":"Jhone",
                "age":"30"
                }
             }
}

curl -v POST -d @data.json "http://localhost:8290/resources/insertdetails" -H "Content-Type:application/json"

Expected response

{
    "kind": "bigquery#tableDataInsertAllResponse"
}

Invoke an API to retrieve inserted details from the BigQuery table.¶

Sample request

Save a file called data.json with the following payload.

{
    "tableId":"students",
    "datasetId":"Sample1",
    "projectId":"ei-connector-improvement"
}

curl -v POST -d @data.json "http://localhost:8290/resources/getdetails" -H "Content-Type:application/json"

Expected response

  // API callback
  callBackFunction({
    "kind": "bigquery#tableDataList",
    "etag": "CddYdG3ttrhpWPEGTOpKKg==",
    "totalRows": "0",
    "rows": [
      {
        "f": [
          {
            "v": "Kasun"
          },
          {
            "v": "25"
          }
        ]
      },
      {
        "f": [
          {
            "v": "Jhone"
          },
          {
            "v": "30"
          }
        ]
      }
    ]
  }
  );

Invoke an API to run an SQL query (BigQuery) and retrieve details from BigQuery table.¶

Sample request

Save a file called data.json with the following payload.

{
      "defaultDatasetId":"Sample1",
      "projectId":"ei-connector-improvement"
}

curl -v POST -d @data.json "http://localhost:8290/resources/runQuery" -H "Content-Type:application/json"

Expected response

   {
          "kind": "bigquery#queryResponse",
          "schema": {
              "fields": [
                  {
                      "name": "name",
                      "type": "STRING",
                      "mode": "NULLABLE"
                  },
                  {
                      "name": "age",
                      "type": "INTEGER",
                      "mode": "NULLABLE"
                  }
              ]
          },
          "jobReference": {
              "projectId": "ei-connector-improvement",
              "jobId": "job_YQS1kmzYpfBT-wKvkLi5uVbSL_Mh",
              "location": "US"
          },
          "totalRows": "2",
          "rows": [
              {
                  "f": [
                      {
                          "v": "Kasun"
                      },
                      {
                          "v": "25"
                      }
                  ]
              },
              {
                  "f": [
                      {
                          "v": "Jhone"
                      },
                      {
                          "v": "30"
                      }
                  ]
              }
          ],
          "totalBytesProcessed": "30",
          "jobComplete": true,
          "cacheHit": false
      }

What's next¶

To customize this example for your own scenario, see BigQuery Connector Reference Guide documentation for all operation details of the connector.
