Jira Connector Example

The Jira REST API enables you to interact with Jira programmatically. The WSO2 JIRA Connector allows you to access the REST resources available in Jira Cloud API Version v2 from an integration sequence.

What you'll build

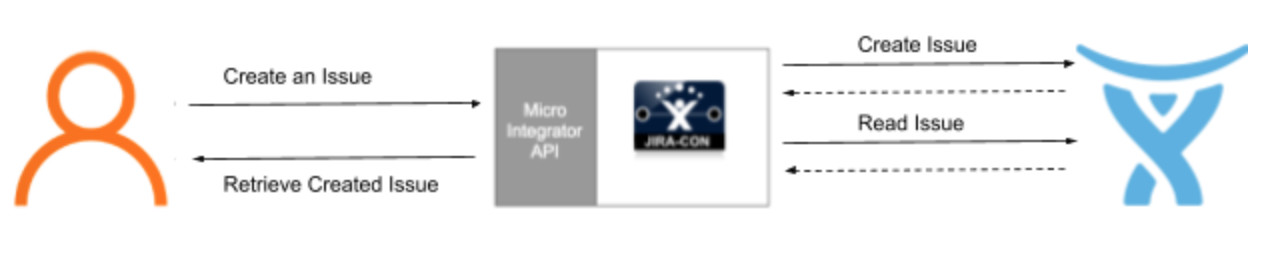

This example explains how to use the JIRA Connector to create an issue and read it.

You will use two HTTP API resources, which are createIssue and getIssue.

Calling insert operation

  • /createIssue: The user sends the request payload with the issue details (the project info, summary, description and the issue type). This request is sent to the integration runtime by invoking the Jira API. It creates the issue in the corresponding Jira account.

  • /getIssue: The user sends the request payload, which includes the issue id or key (that should be obtained from the createIssue API resource) and other parameters (fields and expand).

If you do not want to configure this yourself, you can simply get the project and run it.

Set up the integration project

Follow the steps in the create integration project guide to set up the Integration Project.

Create the integration logic

  1. Click + on the Extension panel APIs to create the REST API.

  2. Provide the API name as jiraAPI and the API context as /jira. You can go to the source view of the XML configuration file of the API and copy the following configuration. Adding a Rest API

  3. Click the /resource default endpoint to open the Resource View. Then click the + arrow below the Start node to open the side panel. Select Connectors and search for the Jira connector. Click the Jira connector to open the operation panel, then click init. This will download the connector. Adding a Jira Connector

  4. You can go to the source view (click the </> icon on the top right corner) of the XML configuration file of the API and copy the following configuration. Modify username, password and site url. For password you can use api key.

<?xml version="1.0" encoding="UTF-8"?>
<api context="/jira" name="jiraAPI" xmlns="http://ws.apache.org/ns/synapse">
    <resource methods="POST" uri-template="/createIssue">
        <inSequence>
            <property expression="json-eval($.issueFields)" name="issueFields" scope="default" type="JSON"/>
            <jira.init>
                    <username>****</username>
                    <password>****</password>
                    <uri>https://<site-url></uri>
            </jira.init>
            <jira.createIssue>
                <issueFields>{$ctx:issueFields}</issueFields>
            </jira.createIssue>
            <respond/>
        </inSequence>
        <faultSequence/>
    </resource>
    <resource methods="POST" uri-template="/getIssue">
        <inSequence>
        <property expression="json-eval($.id)" name="id" scope="default" type="JSON"/>
            <jira.init>
                    <username>****</username>
                    <password>****</password>
                    <uri>https://<site-url></uri>
            </jira.init>
            <jira.getIssue>
                <issueIdOrKey>{$ctx:id}</issueIdOrKey>
            </jira.getIssue>
            <respond/>
        </inSequence>
        <faultSequence/>
    </resource>
</api>

Get the project

You can download the ZIP file and extract the contents to get the project code.

Download ZIP

Deployment

Follow these steps to deploy the exported CApp in the integration runtime.

Deploying on Micro Integrator To deploy and run the project, refer to the Build and Run guide.

You can further refer the application deployed through the CLI tool. See the instructions on managing integrations from the CLI.

Testing

Create issue operation

  1. Create a file named createIssue.json with the following payload:

    {
        "issueFields":{
            "fields": {
                "project":{
                    "key": "<project-key>"
                },
                "summary": "For Testing",
                "description": "Test issue",
                "issuetype": {
                    "id": "6"
                }
            }
        }
    }


  2. Invoke the API using the following curl command.

    Info

    The Curl application can be downloaded from here.

    curl -H "Content-Type: application/json" --request POST --data @createIssue.json http://localhost:8290/jira/createIssue


    Expected Response : You should get a response as given below and the data will be added to the database.

    {
        "id": "340135",
        "key": "<project-key>-3400",
        "self": "https://<site-url>/jira/rest/api/2/issue/340135"
    }


Read issue operation

  1. Create a file named getIssue.json with the following payload:

    {
        "id": "<project-key>-3400"
    }

  2. Invoke the API using the curl command shown below.

    Info

    Curl application can be downloaded from here.

    curl -H "Content-Type: application/json" --request POST --data @getIssue.json http://localhost:8290/jira/getIssue


    Expected Response : You should get a response similar to the one given below.

    {
        "expand": "renderedFields,names,schema,operations,editmeta,changelog,versionedRepresentations",
        "id": "340135",
        "self": "https://<site-url>/jira/rest/api/2/issue/340135",
        "key": "<project-key>-3400",
        "fields": {
            "issuetype": {
                "self": "https://<site-url>/jira/rest/api/2/issuetype/6",
                "id": "6",
                "description": "A request for more information from ***",
                "iconUrl": "https://<site-url>/jira/images/icons/issuetypes/undefined.png",
                "name": "Query",
                "subtask": false
            },
            "timespent": null,
            "project": {
                "self": "https://<site-url>/jira/rest/api/2/project/11395",
                "id": "11395",
                "key": "<project-key>",
                "name": "Project Name",
                "avatarUrls": {
                    "48x48": "https://<site-url>/jira/secure/projectavatar?pid=11395&avatarId=10000",
                    "24x24": "https://<site-url>/jira/secure/projectavatar?size=small&pid=11395&avatarId=10000",
                    "16x16": "https://<site-url>/jira/secure/projectavatar?size=xsmall&pid=11395&avatarId=10000",
                    "32x32": "https://<site-url>/jira/secure/projectavatar?size=medium&pid=11395&avatarId=10000"
                },
                "projectCategory": {
                    "self": "https://<site-url>/jira/rest/api/2/projectCategory/10021",
                    "id": "10021",
                    "description": "Project Category Description",
                    "name": "Internal"
                }
            },
            "aggregatetimespent": null,
            "resolution": null,
            "customfield_10467": null,
            "resolutiondate": null,
            "workratio": -1,
            "lastViewed": "2021-02-18T20:48:28.596-0800",
            "watches": {
                "self": "https://<site-url>/jira/rest/api/2/issue/<project-key>-3400/watchers",
                "watchCount": 1,
                "isWatching": true
            },
            "created": "2021-02-18T20:46:03.000-0800",
            "customfield_10260": "2021-02-18 20:46:03.0",
            "customfield_10460": null,
            "customfield_10660": "{summaryBean=com.atlassian.jira.plugin.devstatus.rest.SummaryBean@6f87a945[summary={pullrequest=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@5f248a01[overall=PullRequestOverallBean{stateCount=0, state='OPEN', details=PullRequestOverallDetails{openCount=0, mergedCount=0, declinedCount=0}},byInstanceType={}], build=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@71ad9d41[overall=com.atlassian.jira.plugin.devstatus.summary.beans.BuildOverallBean@aa275f7[failedBuildCount=0,successfulBuildCount=0,unknownBuildCount=0,count=0,lastUpdated=<null>,lastUpdatedTimestamp=<null>],byInstanceType={}], review=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@2498a36c[overall=com.atlassian.jira.plugin.devstatus.summary.beans.ReviewsOverallBean@1130f741[stateCount=0,state=<null>,dueDate=<null>,overDue=false,count=0,lastUpdated=<null>,lastUpdatedTimestamp=<null>],byInstanceType={}], deployment-environment=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@cea37b3[overall=com.atlassian.jira.plugin.devstatus.summary.beans.DeploymentOverallBean@157ef614[topEnvironments=[],showProjects=false,successfulCount=0,count=0,lastUpdated=<null>,lastUpdatedTimestamp=<null>],byInstanceType={}], repository=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@741ca414[overall=com.atlassian.jira.plugin.devstatus.summary.beans.CommitOverallBean@6280df29[count=0,lastUpdated=<null>,lastUpdatedTimestamp=<null>],byInstanceType={}], branch=com.atlassian.jira.plugin.devstatus.rest.SummaryItemBean@3f8a2b65[overall=com.atlassian.jira.plugin.devstatus.summary.beans.BranchOverallBean@5d26b4d6[count=0,lastUpdated=<null>,lastUpdatedTimestamp=<null>],byInstanceType={}]},errors=[],configErrors=[]], devSummaryJson={\"cachedValue\":{\"errors\":[],\"configErrors\":[],\"summary\":{\"pullrequest\":{\"overall\":{\"count\":0,\"lastUpdated\":null,\"stateCount\":0,\"state\":\"OPEN\",\"details\":{\"openCount\":0,\"mergedCount\":0,\"declinedCount\":0,\"total\":0},\"open\":true},\"byInstanceType\":{}},\"build\":{\"overall\":{\"count\":0,\"lastUpdated\":null,\"failedBuildCount\":0,\"successfulBuildCount\":0,\"unknownBuildCount\":0},\"byInstanceType\":{}},\"review\":{\"overall\":{\"count\":0,\"lastUpdated\":null,\"stateCount\":0,\"state\":null,\"dueDate\":null,\"overDue\":false,\"completed\":false},\"byInstanceType\":{}},\"deployment-environment\":{\"overall\":{\"count\":0,\"lastUpdated\":null,\"topEnvironments\":[],\"showProjects\":false,\"successfulCount\":0},\"byInstanceType\":{}},\"repository\":{\"overall\":{\"count\":0,\"lastUpdated\":null},\"byInstanceType\":{}},\"branch\":{\"overall\":{\"count\":0,\"lastUpdated\":null},\"byInstanceType\":{}}}},\"isStale\":false}}",
            "customfield_10980": null,
            "customfield_10464": null,
            "customfield_10860": "<div>\r\n\t<div class=\"aui-message aui-message-generic generic draft-message\">\r\n\t\t<div class=\"message-content\">\r\n\t\t\t<div class=\"message-container\">\r\n\t\t\t<p>Closing an issue indicates that there is no more work to be done on it, if you have any questions regarding this announcement, you can raise a query ticket and team will attend</p>\r\n\t\t\t</div>\r\n\t\t\t<ul class=\"actions-list\"></ul>\r\n\t\t</div>\r\n\t</div>\r\n</div>",
            "customfield_10981": null,
            "customfield_10465": "0|i0suzb:",
            "customfield_10982": null,
            "labels": [],
            "customfield_10466": null,
            "customfield_10973": null,
            "customfield_10974": null,
            "customfield_10975": null,
            "customfield_10976": null,
            "customfield_10977": null,
            "timeestimate": null,
            "aggregatetimeoriginalestimate": null,
            "customfield_10978": null,
            "customfield_10979": null,
            "issuelinks": [],
            "assignee": {
                "self": "https://<site-url>/jira/rest/api/2/user?username=portal-admin%40***.com",
                "name": "portal-admin@***.com",
                "key": "portal-admin@***.com",
                "emailAddress": "portal-admin@***.com",
                "avatarUrls": {
                    "48x48": "https://<site-url>/jira/secure/useravatar?avatarId=10432",
                    "24x24": "https://<site-url>/jira/secure/useravatar?size=small&avatarId=10432",
                    "16x16": "https://<site-url>/jira/secure/useravatar?size=xsmall&avatarId=10432",
                    "32x32": "https://<site-url>/jira/secure/useravatar?size=medium&avatarId=10432"
                },
                "displayName": "Portal Admin",
                "active": true,
                "timeZone": "PST"
            },
            "updated": "2021-02-18T20:46:03.000-0800",
            "status": {
                "self": "https://<site-url>/jira/rest/api/2/status/1",
                "description": "The issue is open and ready for the assignee to start work on it.",
                "iconUrl": "https://<site-url>/jira/images/icons/statuses/open.png",
                "name": "Open",
                "id": "1",
                "statusCategory": {
                    "self": "https://<site-url>/jira/rest/api/2/statuscategory/2",
                    "id": 2,
                    "key": "new",
                    "colorName": "blue-gray",
                    "name": "To Do"
                }
            },
            "components": [],
            "customfield_10051": [
                "portal-admin@***.com(portal-admin@***.com)",
                "****(****)"
            ],
            "timeoriginalestimate": null,
            "customfield_10052": null,
            "description": "Test issue",
            "customfield_10053": "****(****)",
            "customfield_10054": "true",
            "customfield_10011": null,
            "customfield_10055": "8126",
            "customfield_10012": null,
            "customfield_10970": null,
            "customfield_10971": null,
            "timetracking": {},
            "customfield_10972": null,
            "customfield_10962": "2021-02-18",
            "customfield_10963": null,
            "customfield_10964": null,
            "customfield_10965": null,
            "attachment": [],
            "customfield_10966": null,
            "aggregatetimeestimate": null,
            "customfield_10967": null,
            "customfield_10968": null,
            "customfield_10969": null,
            "summary": "For Testing",
            "creator": {
                "self": "https://<site-url>/jira/rest/api/2/user?username=****",
                "name": "****",
                "key": "****",
                "emailAddress": "****@***.com",
                "avatarUrls": {
                    "48x48": "https://<site-url>/jira/secure/useravatar?avatarId=10432",
                    "24x24": "https://<site-url>/jira/secure/useravatar?size=small&avatarId=10432",
                    "16x16": "https://<site-url>/jira/secure/useravatar?size=xsmall&avatarId=10432",
                    "32x32": "https://<site-url>/jira/secure/useravatar?size=medium&avatarId=10432"
                },
                "displayName": "****",
                "active": true,
                "timeZone": "PST"
            },
            "subtasks": [],
            "customfield_10360": null,
            "customfield_10361": null,
            "reporter": {
                "self": "https://<site-url>/jira/rest/api/2/user?username=****",
                "name": "****",
                "key": "****",
                "emailAddress": "****@***.com",
                "avatarUrls": {
                    "48x48": "https://<site-url>/jira/secure/useravatar?avatarId=10432",
                    "24x24": "https://<site-url>/jira/secure/useravatar?size=small&avatarId=10432",
                    "16x16": "https://<site-url>/jira/secure/useravatar?size=xsmall&avatarId=10432",
                    "32x32": "https://<site-url>/jira/secure/useravatar?size=medium&avatarId=10432"
                },
                "displayName": "****",
                "active": true,
                "timeZone": "PST"
            },
            "customfield_10363": null,
            "aggregateprogress": {
                "progress": 0,
                "total": 0
            },
            "customfield_10364": null,
            "customfield_10365": null,
            "customfield_10366": null,
            "customfield_10960": null,
            "environment": null,
            "progress": {
                "progress": 0,
                "total": 0
            },
            "comment": {
                "comments": [],
                "maxResults": 0,
                "total": 0,
                "startAt": 0
            },
            "votes": {
                "self": "https://<site-url>/jira/rest/api/2/issue/<project-key>-3400/votes",
                "votes": 0,
                "hasVoted": false
            },
            "worklog": {
                "startAt": 0,
                "maxResults": 20,
                "total": 0,
                "worklogs": []
            }
        }
    }
