Create a Unit Test Suite

Once you have developed an integration solution, WSO2 Micro Integrator VS Code Extension allows you to build unit tests for the following:

Create Unit Test Suite

  1. Download and install the Micro Integrator server and on your computer.
  2. Launch Visual Studio Code with the Micro Integrator Extension installed.
  3. Select the Testing extension from the left side panel to view the Test Explorer.
  4. Click on Add New Test Suite in the Test Explorer.

    add test suite

  5. Specify a name for the unit test suite.

  6. Then, select the artifact type that you want to test in order to get the list of artifacts for the selected type.

    Note

    You can only select one sequence or API artifact per unit test suite.

  7. Select the artifact to which you want to write the test cases.

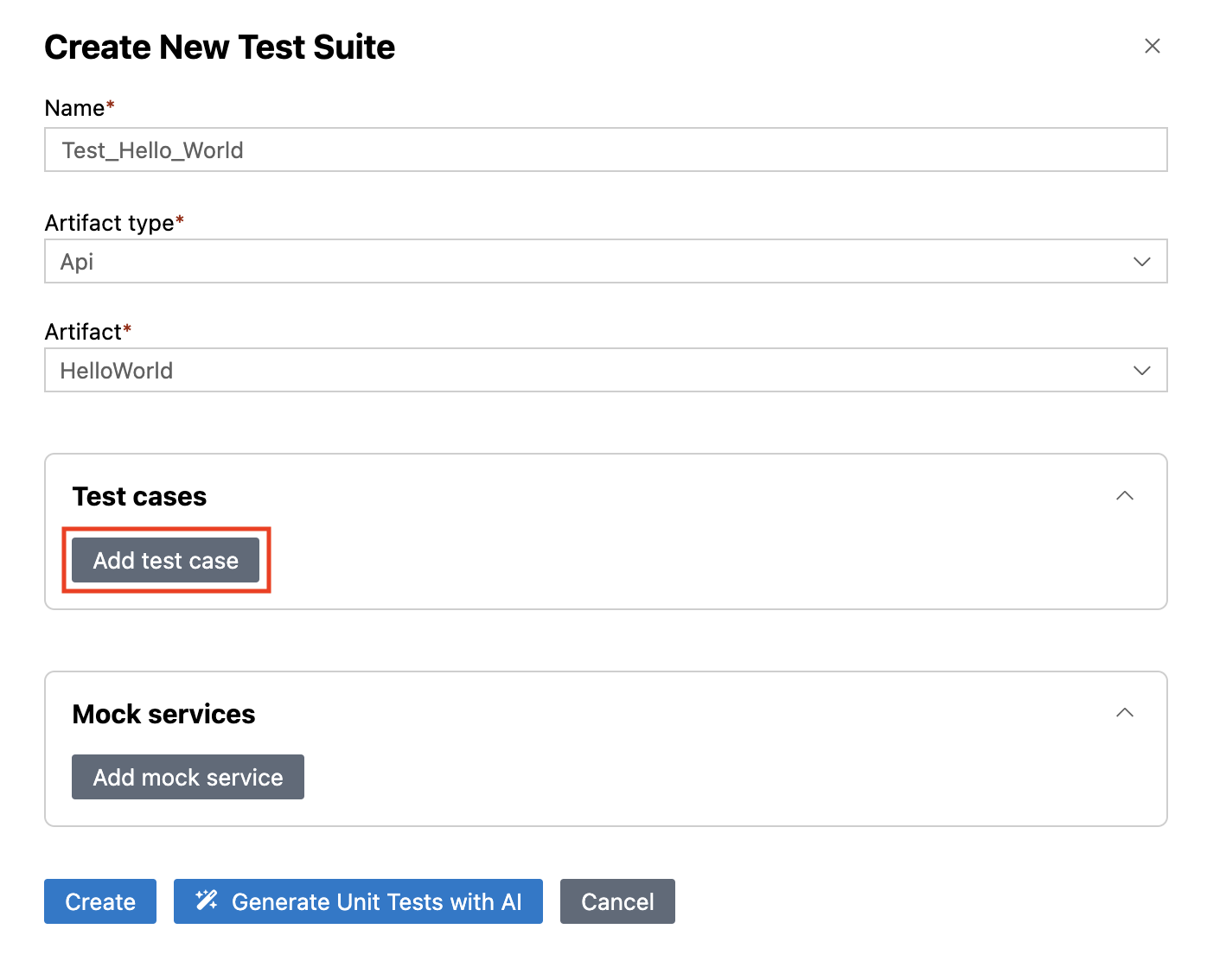

  8. To add a new test case to the test suite, click on Add test case.

    add test case

  9. Enter the following information:

    1. Enter a name for the test case.

      Note

      For APIs, you also need to specify the Request Path and Request Method in this section. The Request Path indicates the URL mapping of the API resource. If the URL mapping consists some parameter(s), replace those with values. Also the Request Method indicates the REST method of the resource.

    2. Update the Input Payload and Properties section:

      • Input Payload: The input payload of the test case. This can be JSON, XML, or plain text.
      • Input properties: The input properties of the test case. There are three types of properties allowed in unit testing: Synapse(ctx), Axis2(axis2), and Transport($trp) properties.

      add property

      Note

      For sequences, the test suite allows to add all type of properties with the value. But for APIs you are only allowed to add transport properties.

      new property

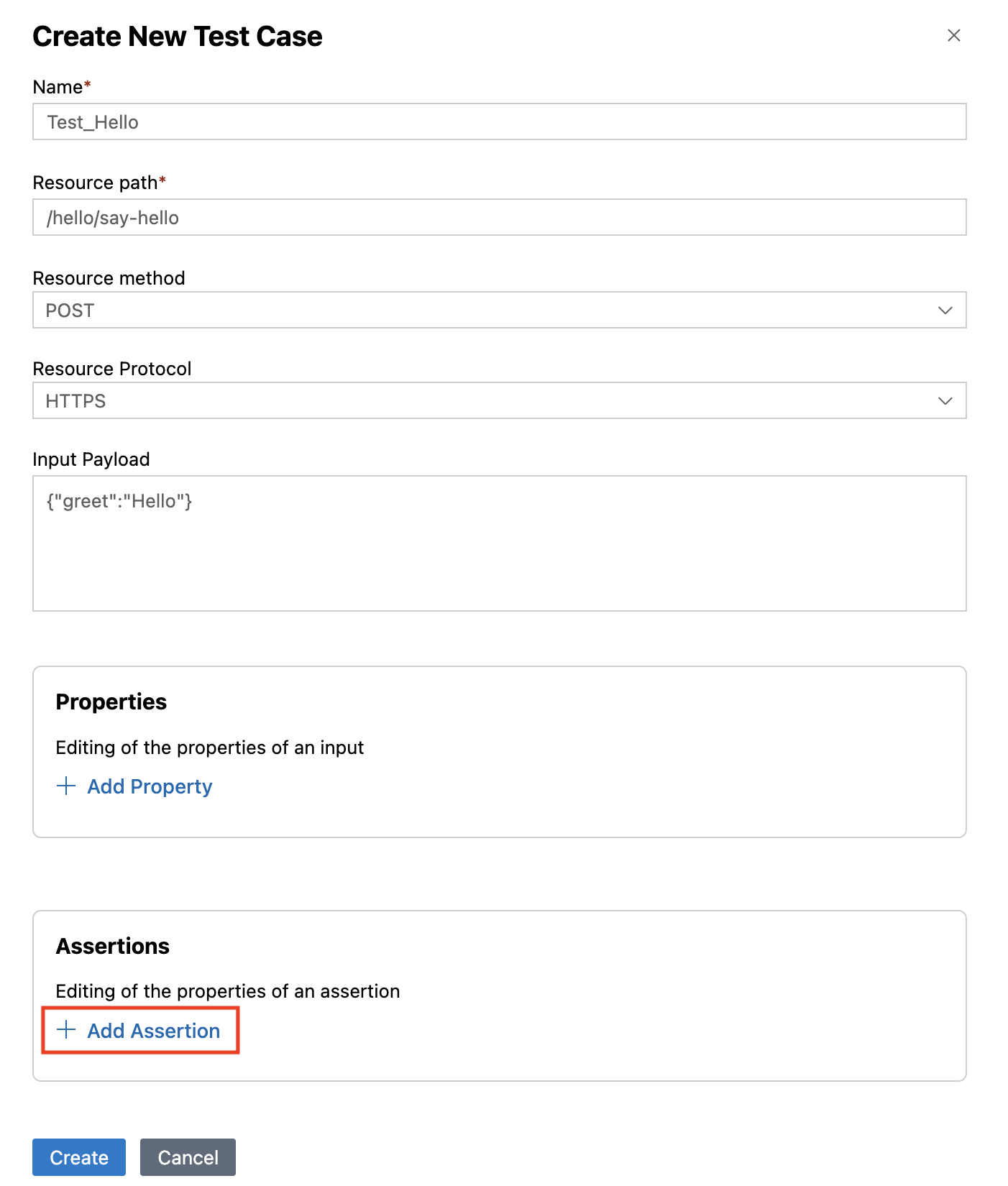

    3. In the Assertions section, you can add multiple assertions belonging to two types. AssertEquals to check the whether the mediated result and expected values are equal. AssertNotNull to check whether the mediated result is not null.

      add assertion

    4. Fill the following information for each assertion.

      • Assertion Type: Type of the assertion.
      • Actual Expression: Expression that you want to assert.

        • $body: assert the payload
        • $ctx:: assert synapse property
        • $axis2:: assert axis2 property
        • $trp:: assert transport property
        • $statusCode: assert status code of the service
        • $httpVersion: assert http version of the service
      • Expected Value: Expected value for the actual expression. Type can be a JSON, XML or a plain text.

      • Error Message: Error message to print when the assertion is failed.

      new assertion

    5. Once you have added at least one assertion, click on Create to save the unit test case.

      completed test case

  10. To add a mock service to the test suite, click on Add mock service.

    completed test case

  11. You can use a mock service to simulate the actual endpoint. If you have an already created mock service, select the mock service from the list existing mock services as shown below or create a new mock service.

    existing mock service

  12. Once the required information is completed, click on Create.

    completed test suite

Create Mock Service

  1. From the dropdown which has the existing list of mock services, select Create New.

    add mock service

  2. Enter the following information:

    • Name of the Mock Service: A name for the mock service.
    • Mocking Endpoint Name: Endpoint name which wants to mock.
    • Mock Service Port: Port for the mock service.
    • Mock Service Context: Main context for the service starts with '/'.
  3. Add multiple resources for the mock service as needed. To add multiple resources click the Add mock service resource button.

    add mock resource

  4. Enter the following information for the mock resource:

    • Service Sub Context: Sub context of the resource starts with '/'.
    • Service Method: REST method type of the resource.
  5. Fill the Expected request to resource section if you want to mock an endpoint based on the coming request headers or payload.

    • Header Name: Expected request header name.
    • Header Value: Expected request header value.
    • Expected Request Payload: Expected request payload to the service.

    Info

    Entered request headers/payload must be matched with the request to send the response this mock service.

  6. Fill the Expected response from resource section to get a response from the service.

    • Response Status Code: Response status code of the mock service.
    • Header Name: Response request header name.
    • Header Value: Response request header value.
    • Expected Response Payload: Expected response payload from the service.
  7. Once the required information is completed in the Mock Resource Configuration page, click on Submit.

    completed mock resource

  8. Review the information given and click on Submit to complete the mock service creation.

    completed mock service

Info

Please note that the mock service should have a sub context with '/' defined, and additional sub contexts should be defined after that.

  • If you are trying to mock an endpoint http://petstore.com/pets where the mock service context is /pet, the sub-context should be /.
  • If you are trying to mock an endpoint http://petstore.com/pets/id where the mock service context is /pet, the sub-context should be /id.

Update Unit Test Suite

  1. Switch to the Testing extension from the left side panel of the VS Code to view the Test Explorer in which the existing test suites will be listed.
  2. Click on the Diagram icon which is on the right side of any given unit test suite in order to update it by following the steps similar to its creation process.

    update test

Run Unit Test Suite

  1. Switch to the Testing extension from the left side panel of the VS Code to view the Test Explorer in which the existing test suites will be listed.
  2. Click on the Run icon which is on the right side of any given unit test suite in order to run it and get the test results.

    run test

Note

Within the WSO2 MI VS Code Extension an option is given to generate the unit test suite for a selected artifact using AI.

To use this option, in the Create New Test Suite page click on the Generate Unit Tests with AI button after giving a name for the test suite and selecting the artifact to be used for the test suite.

generate test

Note

Additionally, you can run unit tests from you command line interface (CLI) by following the steps:

  1. Run a separate Micro Integrator Instance in unit testing mode. To start the server in unit testing mode you can pass the argument -DsynapseTest as below. If you want to change the synapse testing port, you can pass the -DsynapseTestPort=<new Port> argument. Default port is 9008. It is recommended to run on a new MI server without any previously deployed integrations to avoid conflicts.

    sh micro-integrator.sh -DsynapseTest

  2. Navigate to integration project location and run the following command.

    mvn clean install -DtestServerType=remote -DtestServerHost=localhost -DtestServerPort=9008 -P test
