Message Endpoint

This page explains how you can implement a sample scenario of Message Endpoint EIP using WSO2 Micro Integrator.

Introduction to Message Endpoint EIP

The Message Endpoint EIP encapsulates the messaging system from the rest of the application and customizes a general messaging API for a specific application and task. Therefore, you can change the message API just by changing the endpoint code. This improves the maintainability of applications.

Info

For more information, see the Message Endpoint documentation.

Sample scenario

The example scenario depicts how a stock quote is generated when a request is sent to the WSO2 MI. The sender sends the request to the WSO2 MI, where the request is then diverted to the Stock Quote service.

Message endpoint pattern

Synapse configurations of the artifacts

Note

When you unzip the ZIP file you downloaded below in step 7 when simulating the sample scenario, you can find the below configurations in the <UNZIPPED_FILE>/src/main/wso2mi/artifacts directory. For more information about these artifacts, go to Develop Integration Solutions.

<proxy name="message-endpoint-proxy" startOnLoad="true" transports="http https"
    xmlns="http://ws.apache.org/ns/synapse">
    <target>
        <inSequence>
            <!-- Sends the message to the specified service -->
            <call>
                <endpoint key="StockService"/>
            </call>
            <respond/>
        </inSequence>
    </target>
</proxy>

<?xml version="1.0" encoding="UTF-8"?>
<endpoint name="StockService" xmlns="http://ws.apache.org/ns/synapse">
    <address uri="http://localhost:9000/services/SimpleStockQuoteService">
    </address>
</endpoint>

Set up the sample scenario

Follow the below instructions to simulate this sample scenario.

  1. Install WSO2 Micro Integrator.

    Info

    Follow the Install the Micro Integrator Runtime documentation for more information.

  2. Launch Visual Studio Code with the Micro Integrator for VS Code extension (MI for VS Code) installed.

    Info

    Follow the Install Micro Integrator for VS Code documentation for a complete installation guide.

  3. Download the backend service.

  4. Extract the downloaded zip file.

  5. Open a terminal, and navigate to the axis2Server/bin/ directory inside the extracted folder.

  6. Execute the following command to start the axis2server with the SimpleStockQuote backend service:

    sh axis2server.sh

    axis2server.bat

  7. Download the artifacts of the sample.

    Download ZIP

  8. Import the artifacts to WSO2 MI.

    Click File -> Open Folder -> Select the extracted ZIP file to import the downloaded ZIP file.

  9. Start the project in the WSO2 MI server.

    For instructions, go to Build and Run Documentation.

  10. Start SoapUI.

    For instructions on downloading and starting, go to SoapUI Getting Started Documentation.

Execute the sample

Send the following request to the service using SoapUI (or any other SOAP client).

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.samples" xmlns:xsd="http://services.samples/xsd">
   <soapenv:Header/>
   <soapenv:Body>
      <ser:getQuote>
         <ser:request>
            <xsd:symbol>foo</xsd:symbol>
         </ser:request>
      </ser:getQuote>
   </soapenv:Body>
</soapenv:Envelope>

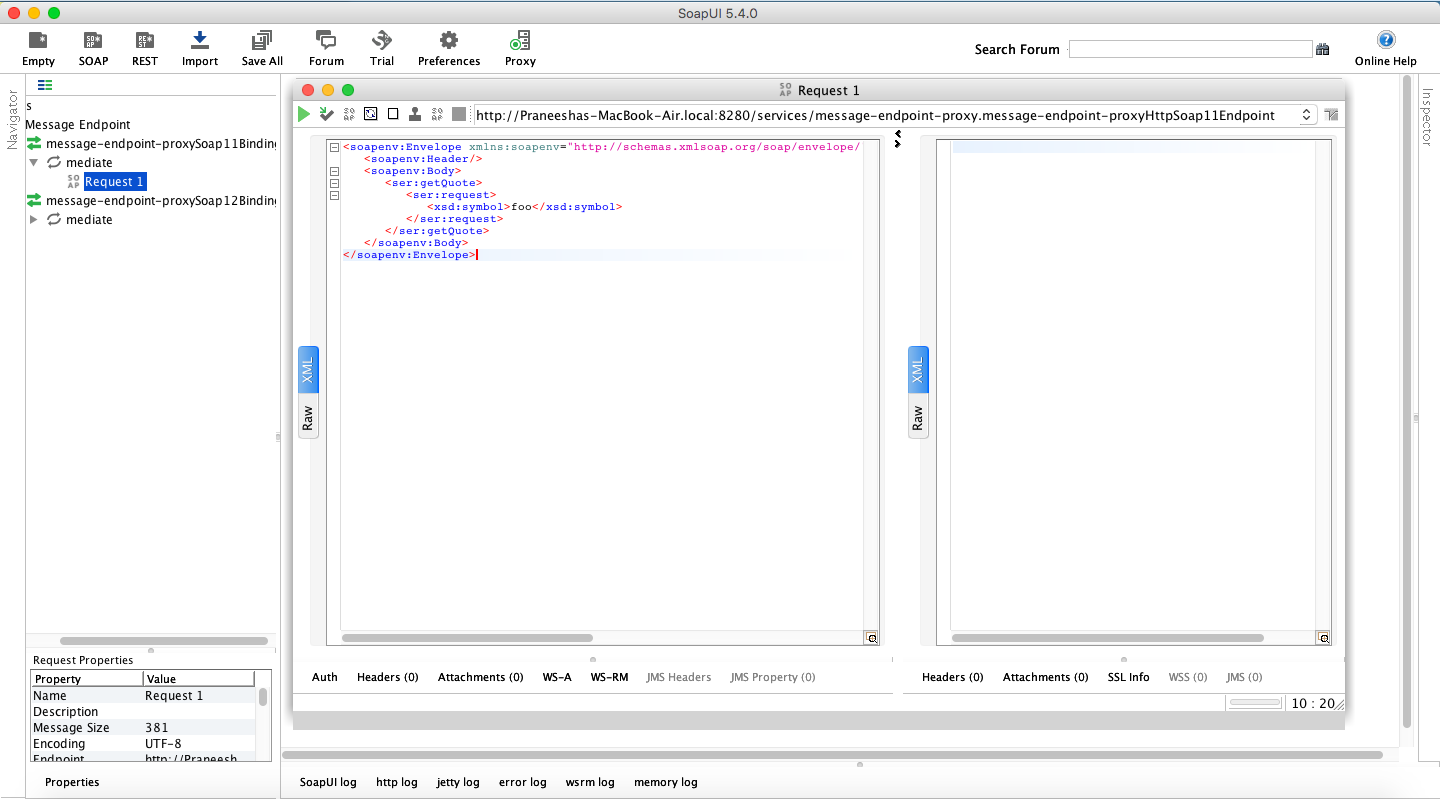

Message endpoint request

Analyze the output

After sending the request to the service through the client, notice that the request is successfully generated in the Stock Quote server. The following output will be printed on the Axis2 server's Console, confirming that the request is successfully received by the backend service.

Tue Aug 06 15:20:41 IST 2024 samples.services.SimpleStockQuoteService :: Generating quote for : foo

You can view the response in the SOAPUI as follows.

Message endpoint output
