Document Message

This page explains how you can implement a sample scenario of the Document Message EIP using WSO2 Micro Integrator.

Introduction to Document Message

The Document Message EIP is used to reliably transfer a data structure between applications. The Command Message EIP allows you to invoke only a specific client through the WSO2 MI, while the Document Message EIP sends the entire data unit to the receiver.

Info

For more information, see the Document Message documentation.

Document message

Sample scenario

This example demonstrates transmitting an entire message from a client to a sample Axis2 server as a document message, which the Axis2 server processes so it can identify which operation to invoke.

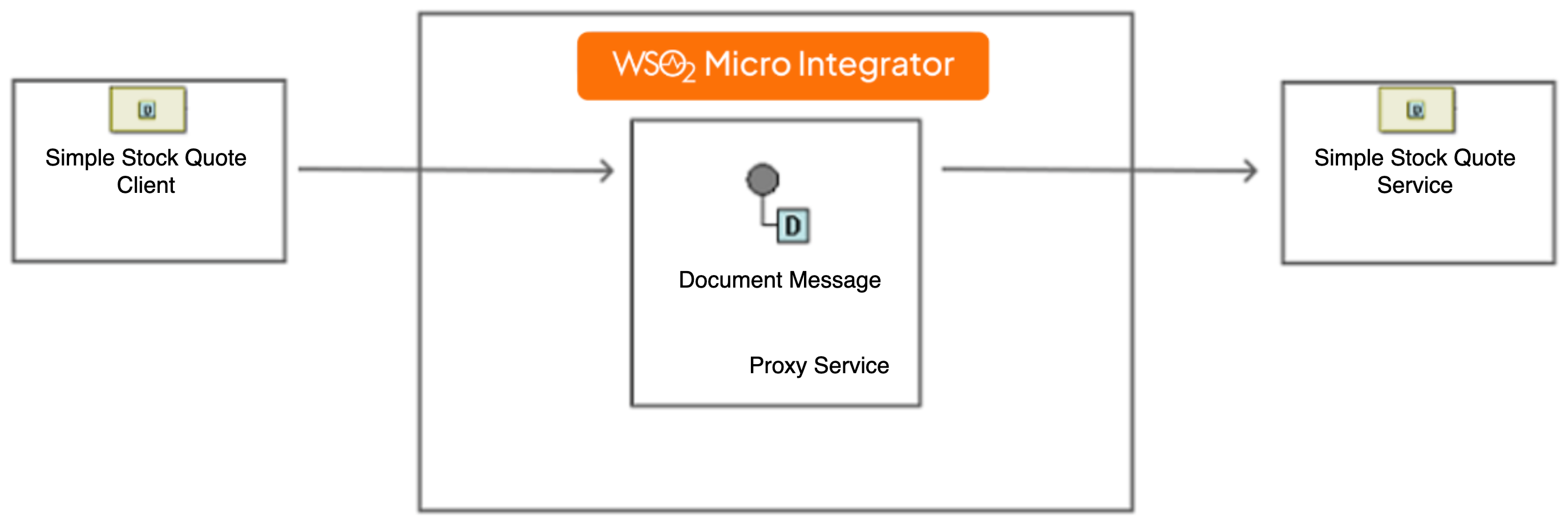

The diagram below depicts how to simulate the example scenario using the WSO2 MI.

Document message

Before digging into implementation details, let's take a look at the relationship between the example scenario and the Document Message EIP by comparing their core components.

Document Message EIP Document Message Example Scenario
Sender Stock Quote Client
Document Message Proxy Service
Receiver Simple Stock Quote Service Instance

Synapse configuration of the artifacts

Given below is the synapse configuration of this sample.

<?xml version="1.0" encoding="UTF-8"?>
<proxy name="DocumentMessageProxy" startOnLoad="true" transports="http https" xmlns="http://ws.apache.org/ns/synapse">
    <target>
    <inSequence>
        <call>
            <endpoint key="SimpleStockEp"/>
        </call>
        <respond/>
    </inSequence>
    <faultSequence/>
    </target>
</proxy>

<?xml version="1.0" encoding="UTF-8"?>
<endpoint name="SimpleStockEp" xmlns="http://ws.apache.org/ns/synapse">
    <address uri="http://localhost:9000/services/SimpleStockQuoteService">
    <suspendOnFailure>
        <initialDuration>-1</initialDuration>
        <progressionFactor>1</progressionFactor>
    </suspendOnFailure>
    <markForSuspension>
        <retriesBeforeSuspension>0</retriesBeforeSuspension>
    </markForSuspension>
    </address>
</endpoint>

Let's investigate the elements of the configuration in detail.

  • Proxy Service - The proxy service receives requests and forwards them to the backend service, abstracting the routing logic from the client. In this example scenario, the proxy service simply forwards requests to the backend service following the Document Message EIP style.

Set up the sample scenario

Follow the below instructions to simulate this sample scenario.

  1. Install WSO2 Micro Integrator.

    Info

    Follow the Install the Micro Integrator Runtime documentation for more information.

  2. Launch Visual Studio Code with the Micro Integrator for VS Code extension (MI for VS Code) installed.

    Info

    Follow the Install Micro Integrator for VS Code documentation for a complete installation guide.

  3. Download the backend service.

  4. Extract the downloaded zip file.

  5. Open a terminal, and navigate to the axis2Server/bin/ directory inside the extracted folder.

  6. Execute the following command to start the axis2server with the SimpleStockQuote backend service:

    sh axis2server.sh

    axis2server.bat

  7. Download the artifacts of the sample.

    Download ZIP

  8. Import the artifacts to WSO2 MI.

    Click File -> Open Folder -> Select the extracted ZIP file to import the downloaded ZIP file.

  9. Start the project in the WSO2 MI server.

    For instructions, go to Build and Run Documentation.

Execute the sample

Send the following request to the above proxy service.

POST /services/DocumentMessageProxy HTTP/1.1
Host: localhost:8290
Content-Type: text/xml
soapAction: urn:getQuote

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
   <soapenv:Header/>
   <soapenv:Body>
      <ser:getQuote xmlns:ser="http://services.samples">
         <ser:request>
            <ser:symbol>IBM</ser:symbol>
         </ser:request>
      </ser:getQuote>
   </soapenv:Body>
</soapenv:Envelope>

Analyze the output

A message similar to the one below appears in the Axis2 server.

Tue Aug 13 12:31:38 IST 2024 samples.services.SimpleStockQuoteService :: Generating quote for : IBM

You can view the response as follows.

<?xml version='1.0' encoding='UTF-8'?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
    <soapenv:Header/>
    <soapenv:Body>
        <ns:getQuoteResponse xmlns:ns="http://services.samples">
            <ns:return xmlns:ax21="http://services.samples/xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="ax21:GetQuoteResponse">
                <ax21:change>-2.411510818596997</ax21:change>
                <ax21:earnings>12.65693310695867</ax21:earnings>
                <ax21:high>-172.45667702244614</ax21:high>
                <ax21:last>175.58040593328195</ax21:last>
                <ax21:lastTradeTimestamp>Tue Aug 13 12:31:38 IST 2024</ax21:lastTradeTimestamp>
                <ax21:low>-174.48462741220598</ax21:low>
                <ax21:marketCap>3.604055175262325E7</ax21:marketCap>
                <ax21:name>IBM Company</ax21:name>
                <ax21:open>180.7317908133331</ax21:open>
                <ax21:peRatio>23.49701102462313</ax21:peRatio>
                <ax21:percentageChange>1.4361628534032258</ax21:percentageChange>
                <ax21:prevClose>-167.91346558522403</ax21:prevClose>
                <ax21:symbol>IBM</ax21:symbol>
                <ax21:volume>5558</ax21:volume>
            </ns:return>
        </ns:getQuoteResponse>
    </soapenv:Body>
</soapenv:Envelope>
