Amazon DynamoDB Connector Example¶

Amazon DynamoDB Connector allows you to access the Amazon DynamoDB REST API from an integration sequence.

What you'll build¶

Given below is a sample scenario that demonstrates how to work with the Amazon DynamoDB Connector and how to perform various table and items operations with Amazon DynamoDB.

This example explains how to use Amazon DynamoDB Connector to:

Create a table (a location for storing employee details) in Amazon DynamoDB.
Insert employee details (items) into the created table.
Update the employee details table.
Retrieve information about the inserted employee details (items).
Remove inserted employee details (items).
Retrieve the list of tables.
Remove the created employee details table.

All seven operations are exposed via an API. The API with the context /resources has seven resources.

/addtable : Create a new table in the Amazon DynamoDB with the specified table name to store employee details.
/insertdetails : Insert employee data (items) and store in the specified table.
/updatetable : Update the specified table (provisioned throughput settings, global secondary indexes, or DynamoDB Streams settings for a specified table).
/listdetails : Retrieve information about the added employee details (items).
/deletedetails : Remove added employee details from the specified table (items).
/listtable : Retrieve information about the created tables.
/deletetable : Remove the created table in the Amazon DynamoDB.

For more information about these operations, please refer to the Amazon DynamoDB connector reference guide.

Note: Before invoking the API, you need to configure message builders/formatters in deployment.toml. See Setting up the Amazon DynamoDB Connector documentation for more information.

The following diagram shows the overall solution. The user creates a table, stores some employee details (items) into the table, and then receives it back. To invoke each operation, the user uses the same API.

Amazon DynamoDB connector example

If you do not want to configure this yourself, you can simply get the project and run it.

Set up the integration project¶

Follow the steps in the Creating an Integration Project guide to set up the Integration Project.

Add integration logic¶

Follow the Creating a REST API guide to create a REST API. Specify the API name as amazonDynamoDBAPI and the API context as /resources.

Configure the API¶

Configure a resource for the addtable operation¶

Create the /addtable resource. For guidance, refer to the Adding new API resources guide. Use the following details when configuring the resource.
- URI Template: /addtable
- HTTP Method: POST
Select the addTable resource. Click on the + icon on the canvas to open the Mediator Palette and search for the DynamoDB connector.
After downloading, you can see the DynamoDB connector in the mediator palette. Click on the Add table operation under the DynamoDB connector.
Then, click on Add new connection to create a new DynamoDB Connection.

Following values can be provided when connecting to the DynamoDB database.
- region : The region of the application access.
- accessKeyId : The AWS secret access key.
- secretAccessKey : The AWS accessKeyId of the user account to generate the signature.
- blocking : Boolean type, this property helps the connector perform blocking invocations to AmazonDynamoDB.

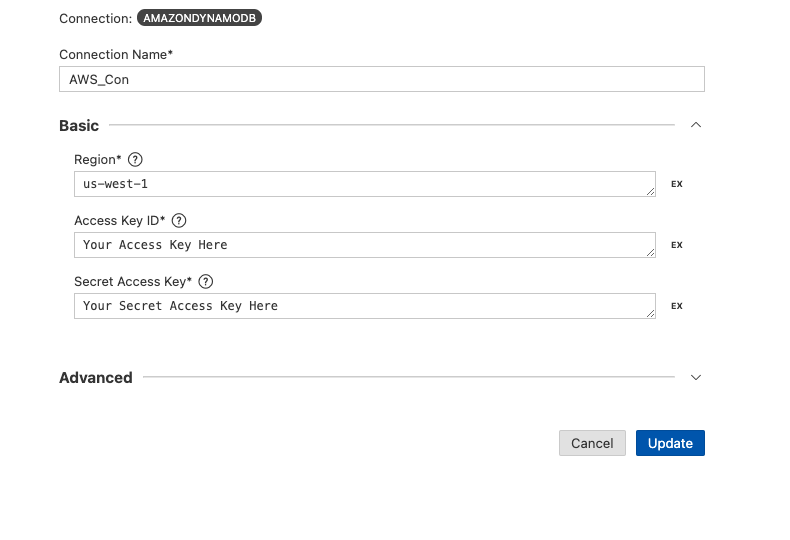

Click on Add to create the connection. You can see the created connection in the Connection drop-down list. Select the created connection from the list.

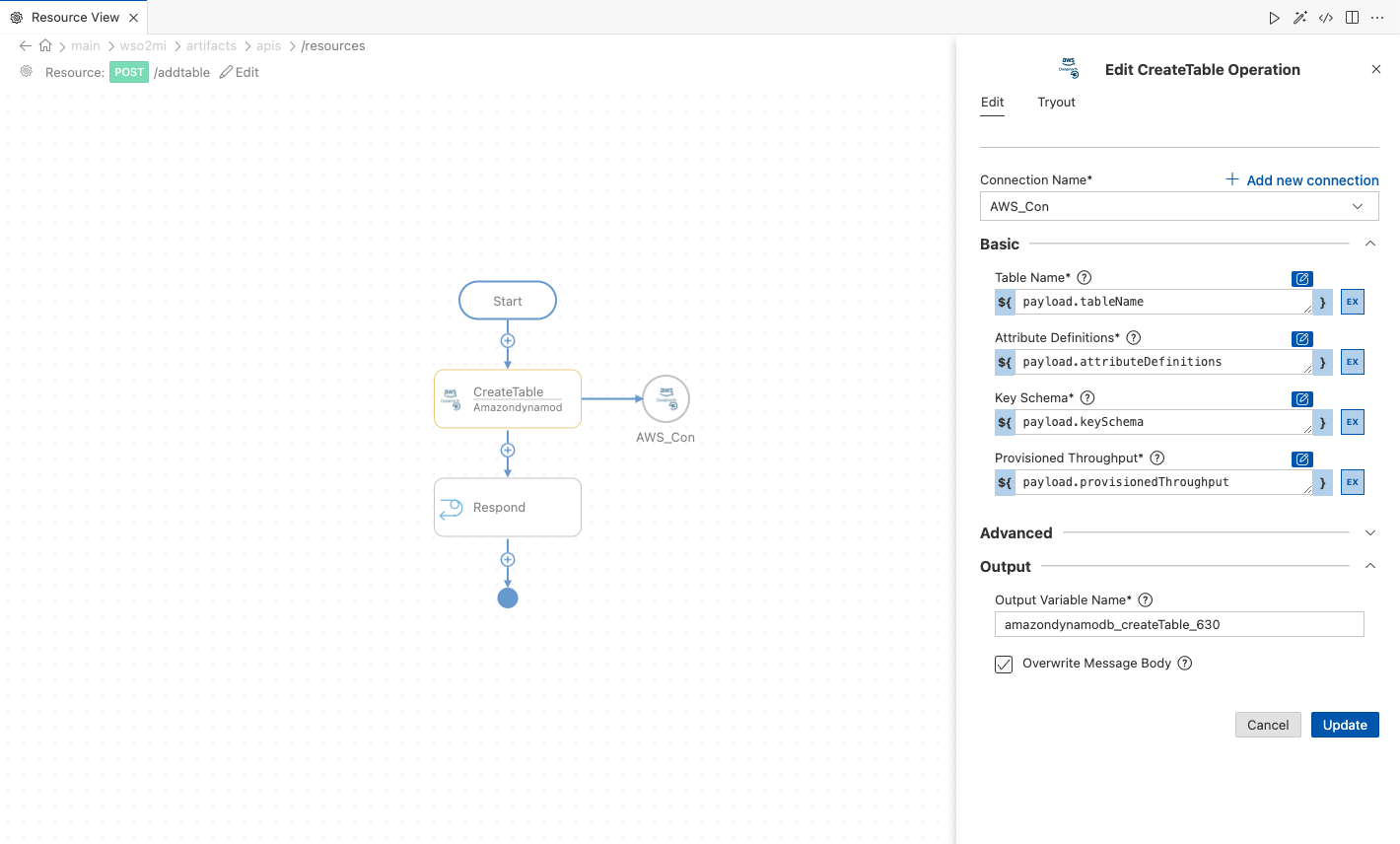

Configure the Add Table operation by providing values for the following fields.
- attributeDefinitions : A list of attributes that describe the key schema for the table and indexes. If you are adding a new global secondary index to the table, AttributeDefinitions should include the key element(s) of the new index.
- tableName : The name of the table to create.
- keySchema : Specifies the attributes that make up the primary key for a table or an index. The attributes in keySchema must also be defined in attributeDefinitions.
- localSecondaryIndexes : One or more local secondary indexes (the maximum is five) to be created on the table. Each index is scoped to a given partition key value. There is a 10 GB size limit per partition key value. Alternately, the size of a local secondary index is unconstrained.
- provisionedThroughput : Represents the provisioned throughput setting for a specified table or index.
While invoking the API, the above five parameter values come as user input.
- attributeDefinitions : payload.attributeDefinitions
- tableName : payload.tableName
- keySchema : payload.keySchema
- localSecondaryIndexes : payload.localSecondaryIndexes
- provisionedThroughput : payload.provisionedThroughput
To store the response of the operation in the message body, select Overwrite Message Body in the Output Section. This will allow you to send the response back to the user as a response of the API invocation.
Send a response to the user.

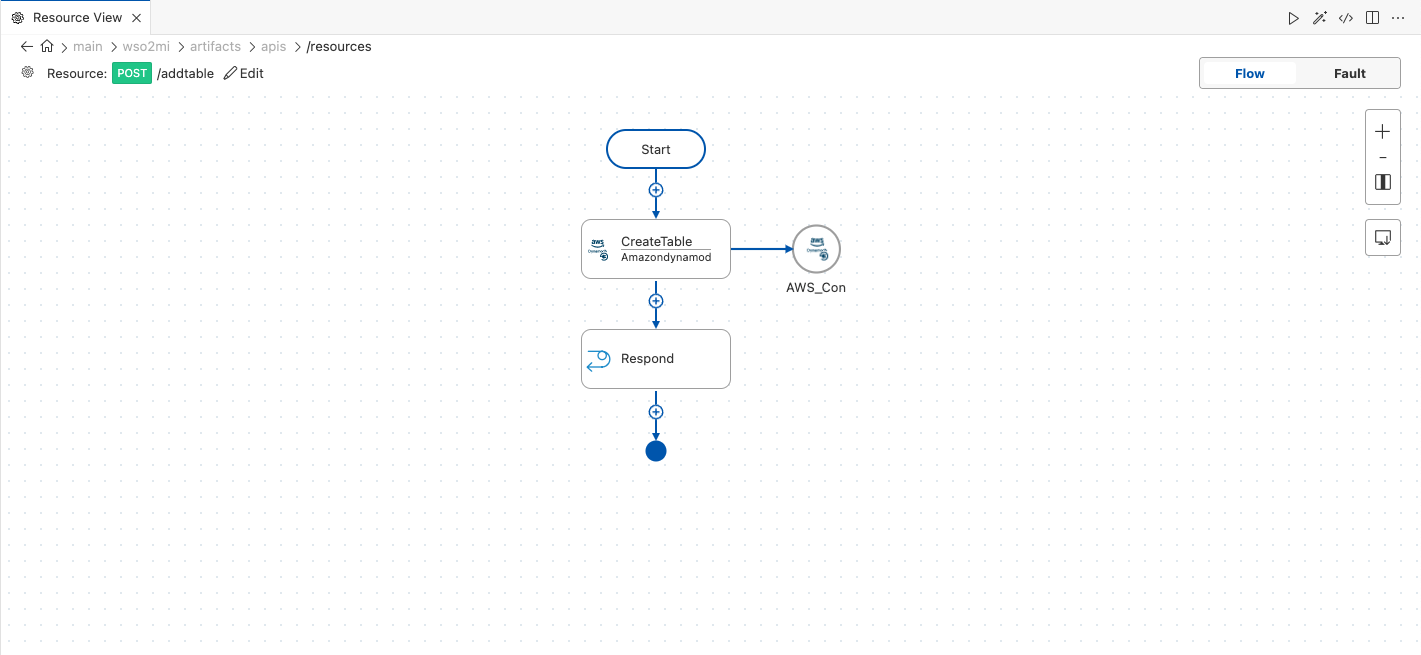

Add Respond mediator after the above operation.

Configure a resource for the insertdetails operation¶

Navigate into the Mediators pane and select the Put Item operation under the Amazondynamodb Connector.
The Put Item operation is used to insert new items to the tables. The Put Item operation parameters are listed here.
- item : A map of attribute name/value pairs, one for each attribute. Only the primary key attributes are required, but you can optionally provide other attribute name-value pairs for the item
- tableName : The name of the table to contain the item.
While invoking the API, the above two parameter values come as user input.
- item : payload.item
- tableName : payload.tableName
Send a response to the user.

Add Respond mediator after the above operation.

Configure a resource for the updatetable operation¶

Navigate into the Connectors pane and select the Update Table operation under the Amazondynamodb Connector.
The Update Table operation is used to update the created tables. The Update Table operation parameters are listed here.
provisionedThroughput : The new provisioned throughput setting for the specified table or index.
- tableName : The name of the table to contain the item.
While invoking the API, the above two parameter values come as user input.
- provisionedThroughput : payload.provisionedThroughput
- tableName : payload.tableName
Send a response to the user.

Add Respond mediator after the above operation.

Configure a resource for the listdetails operation¶

Navigate into the Connectors pane and select the Get Item operation under the Amazondynamodb Connector.
The Get Item operation is used to retrieve inserted items to the tables. The Get Item operation parameters are listed here.
- key : An array of primary key attribute values that define specific items in the table. For each primary key, you must provide all of the key attributes.
- tableName : The name of the table to contain the item.
While invoking the API, the above two parameter values come as user input.
- key : payload.key
- tableName : payload.tableName
Send a response to the user.

Add Respond mediator after the above operation.

Configure a resource for the deletedetails operation¶

Navigate into the Connectors pane and select the deleteItem operation under the Amazondynamodb Connector.
The deleteItem operation is used to remove inserted items from the table. The deleteItem operation parameters are listed here.
- key : An array of primary key attribute values that define specific items in the table. For each primary key, you must provide all of the key attributes.
- tableName : The name of the table to contain the item.
- returnConsumedCapacity : Determines the level of detail about provisioned throughput consumption that is returned in the response.
- returnValues : Use returnValues if you want to get the item attributes as they appeared before they were deleted.
While invoking the API, the above two parameter values (key, tableName) come as user input.
- key : payload.key
- tableName : payload.tableName
- returnConsumedCapacity : TOTAL
- returnValues : ALL_OLD
Send a response to the user.

Add Respond mediator after the above operation.

Configure a resource for the listtable operation¶

Navigate into the Connectors pane and select the listTables operation under the Amazondynamodb Connector.
The listTables operation is used to retrieve information about the created tables. listTables operation parameters listed here.
- exclusiveStartTableName : The first table name that the listTables operation evaluates. Use the value returned for LastEvaluatedTableName.
- limit : The maximum number of table names to retrieve. If this parameter is not specified, the limit is 100.
While invoking the API, the above two parameter values come as user input.
- exclusiveStartTableName : payload.exclusiveStartTableName
- limit : payload.limit
Send a response to the user.

Add Respond mediator after the above operation.

Configure a resource for the deletetable operation¶

Navigate into the Connectors pane and select the deleteTable operation under the Amazondynamodb Connector.
The listTables operation is used to retrieve information about the created tables. The deleteTable operation parameters are listed here.
- limit : The maximum number of table names to retrieve. If this parameter is not specified, the limit is 100.
While invoking the API, the above parameter value comes as user input.
- limit : payload.limit
Send a response to the user.

Add Respond mediator after the above operation.

Now you can switch into the Source view and check the XML configuration files of the created API.

amazonDynamoDBAPI.xml

<?xml version="1.0" encoding="UTF-8"?>
<api xmlns="http://ws.apache.org/ns/synapse" context="/resources" name="amazonDynamoDBAPI">
   <resource methods="POST" url-mapping="/addtable">
      <inSequence>
            <amazondynamodb.createTable configKey="AWS_Con">
               <attributeDefinitions>{${payload.attributeDefinitions}}</attributeDefinitions>
               <tableName>{${payload.tableName}}</tableName>
               <keySchema>{${payload.keySchema}}</keySchema>
               <localSecondaryIndexes>{${payload.localSecondaryIndexes}}</localSecondaryIndexes>
               <globalSecondaryIndexes></globalSecondaryIndexes>
               <StreamSpecification></StreamSpecification>
               <provisionedThroughput>{${payload.provisionedThroughput}}</provisionedThroughput>
               <responseVariable>amazondynamodb_createTable_630</responseVariable>
               <overwriteBody>true</overwriteBody>
            </amazondynamodb.createTable>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/insertdetails">
      <inSequence>
         <amazondynamodb.putItem configKey="AWS_Con">
         <item >{${payload.item}}</item>
         <tableName >{${payload.tableName}}</tableName>
         <conditionalOperator ></conditionalOperator>
         <conditionExpression ></conditionExpression>
         <expected ></expected>
         <expressionAttributeNames ></expressionAttributeNames>
         <expressionAttributeValues ></expressionAttributeValues>
         <returnConsumedCapacity ></returnConsumedCapacity>
         <returnItemCollectionMetrics ></returnItemCollectionMetrics>
         <returnValues ></returnValues>
         <responseVariable >amazondynamodb_putItem_997</responseVariable>
         <overwriteBody >true</overwriteBody>
            </amazondynamodb.putItem>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/deletedetails">
      <inSequence>
            <amazondynamodb.deleteItem configKey="AWS_Con">
               <key>{${payload.key}}</key>
               <tableName>{${payload.tableName}}</tableName>
               <conditionalOperator></conditionalOperator>
               <conditionExpression></conditionExpression>
               <expected></expected>
               <expressionAttributeNames></expressionAttributeNames>
               <expressionAttributeValues></expressionAttributeValues>
               <returnConsumedCapacity>TOTAL</returnConsumedCapacity>
               <returnItemCollectionMetrics></returnItemCollectionMetrics>
               <returnValues>ALL_OLD</returnValues>
               <responseVariable>amazondynamodb_deleteItem_1</responseVariable>
               <overwriteBody>true</overwriteBody>
            </amazondynamodb.deleteItem>

            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/listdetails">
      <inSequence>
            <amazondynamodb.getItem configKey="AWS_Con">
               <key>{${payload.key}}</key>
               <tableName>{${payload.tableName}}</tableName>
               <attributesToGet></attributesToGet>
               <consistentRead></consistentRead>
               <expressionAttributeNames></expressionAttributeNames>
               <projectionExpression></projectionExpression>
               <returnConsumedCapacity></returnConsumedCapacity>
               <responseVariable>amazondynamodb_getItem_1</responseVariable>
               <overwriteBody>true</overwriteBody>
            </amazondynamodb.getItem>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/listtable">
      <inSequence>
            <amazondynamodb.listTables configKey="AWS_Con">
               <exclusiveStartTableName>{${payload.exclusiveStartTableName}}</exclusiveStartTableName>
               <limit>{${payload.limit}}</limit>
               <responseVariable>amazondynamodb_listTables_1</responseVariable>
               <overwriteBody>true</overwriteBody>
            </amazondynamodb.listTables>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/updatetable">
      <inSequence>
            <amazondynamodb.updateTable configKey="AWS_Con">
               <tableName>{${payload.tableName}}</tableName>
               <attributeDefinitions></attributeDefinitions>
               <globalSecondaryIndexUpdates></globalSecondaryIndexUpdates>
               <StreamSpecification></StreamSpecification>
               <provisionedThroughput>{${payload.provisionedThroughput}}</provisionedThroughput>
               <responseVariable>amazondynamodb_updateTable_1</responseVariable>
               <overwriteBody>true</overwriteBody>
            </amazondynamodb.updateTable>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
   <resource methods="POST" url-mapping="/deletetable">
      <inSequence>
         <amazondynamodb.deleteTable configKey="AWS_Con">
            <tableName >{${payload.tableName}}</tableName>
            <responseVariable >amazondynamodb_deleteTable_237</responseVariable>
            <overwriteBody >true</overwriteBody>
            </amazondynamodb.deleteTable>
            <respond/>
      </inSequence>
      <faultSequence/>
   </resource>
</api>

Get the project¶

You can download the ZIP file and extract the contents to get the project code.

Deployment¶

To deploy and run the project, refer to the Build and Run guide.

Test¶

Invoke the API resources as shown below using the MI VSCode Extension.

Runtime services

Create a new table in the Amazon DynamoDB with the specified table name to store employee details. Invoke addtable resource with the following payload.

Sample request

{
   "attributeDefinitions":[
      {
         "AttributeName":"employee_id",
         "AttributeType":"S"
      },
      {
         "AttributeName":"name",
         "AttributeType":"S"
      },
      {
         "AttributeName":"department",
         "AttributeType":"S"
      }
   ],
   "tableName":"Employee_Details",
   "keySchema":[
      {
         "AttributeName":"employee_id",
         "KeyType":"HASH"
      },
      {
         "AttributeName":"name",
         "KeyType":"RANGE"
      }
   ],
   "localSecondaryIndexes":[
      {
         "IndexName":"department",
         "KeySchema":[
            {
               "AttributeName":"employee_id",
               "KeyType":"HASH"
            },
            {
               "AttributeName":"department",
               "KeyType":"RANGE"
            }
         ],
         "Projection":{
            "ProjectionType":"KEYS_ONLY"
         }
      }
   ],
   "provisionedThroughput":{
      "ReadCapacityUnits":5,
      "WriteCapacityUnits":5
   }
}

Expected Response

{
   "TableDescription":{
      "AttributeDefinitions":[
         {
            "AttributeName":"department",
            "AttributeType":"S"
         },
         {
            "AttributeName":"employee_id",
            "AttributeType":"S"
         },
         {
            "AttributeName":"name",
            "AttributeType":"S"
         }
      ],
      "CreationDateTime":1590068547.564,
      "ItemCount":0,
      "KeySchema":[
         {
            "AttributeName":"employee_id",
            "KeyType":"HASH"
         },
         {
            "AttributeName":"name",
            "KeyType":"RANGE"
         }
      ],
      "LocalSecondaryIndexes":[
         {
            "IndexArn":"arn:aws:dynamodb:us-east-2:610968236798:table/Employee_Details/index/department",
            "IndexName":"department",
            "IndexSizeBytes":0,
            "ItemCount":0,
            "KeySchema":[
               {
                  "AttributeName":"employee_id",
                  "KeyType":"HASH"
               },
               {
                  "AttributeName":"department",
                  "KeyType":"RANGE"
               }
            ],
            "Projection":{
               "ProjectionType":"KEYS_ONLY"
            }
         }
      ],
      "ProvisionedThroughput":{
         "NumberOfDecreasesToday":0,
         "ReadCapacityUnits":5,
         "WriteCapacityUnits":5
      },
      "TableArn":"arn:aws:dynamodb:us-east-2:610968236798:table/Employee_Details",
      "TableId":"10520308-ae1e-4742-b9d4-fc6aae67191e",
      "TableName":"Employee_Details",
      "TableSizeBytes":0,
      "TableStatus":"CREATING"
   }
}

2. Insert the employee details (items) into the specified table. Invoke insertdetails resource with the following payload.

Sample request

{
   "tableName":"Employee_Details",
   "item":{
      "employee_id":{
         "S":"001"
      },
      "name":{
         "S":"Jhone Fedrick"
      },
      "department":{
         "S":"Engineering"
      }
   }
}

Expected Response

{}

3. Update the specified table. Invoke updatetable resource with the following payload.

Sample request

{
   "tableName":"Employee_Details",
   "provisionedThroughput":{
      "ReadCapacityUnits":12,
      "WriteCapacityUnits":12
   }
}

Expected Response

{
   "TableDescription":{
      "AttributeDefinitions":[
         {
            "AttributeName":"department",
            "AttributeType":"S"
         },
         {
            "AttributeName":"employee_id",
            "AttributeType":"S"
         },
         {
            "AttributeName":"name",
            "AttributeType":"S"
         }
      ],
      "CreationDateTime":1590068547.564,
      "ItemCount":0,
      "KeySchema":[
         {
            "AttributeName":"employee_id",
            "KeyType":"HASH"
         },
         {
            "AttributeName":"name",
            "KeyType":"RANGE"
         }
      ],
      "LocalSecondaryIndexes":[
         {
            "IndexArn":"arn:aws:dynamodb:us-east-2:610968236798:table/Employee_Details/index/department",
            "IndexName":"department",
            "IndexSizeBytes":0,
            "ItemCount":0,
            "KeySchema":[
               {
                  "AttributeName":"employee_id",
                  "KeyType":"HASH"
               },
               {
                  "AttributeName":"department",
                  "KeyType":"RANGE"
               }
            ],
            "Projection":{
               "ProjectionType":"KEYS_ONLY"
            }
         }
      ],
      "ProvisionedThroughput":{
         "LastIncreaseDateTime":1590071461.81,
         "NumberOfDecreasesToday":0,
         "ReadCapacityUnits":5,
         "WriteCapacityUnits":5
      },
      "TableArn":"arn:aws:dynamodb:us-east-2:610968236798:table/Employee_Details",
      "TableId":"10520308-ae1e-4742-b9d4-fc6aae67191e",
      "TableName":"Employee_Details",
      "TableSizeBytes":0,
      "TableStatus":"UPDATING"
   }
}

4. Retrieve information about the added employee details (items). Invoke listdetails resource with the following payload.

Sample request

{
   "tableName":"Employee_Details",
   "key":{
      "employee_id":{
         "S":"001"
      },
      "name":{
         "S":"Jhone Fedrick"
      }
   }
}

Expected Response

{
   "Item":{
      "department":{
         "S":"Engineering"
      },
      "name":{
         "S":"Jhone Fedrick"
      },
      "employee_id":{}
   }
}

5. Remove added employee details from the specified table (items). Invoke deletedetails resource with the following payload.

Sample request

{
   "tableName":"Employee_Details",
   "key":{
      "employee_id":{
         "S":"001"
      },
      "name":{
         "S":"Jhone Fedrick"
      }
   }
}

Expected Response

{
   "Attributes":{
      "department":{
         "S":"Engineering"
      },
      "name":{
         "S":"Jhone Fedrick"
      },
      "employee_id":{
         "S":"001"
      }
   },
   "ConsumedCapacity":{
      "CapacityUnits":2,
      "TableName":"Employee_Details"
   }
}

6. Retrieve information about the created tables. Invoke listtable resource with the following payload.

Sample request

{
   "exclusiveStartTableName":"Employee_Details",
   "limit":4
}

Expected Response

{
   "LastEvaluatedTableName":"TTestMyTablehread",
   "TableNames":[
      "Results",
      "Results1",
      "Results123",
      "TTestMyTablehread"
   ]
}

Remove the created table in the Amazon DynamoDB. Invoke deletetable resource with the following payload.

Sample request

{
 "tableName":"Employee_Details"
}

Expected Response

{
   "TableDescription":{
      "ItemCount":0,
      "ProvisionedThroughput":{
         "NumberOfDecreasesToday":0,
         "ReadCapacityUnits":12,
         "WriteCapacityUnits":12
      },
      "TableArn":"arn:aws:dynamodb:us-east-2:610968236798:table/Employee_Details",
      "TableId":"10520308-ae1e-4742-b9d4-fc6aae67191e",
      "TableName":"Employee_Details",
      "TableSizeBytes":0,
      "TableStatus":"DELETING"
   }
}
