File Connector Example¶

File Connector can be used to perform operations in the local file system as well as in a remote server such as FTP and SFTP.

What you'll build¶

This example explains how to use File Connector to create a file in the local file system and read the particular file. The user sends a payload specifying which content is to be written to the file. Based on that content, a file is created in the specified location. Then the content of the file can be read as an HTTP response by invoking the other API resource upon the existence of the file. Similarly, the same example can be configured to communicate with a remote file system (i.e FTP server) easily. The example also uses some other WSO2 mediators to manipulate messages.

It will have two HTTP API resources, which are create and read.

/create: The user sends the request payload which includes the location where the file needs to be saved and the content needs to be added to the file. This request is sent to the integration runtime by invoking the FileConnector API. It saves the file in the specified location with the relevant content.
/read: The user sends the request payload, which includes the location of the file that needs to be read. This request is sent to the integration runtime where the FileConnector API resides. Once the API is invoked, it first checks if the file exists in the specified location. If it exists, the content is read and response is sent to the user. If the file does not exist, it sends an error response to the user.

If you do not want to configure this yourself, you can simply get the project and run it.

Set up the integration project¶

Follow the steps in the create integration project guide to set up the Integration Project.

Create the integration logic to create a file¶

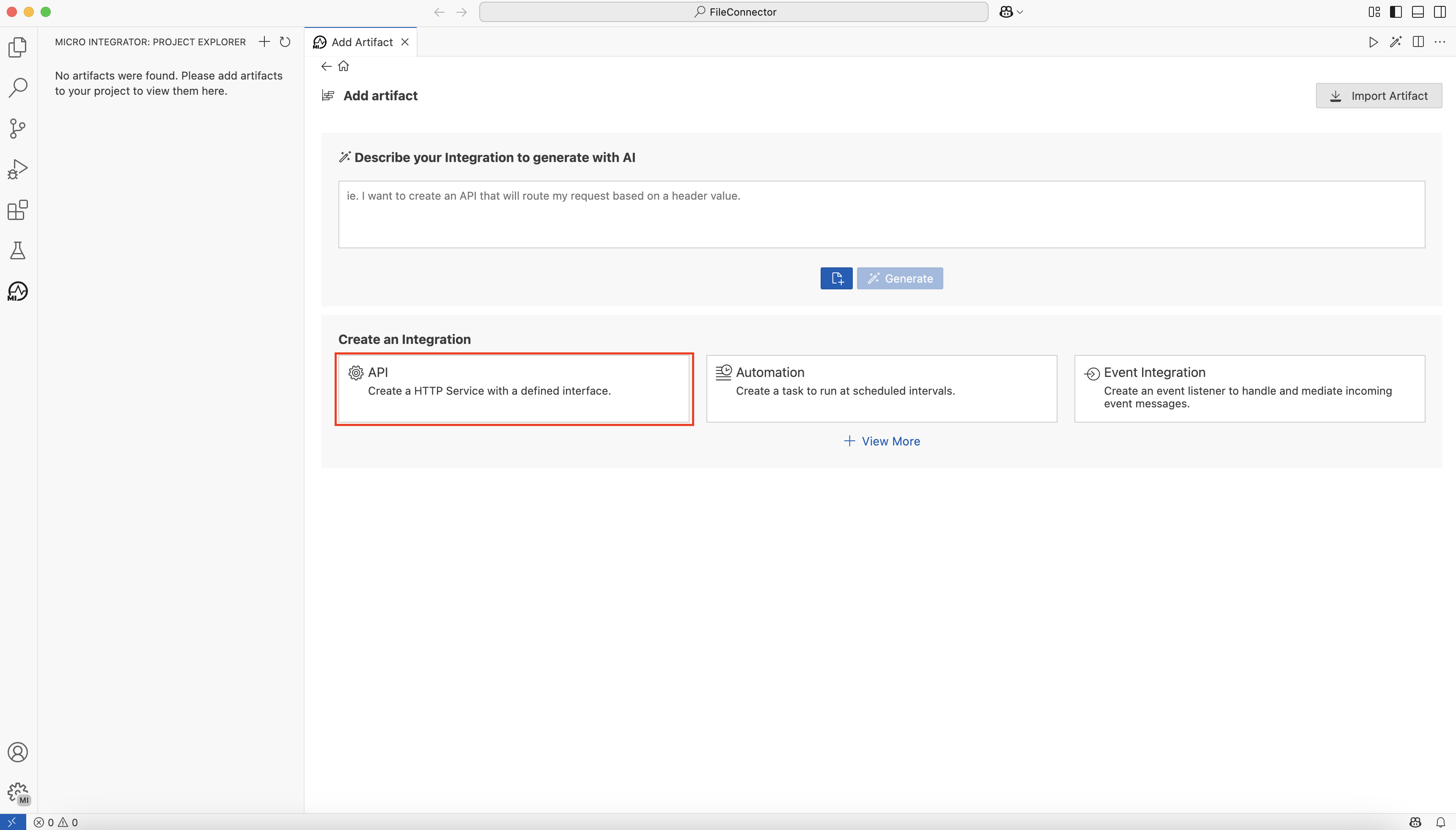

Under the Create an integration section, select API to create a new REST API.

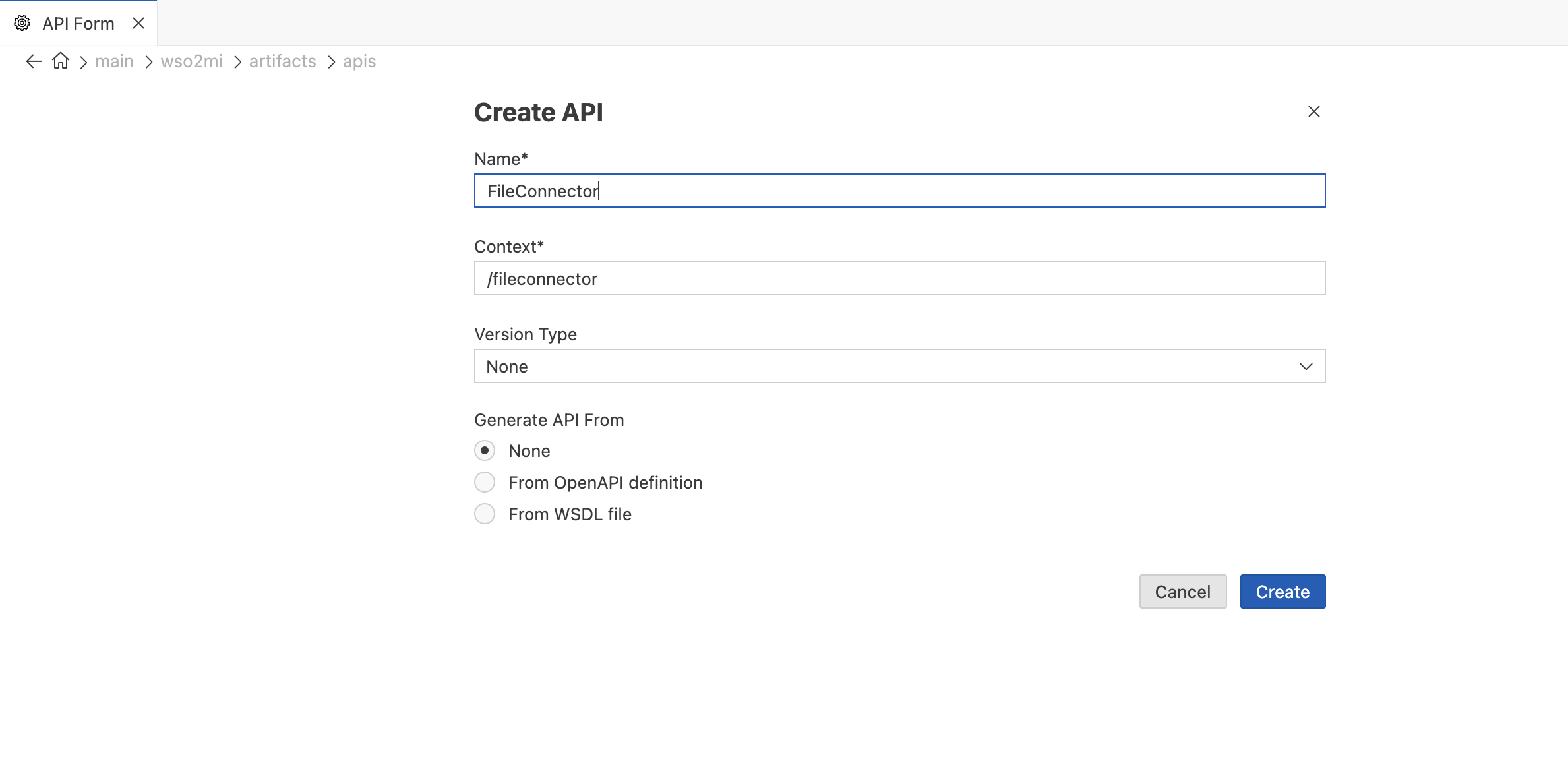

Provide the API name as FileConnector and the API context as /fileConnector and click on Create.

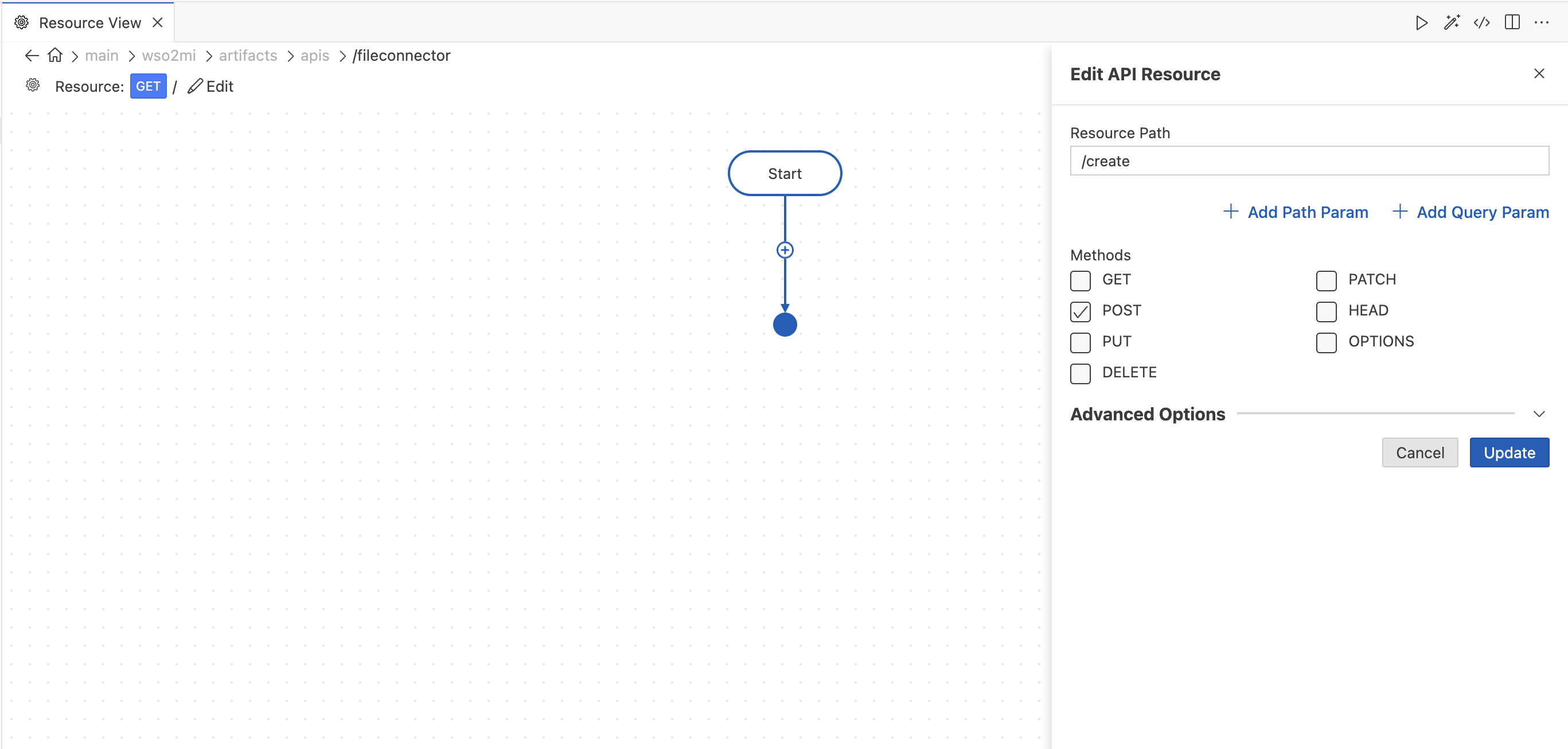

Select the newly created fileConnector API and Click the Edit icon to change the URI template API method.

Update the value of URI template to /create and value of method to Post.

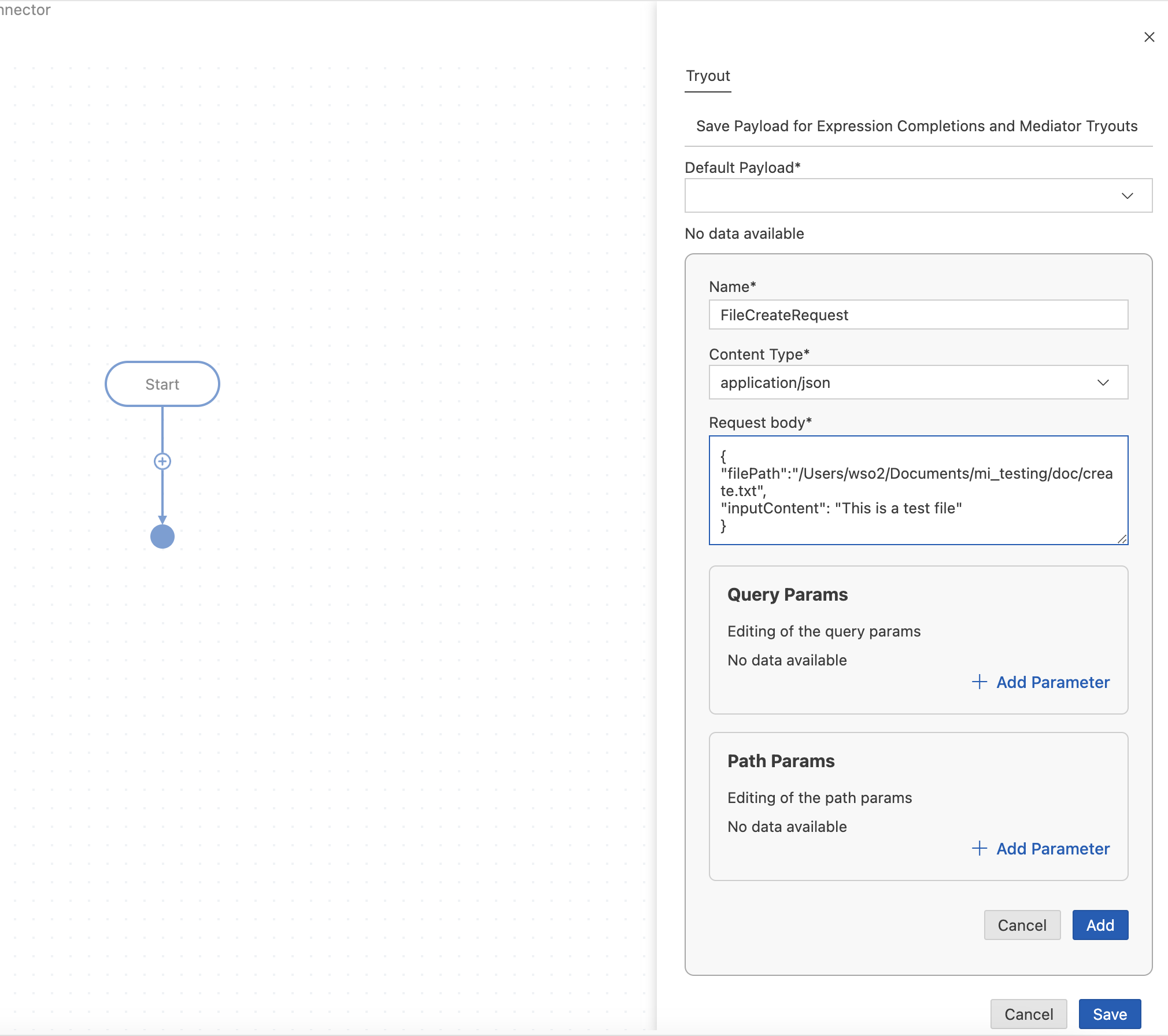

First, Let's create a sample payload request to send API. Click on the Start node and select the Add Request option. This will create a new example payload request.

In this operation, we are going to receive the following inputs from the user.
- filePath - Location where the file needs to be created.
- inputContent - Content that needs to be added to the file.
Therefore, provide the following JSON payload to the request.
```
{
    "filePath": "/Users/wso2/Documents/mi_testing/doc/create.txt",
    "inputContent": "This is a test file"
}
```

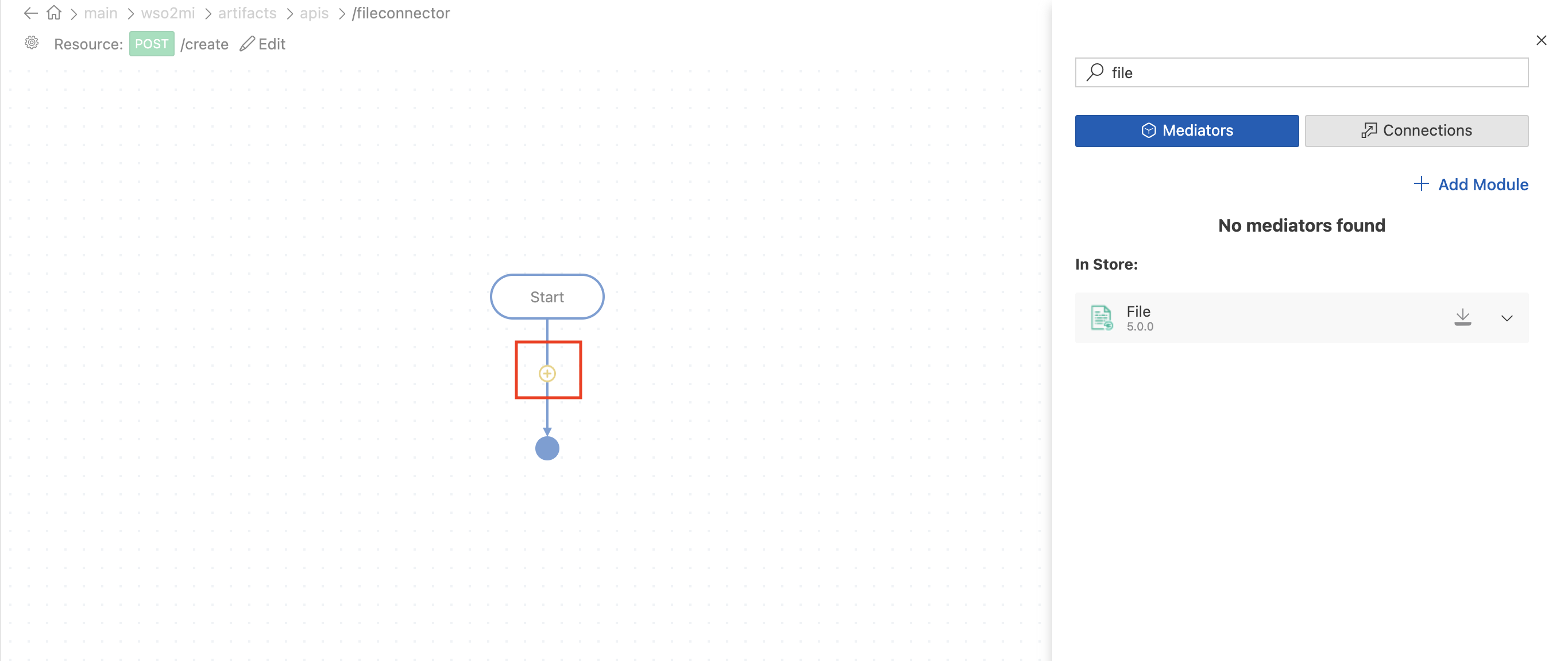

We need to add the File Connector to the integration project. Click on the Add icon and search for the File connector. Select the File connector and click on the Download button.

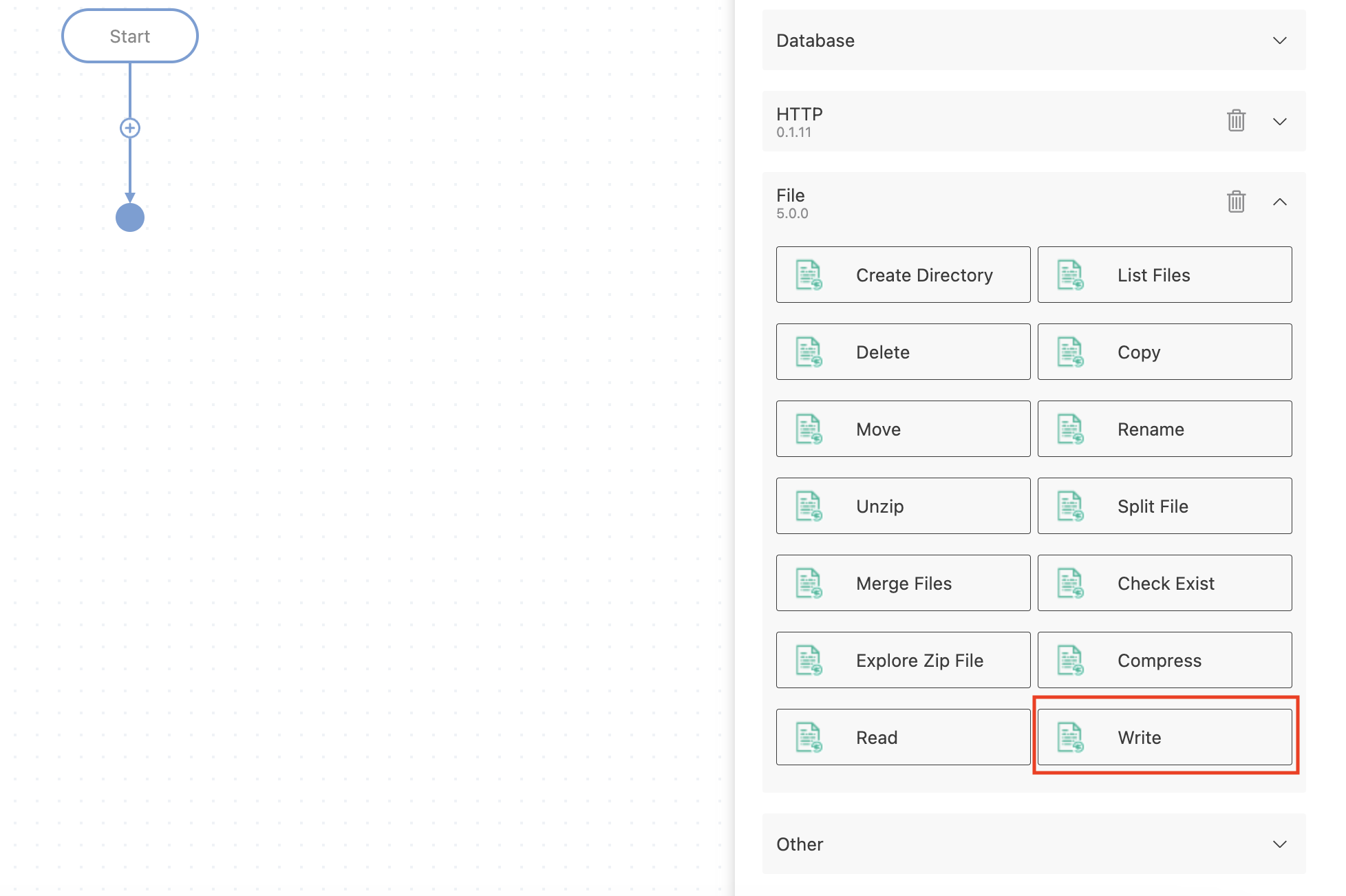

To add the write operation under the API, click on Connectors, select the file connector, and choose the write operation.
Click on Add new connection to create the new local file connection.

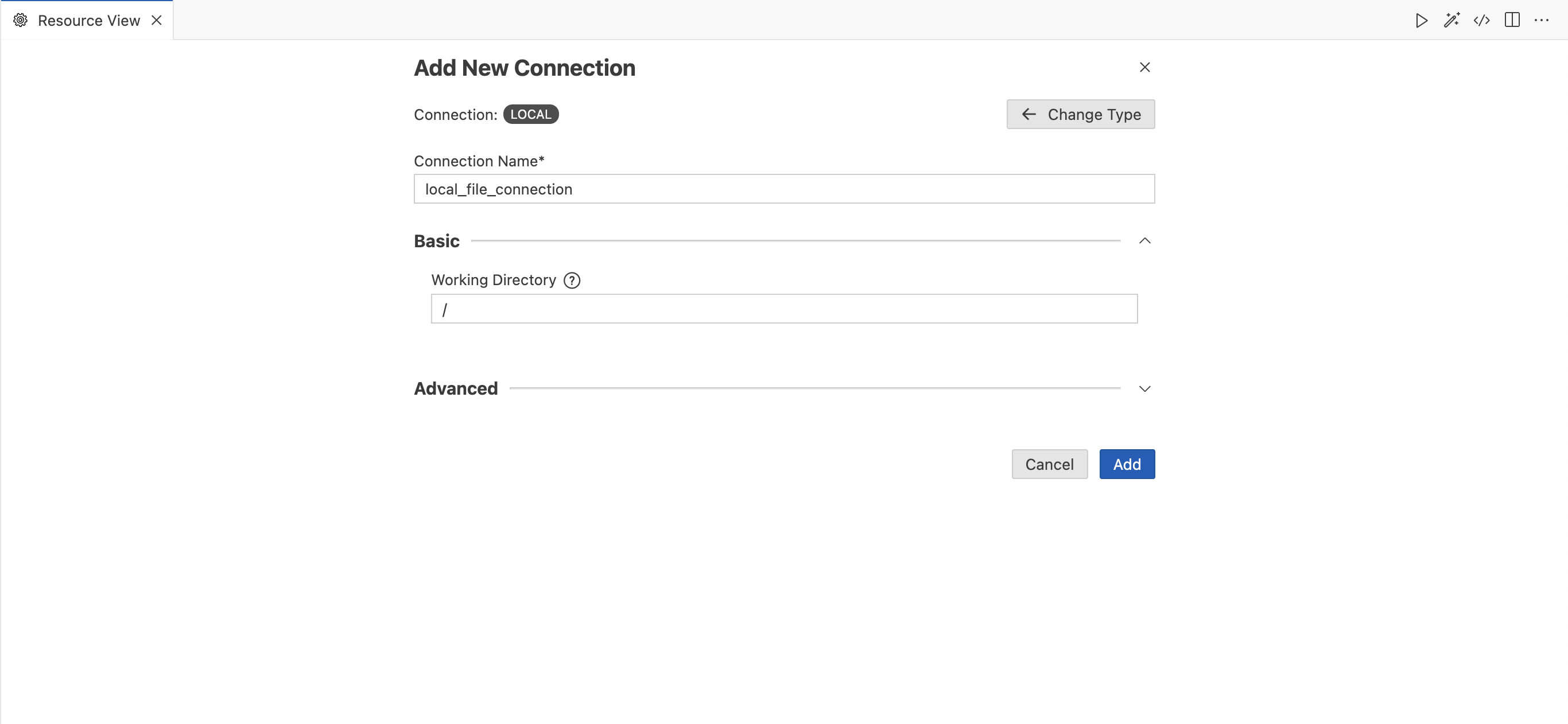

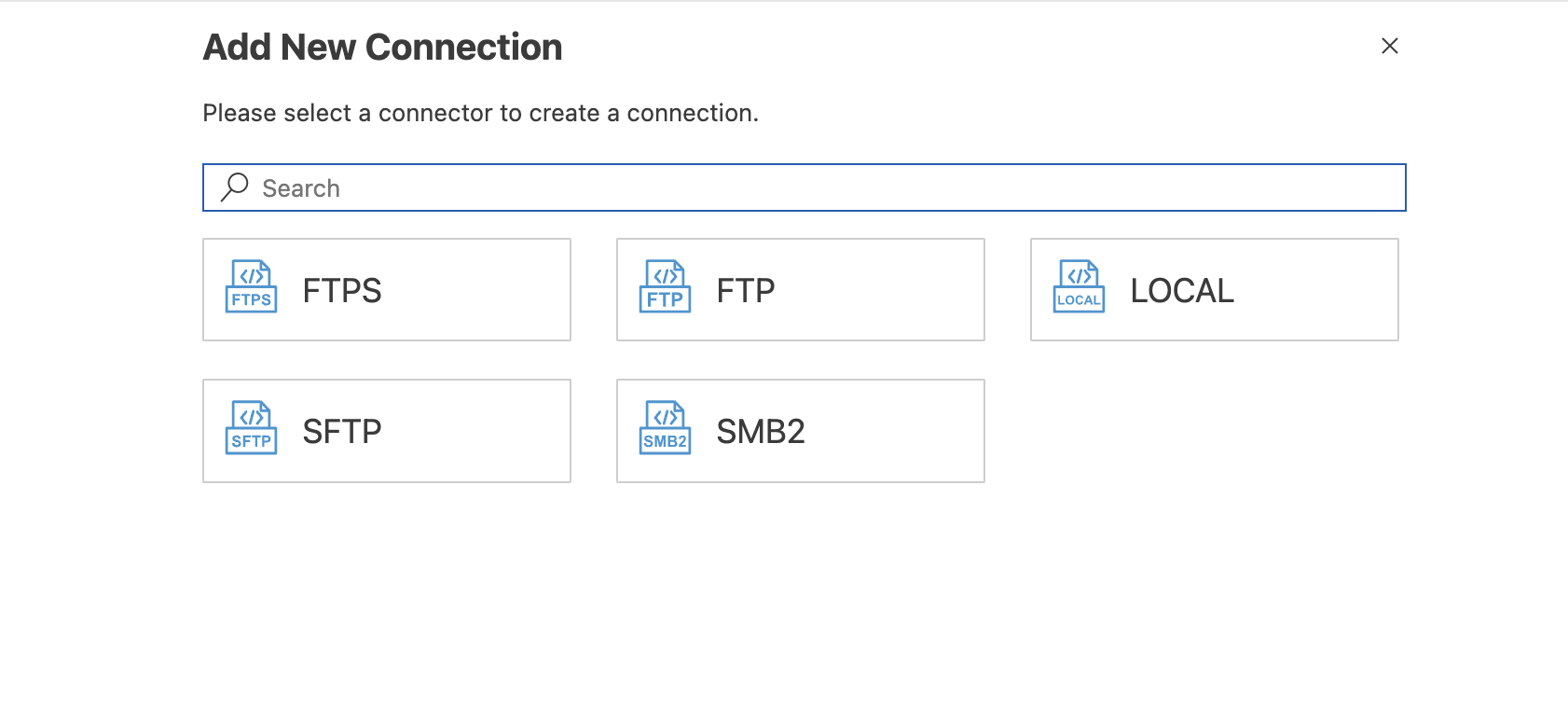

Select Local as the connection type and provide the connection name as local_file_connection.

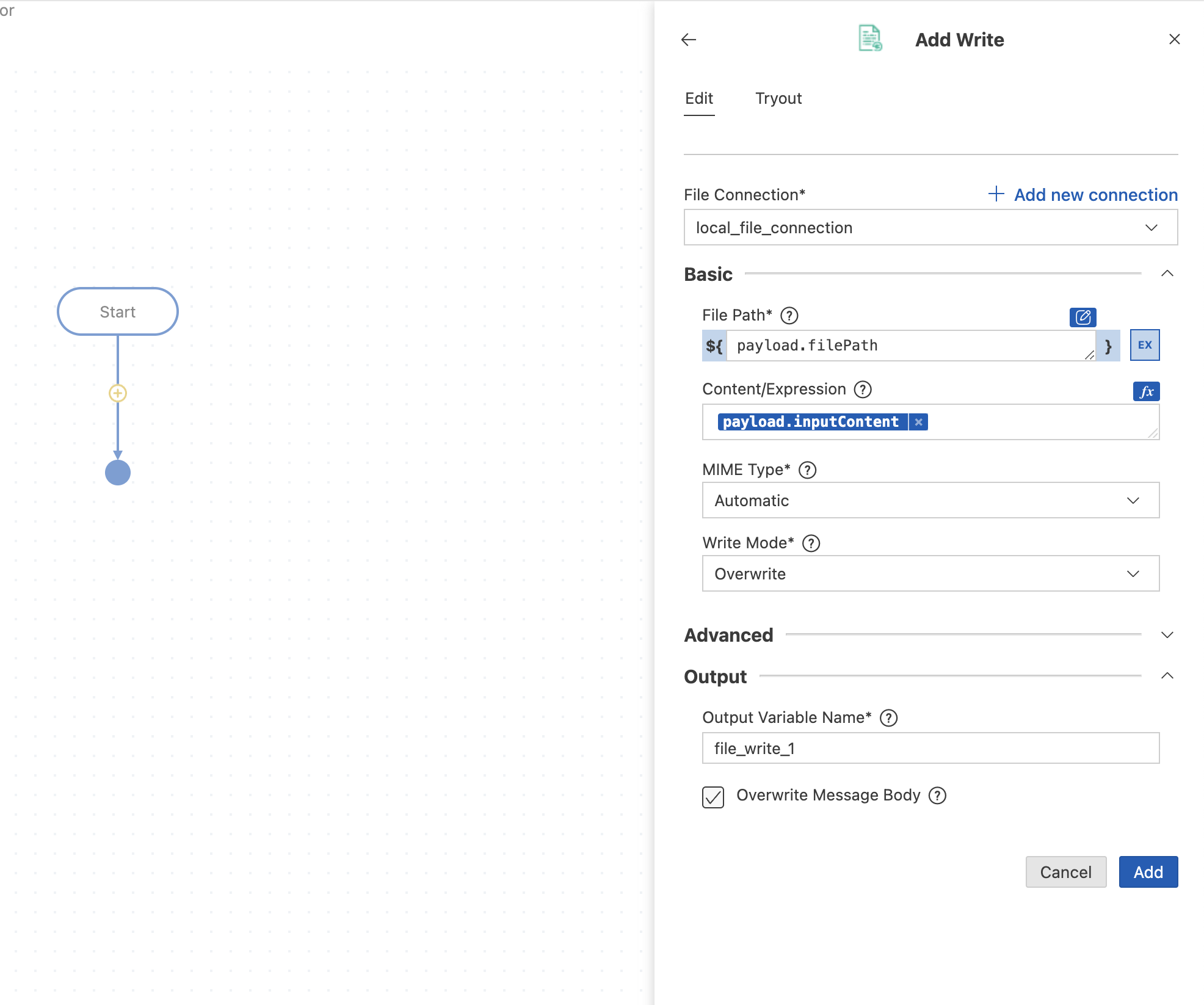

After creating the local file connection, update the values for file path and Content for the write operation.

Since we have already added a sample payload request in the Start node, we can use the Expression editor to get the values from the payload.

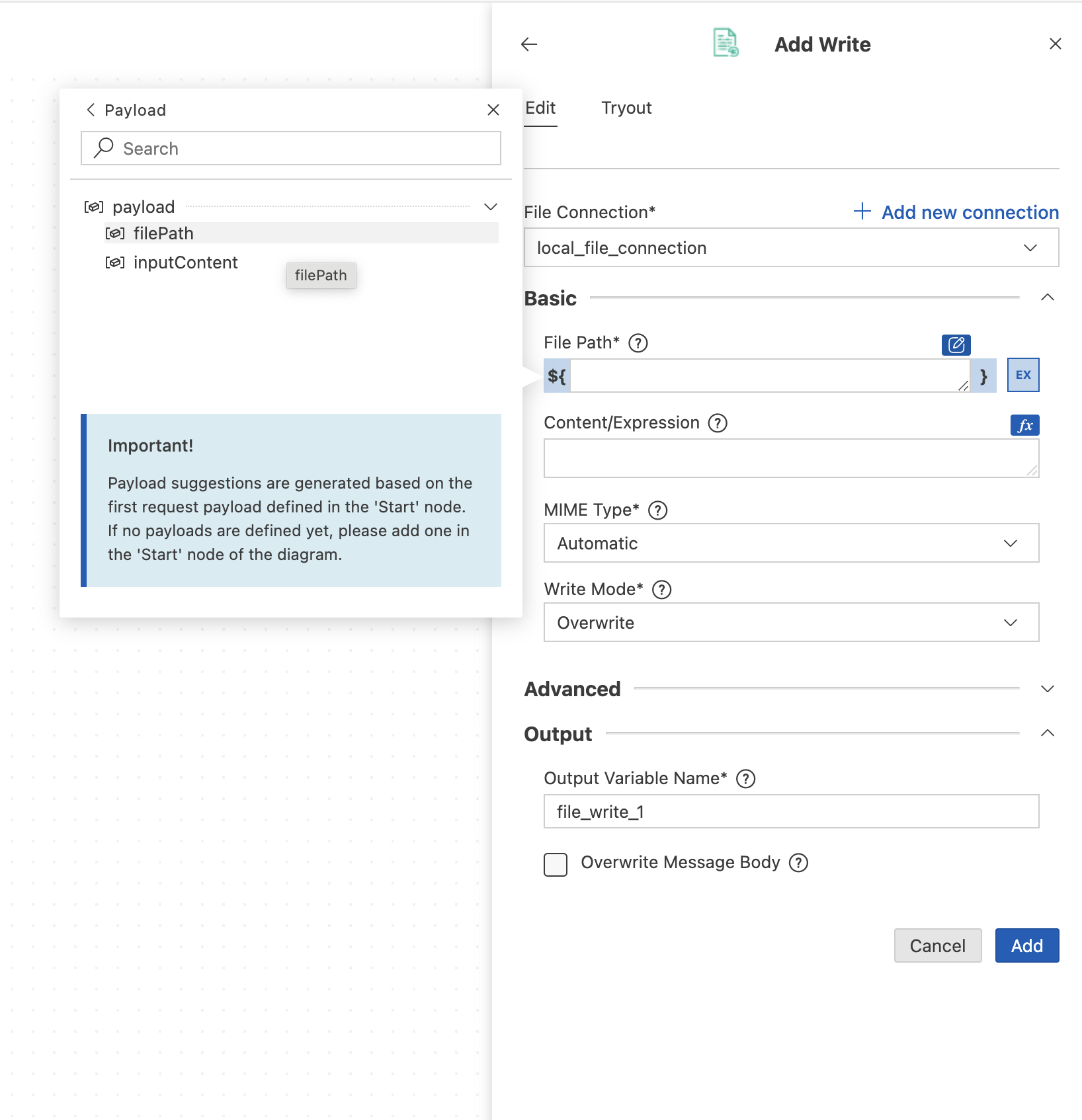

Click on the Expression icon and select the Payload option. Under the Payload option, select the filePath.

Similarly, select the inputContent for the Content field.

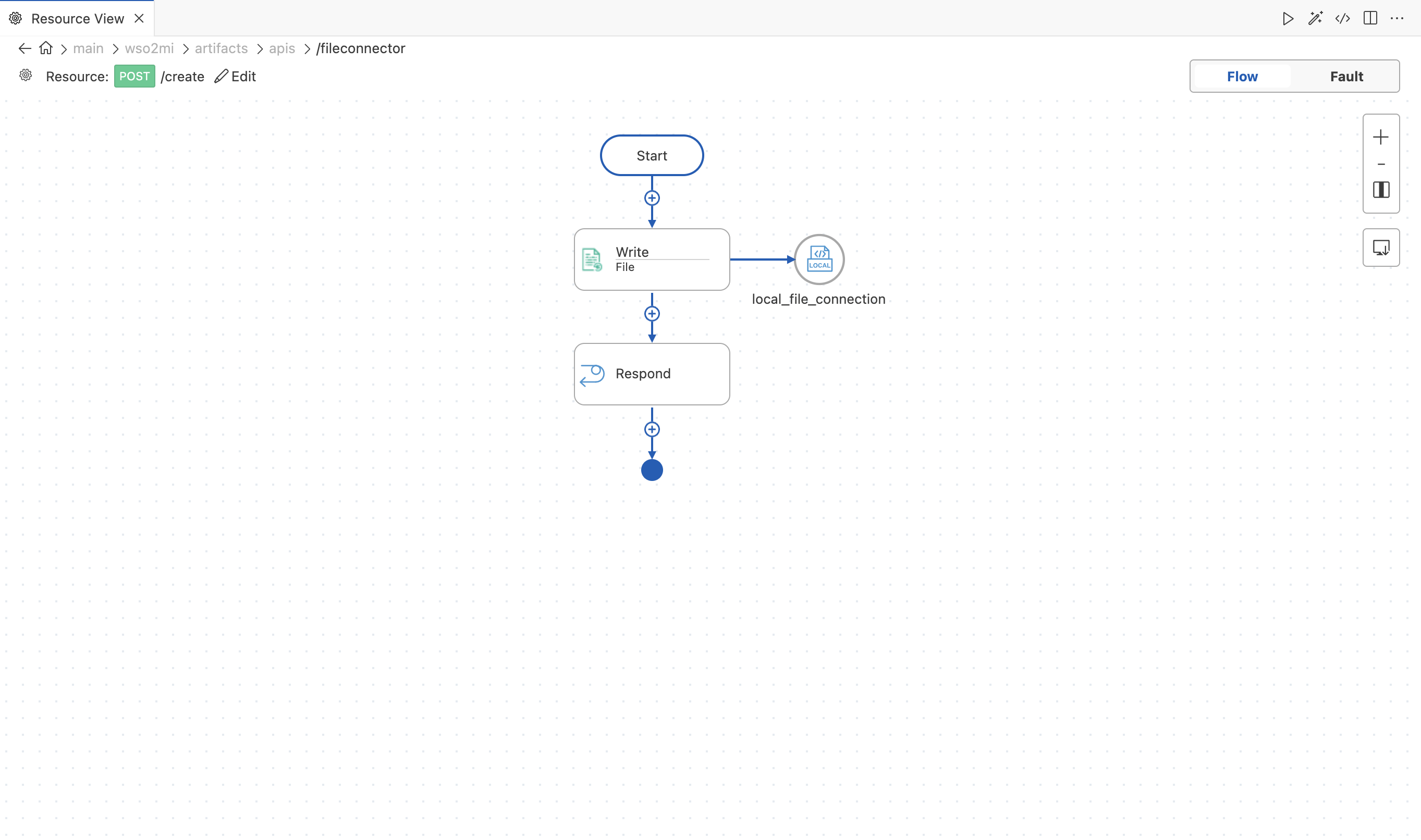

Add the Respond Mediator to respond to the response from sending the email as shown below.

Adding the respond mediator.

Source view of the implemented resource

    <resource methods="POST" uri-template="/create">
    <inSequence>
        <file.write configKey="local_file_connection">
            <filePath>{${payload.filePath}}</filePath>
            <contentOrExpression>${payload.inputContent}</contentOrExpression>
            <encoding>UTF-8</encoding>
            <mimeType>Automatic</mimeType>
            <compress>false</compress>
            <writeMode>Overwrite</writeMode>
            <enableStreaming>false</enableStreaming>
            <appendNewLine>false</appendNewLine>
            <enableLock>false</enableLock>
            <updateLastModified>true</updateLastModified>
            <maxRetries>0</maxRetries>
            <retryDelay>0</retryDelay>
            <diskShareAccessMask>MAXIMUM_ALLOWED</diskShareAccessMask>
            <responseVariable>file_write_1</responseVariable>
            <overwriteBody>true</overwriteBody>
        </file.write>
        <respond/>
    </inSequence>
    <faultSequence>
    </faultSequence>
</resource>

Create the integration logic to read a file¶

Click on + Resource to add new resource.
Use the URL template as /read. The method will be POST.
Implement the following API as described above.

Source view

    <resource methods="POST" uri-template="/read">
        <inSequence>
            <file.checkExist configKey="local_file_connection">
                <path>{${payload.filePath}}</path>
                <diskShareAccessMask>MAXIMUM_ALLOWED</diskShareAccessMask>
                <responseVariable>file_checkExist_1</responseVariable>
                <overwriteBody>false</overwriteBody>
            </file.checkExist>
            <filter xpath="${vars.file_checkExist_1.payload.fileExists}">
                <then>
                    <file.read configKey="local_file_connection">
                        <path>{${payload.filePath}}</path>
                        <filePattern></filePattern>
                        <readMode>Complete File</readMode>
                        <contentType></contentType>
                        <encoding>UTF-8</encoding>
                        <enableStreaming>false</enableStreaming>
                        <enableLock>false</enableLock>
                        <maxRetries>0</maxRetries>
                        <retryDelay>0</retryDelay>
                        <diskShareAccessMask>MAXIMUM_ALLOWED</diskShareAccessMask>
                        <responseVariable>file_read_1</responseVariable>
                        <overwriteBody>true</overwriteBody>
                    </file.read>
                </then>
                <else>
                    <payloadFactory media-type="json" template-type="default">
                        <format>{"message" : "File ${payload.filePath} does not exist."}</format>
                    </payloadFactory>
                    <property name="HTTP_SC" scope="axis2" type="STRING" value="404"/>
                </else>
            </filter>
            <respond/>
        </inSequence>
        <faultSequence>
        </faultSequence>
    </resource>

Get the project¶

You can download the ZIP file and extract the contents to get the project code.

Deployment¶

To deploy and run the project, refer to the build and run guide.

You can further refer to the application deployed through the CLI tool. See the instructions on managing integrations from the CLI.

Test¶

File create operation¶

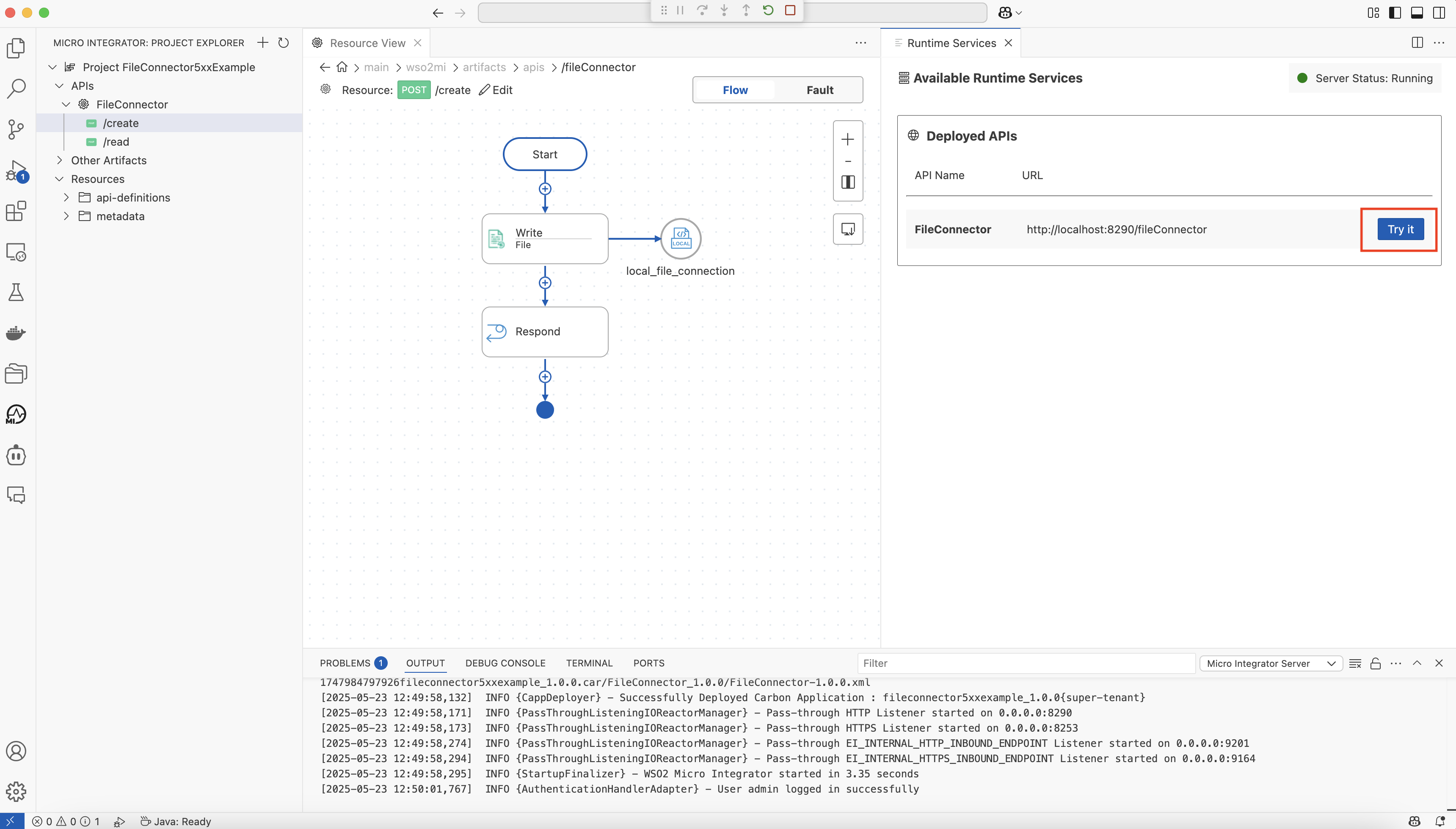

Once the Runtime Services interface is open, select the FileConnector, and click the Try It button.

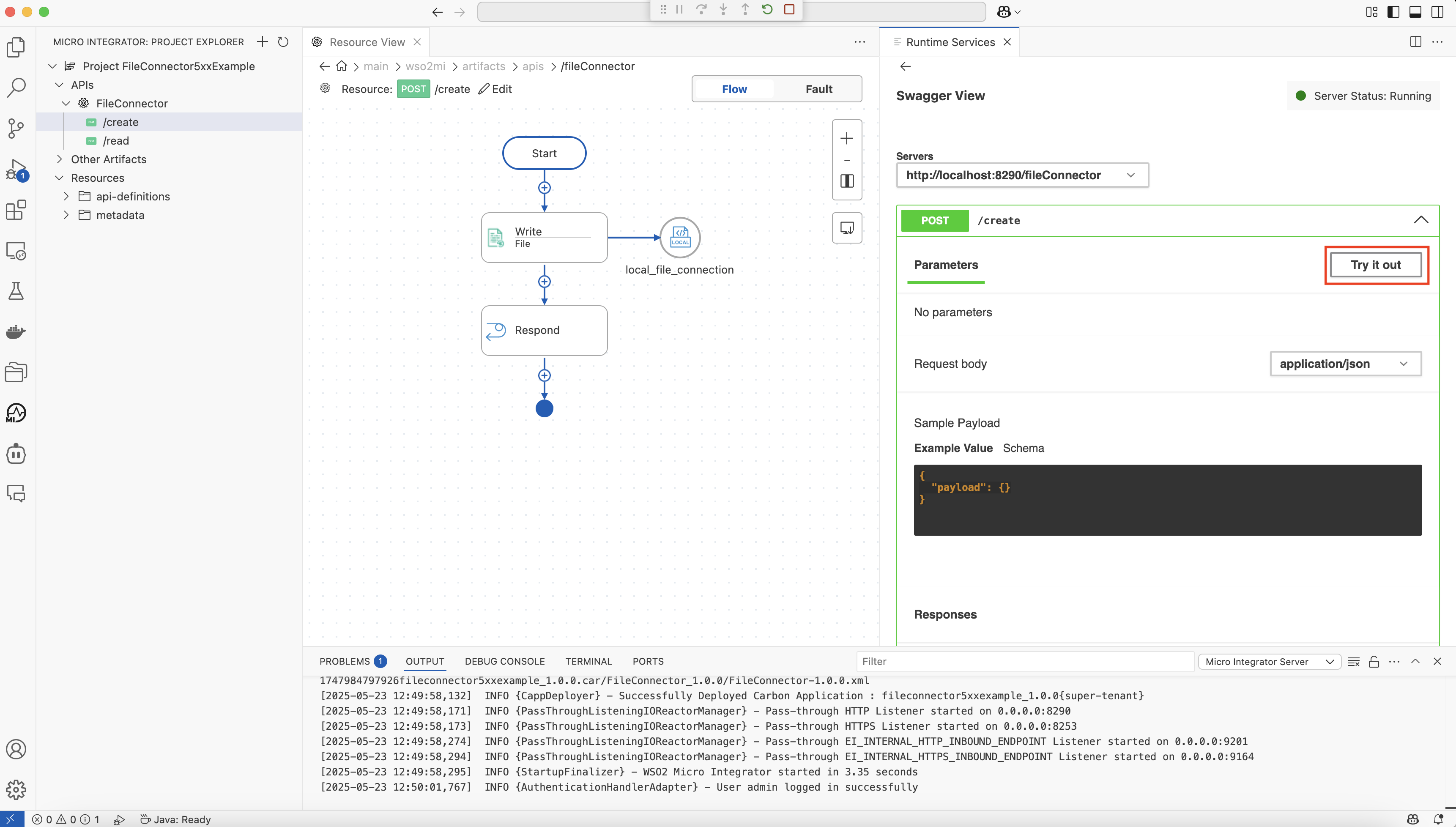

Select the /create resource and click Try it Out to test the API.

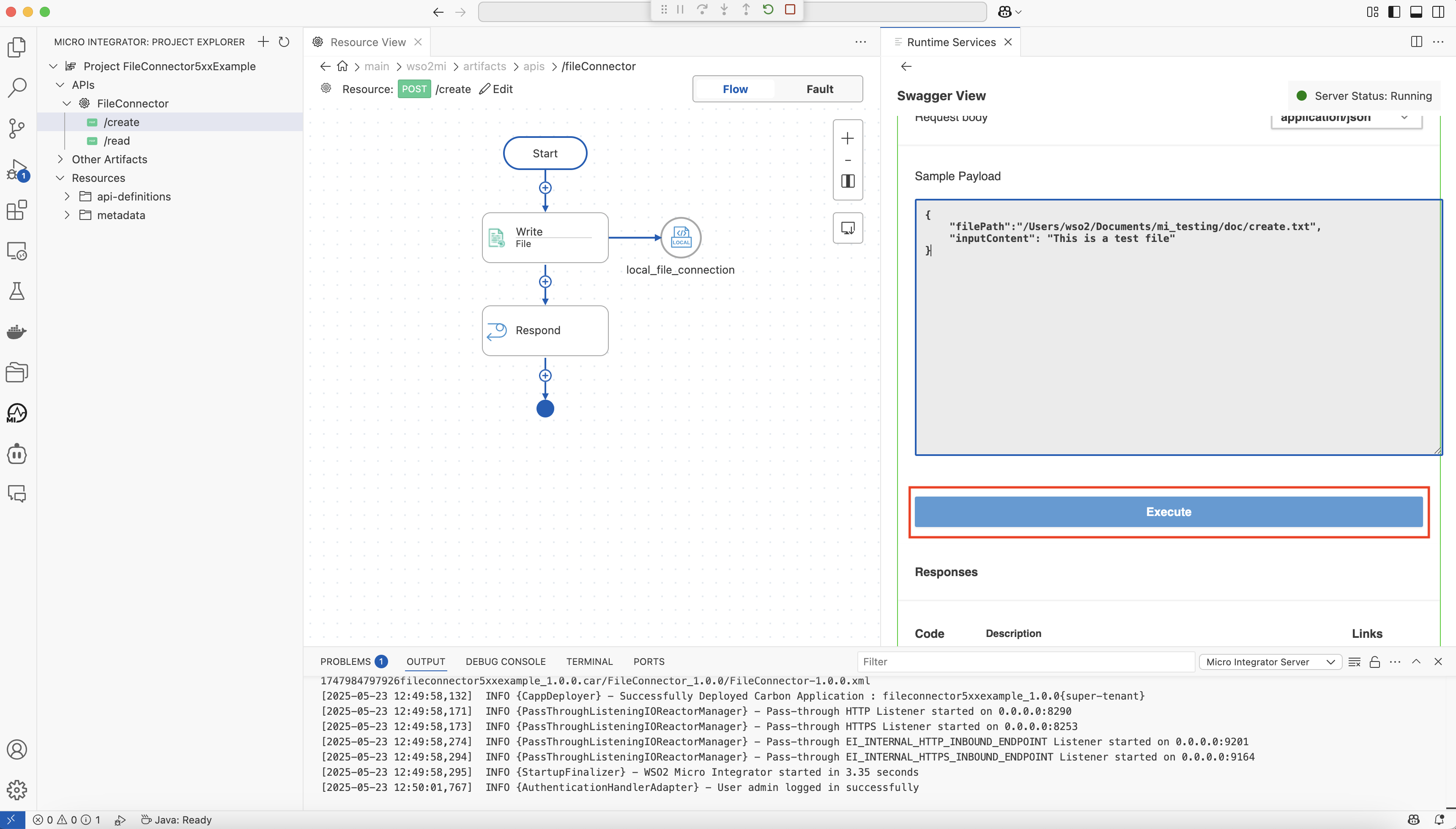

Provide a JSON payload and click the Execute button to invoke the API. You may use the following sample payload to test the API. Make sure to change the file path to a valid location in your system.
```
{
    "filePath":"/Users/wso2/Documents/mi_testing/doc/create.txt",
    "inputContent": "This is a test file"
}
```
Check the success response received from the server, and verify that the file should be created in the specified location in the above payload.

File read operation¶

Select the /read resource and click Try it Out to test the API.
Provide a JSON payload and click the Execute button to invoke the API. You may use the following sample payload to test the API. Make sure to change the file path to a valid location in your system.
```
{
    "filePath":"/Users/wso2/Documents/mi_testing/doc/create.txt"
}
```
Verify the content received in the response.
```
This is a test file.
```

What's next¶

To customize this example for your own scenario, see File Connector Reference Guide documentation for all operation details of the connector.
